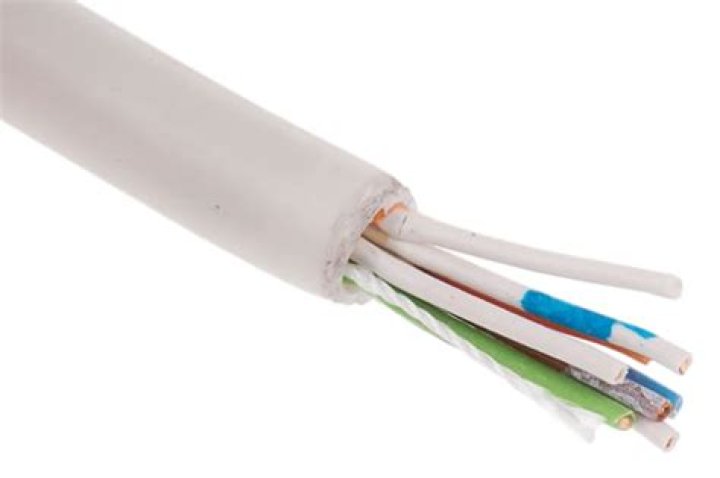

Most telephone wire are one or more twisted pairs of copper wire. The most common type is the 4-strand (2 twisted pair). This consists of red and green wires, which makes a pair, and yellow and black wires, which makes the other pair. One telephone wire line needs only two wires.

What are the types of telephone cable?

1. Coaxial cable. One of the most common telephone cables is called the coaxial cable. …
2. Twisted pair cable. …
3. Fiber optic cables. …
4. Jelly-filled telecom cable. …
5. Ribbon cable.

What is difference between RJ11 and RJ12?

RJ12 is the most common, being used on flat line cords that connect the base of a telephone to the wall. RJ11 is an older version of RJ12, and they are the same size. The difference is that RJ11 uses four internal wires (called conductors) while RJ12 uses six.

Are phone cords universal?

The phone handset cord is universally compatible with all telephone manufacturers, such as AT&T, Cisco, NEC, Rolm, ITT, & Tie and so on. It is used between handset and telephone, not from telephone to wall jack.

What are the 4 wires in a phone line?

In a typical home, the telephone cables connecting your phones within you home contain four wires… red, green, yellow and black. They are used in pairs for each phone line you have. Repairmen in fact refer to the wires in terms of “pairs”, so technically a standard four wire telephone line has two pairs.

What is the best telephone cable?

• Power Gear Modular Jack Telephone Line Cord, 15-FT.
• SHONCO Phone Extension Cord Cable, 20-FT.
• Comm Cable Telephone Extension Cord, 15-FT.
• mveohos Telephone Extension Cord, 50-FT.
• Softalk Landline Phone Extension Cord, 15-FT.
• Comtrue Telephone Extension Cord, 25-FT.

Can I use CAT5 cable for phone line?

CAT5 cable has four separate twisted pairs. Use the two wires in one of those pairs for your telephone connection. 10/100 base T Ethernet uses the green and orange pairs, specifically so that you can still use the blue and brown pairs for telephones.

What is the name of plug used for making telephone cable?

4-pin RJ-11 The wiring scheme for a single line phone was identified as “RJ11”, and the name stuck to describe the connector used on a phone cord. Today, RJ-11 is widely used in the connectivity industry to denote a 6-position, 4-conductor modular connector or jack.

What is the landline cable called?

A telephone jack and a telephone plug are electrical connectors for connecting a telephone set or other telecommunications apparatus to the telephone wiring inside a building, establishing a connection to a telephone network.

Are all charging cables the same?

What is the difference between cables? From the outside, many cables all look the same but on the inside, the construction is different and many cables have a slow only design. It all comes down to the wire’s ability to carry a fast speed.

Article first time published on

What Colour are telephone wires?

Conn No.Usual Cable ColourCarries2Blue with White BandsSpeech and Ringing3Orange with White BandsRinging4White with Orange BandsNot used but usually connected for neatness5White with Blue BandsSpeech and Ringing

What is Rj12 cable?

What is RJ12? The full form of Rj12 is registered jack 12. It is a connection jack that enjoins a central telephone system with single telephone lines through a line circuit. It is a male plug and only connects with Rj12 female jack to establish the connection. The Rj12 uses a 6P6C connector.

What is difference between RJ9 and RJ11?

The difference between RJ9 and RJ11 is that the RJ9 only comes in one type of configuration, that is, the 4P4C connection type. In contrast to that, RJ11 comprises two types of configuration. They are, namely, 6P2C and 6P4C connection types. … RJ9 is basically used to connect a phone handset with a phone collector.

Why do phone jacks have 4 wires?

It only takes two wires to connect a phone, but most house wiring contains four wires. The red and green wires are on the two center terminals of a normal phone jack, and the black and yellow wires are on the two outer terminals. This arrangement allows most normal houses to handle two phone lines very easily.

Is telephone wire 22 gauge?

The higher the number – the thinner the wire. Typical household wiring is AWG number 12 or 14. Telephone wire is typical AWG 22, 24, or 26.

What is the difference between Cat5 and telephone cable?

Network cables are usually thicker and rounder than a telephone cable. Network cables, including Cat5, Cat5e, Cat6, Cat6a, etc., are twisted pair cables for carrying signals in structured cabling for computer networks such as Ethernet. … While phone cables are narrower and flat, and are made up of four wires.

Can I use Cat5e cable for telephone?

This is made possible because of the wasteful (some may say “spare”) wires in cat-5 cable. Cat 5 cable and RJ-45 jacks have eight wires. … Telephones use two wires. Therefore, you can run both ethernet and telephone over the same wire, and still have two wires left over.

Can I use telephone cable for ethernet?

pctech2005 : No, it has 4 wires, 2 pairs. An ethernet cable has 8 wires / 4 pairs. Additionally the wires in a phone cable are not twisted to prevent cross-talk.

What is cable rj11?

(Registered Jack-11) A telephone interface that uses a cable of twisted wire pairs and a modular jack with two, four or six contacts. RJ-11 is the common connector for plugging a telephone into the wall and the handset into the telephone. See modular connector.

What is the difference between power lines and telephone lines?

It is easy to tell power lines apart from these types of lines – power lines are always higher up on the pole, they always have insulators, and they do not touch other lines. Cable and telephone lines are located further down the pole and are directly attached to power poles without insulators.

Which is better CAT 5 or CAT6?

What are the Advantages of a Cat6 Ethernet Cable? Compared to Cat5/5e cables, Cat6 cables have stricter performance specifications and significant higher data transfer speeds at greater distances. They are more tightly wound than Cat5 cables, and the cable conductors and cable sheath are thicker as well.

What is the difference between CAT5e and CAT6?

The main difference between CAT5e and CAT6 cable lies within the bandwidth, the cable can support for data transfer. CAT6 cables are designed for operating frequencies up to 250 MHz, compared to 100 Mhz for CAT5e. This means that a CAT6 cable can process more data at the same time.

What size is telephone cable?

In telephone cables, they are typically made from copper wire, with a diameter from 0.3 to 0.9mm, and an insulating PVC or PE jacket about half as wide again.

How many types of RJ connectors are there?

Connector/CablePinningRJ-45 568A/B crossed (8-wire)BL (1-3), OR (2-6), BK (3-1), R (4-5), G (5-4), Y (6-2), BN (7-8), S (8-7)

What type of connector is used with RJ11 cable?

RJ11, RJ14, RJ25 wiring Cords connecting to an RJ11 interface require a 6P2C connector. Nevertheless, cords sold as RJ11 often use 6P4C connectors (six position, four conductor) with four wires.

What are the different types of charging cables?

Based on the physical design of the connectors and ports, there are three different types of USB cables: USB Type A, USB Type B and USB Type C. Based on the functionality of the USB connectors, there are also two different versions of USB: USB 2.0 and USB 3.0.

Can I use any USB cable to charge my phone?

In short, no: You can plug any USB device into any USB cable and into any USB port, and nothing will explode — and in fact, using a more powerful charger should speed up battery charging. … If you have an older product, however, it probably won’t work with USB ports that employ the Battery Charging Specification.

What are the 3 types of phone chargers?

• Wall Chargers. Wall chargers are the most commonplace cell phone chargers. …
• Desktop Chargers. …
• Car Chargers.

What is Rj22 cable?

Rj11 vs Rj22 On the other hand, Rj22 is a device that is small and is also square-shaped and allows visibility of the connection wires. Rj11 is a registered jack with a configuration of 6P4C and 6P2C. … Rj22 is not a registered jack but unofficially is a part of it. The Rj22 port is used in telephone handsets.

What is RJ14 cable?

RJ14 or registered jack 14 is also known as two-wire connectors as they have two telephonic lines that can connect to two phones. They are 6P4C connectors with six pins and four contacts. They are commonly used in leased connections in the US. They are also used in US-manufactured modems.

What is rj25 cable?

Physical characteristics. It is a square-shaped compact cord used to connect two computers. It is small and square in the form it is used to connect three computers.
