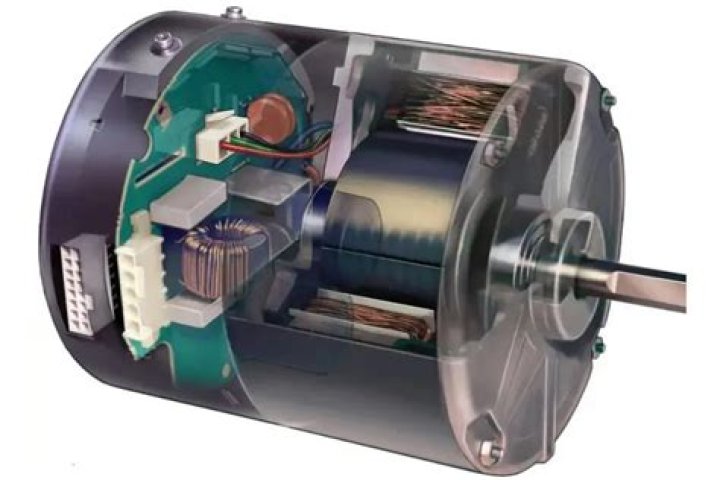

The term “Variable Speed” actually refers to the blower motor inside the furnace or air handler. It’s an Electronically commutated motor, or (ECM). … The initial cost of a furnace with an ECM will be higher than a traditional furnace, but the typical payback on a variable speed furnace is just 4 to 5 years.

How does an ECM motor vary speed?

An electronically commutated motor adjusts its speed in response to changing conditions to maintain a programmed CFM. When a change in torque is sensed, the ECM ramps the RPM up or down to compensate. Different conditions will affect CFM.

Is an ECM motor AC or DC?

ECMs are a type of DC motor. They are also called DC fan motors, EEM fan motors, and variable speed fan motors. They function using a built-in inverter and a magnet rotor, and as a result, can achieve greater efficiency in air-flow systems than some kinds of AC motors.

How does an electronically commutated motor work?

EC motors use permanent magnets and electrical windings to generate their magnetic fields, in a similar fashion to brushed DC motors. However, as their name suggests, they achieve commutation electronically rather than mechanically.

What is the difference between variable speed and ECM?

The word “variable speed” refers to the blower motor that is inside your air handler or furnace. It is an ECM (electronically commutated motor). An ECM’s are types of DC motors that function with a built-in inverter and a magnet rotor.

What controls an ECM motor?

In an ECM, this process is controlled electronically by a microprocessor and electronic controls, which provide the ability to increase or decrease the speed of the motor. The type of ECM currently used by most residential HVAC systems is a brushless dc three-phase motor with a permanent magnet rotor.

What is the difference between 2 stage and variable speed?

A two-stage furnace has low and high stages of operation. During the low stage, the furnace uses as little energy as possible to heat your home. … A variable-speed furnace contains a computerized blower motor chip that monitors the airflow inside your home to determine how much heat to generate and release.

Can you adjust speed on ECM motor?

If the terminals are present at the motor module (ECM X-13) you can switch speeds at the blower motor location. If you have a plug instead (ECM Broad Ocean) you can only make the adjustment at the control board or at the plug terminals at the end of the wiring. Make sure power is off when doing any adjustment.

What tells an ECM motor to ramp up?

An ECM motor maintains a programmed CFM in response to changes in torque. When the sensed torque changes, the RPM of the motor either ramps up or down to maintain the programmed CFM.

How many motor windings are on an ECM?

Often one winding is called the start winding and a run winding. These two windings are used in conjunction with a capacitor to help provide more starting torque and it also helps correct the power factor of the motor.

Article first time published on

What is the difference between AC and EC motors?

But what is the difference between AC motors and EC motors? AC motors use the mains frequency to turn and an external frequency converter to determine the speed. An EC motor, on the other hand, is a brushless, permanent magnet motor with built-in electronics that control the torque and speed of the motor.

What is the difference between a PSC and ECM motor?

The big difference between the two models is that the PSC motor has one speed: full speed. Any time that the blower is on it blows at full force. The ECM model is a variable speed unit that will adjust the airflow to optimal levels based on the desired temperature of the home.

Does a ECM motor require a capacitor?

The ECM is one way of saving on energy costs. One of the characteristics of the ECM is that they do not require adding an external run or start capacitor.

Does an ECM motor use a capacitor?

ECM Motors mean more energy savings and added functionality. PSC motors, or permanent split capacitor motors, use non-polarized capacitors and brushes to deliver electricity to the rotating parts. These brushes are known to wear out over time.

Do ECM motors have to be programmed?

ECM stands for an “electronically commutated motor” which basically means a motor that uses electronic controls to vary its speed. … It should be noted that the ECM motor programming is specific to each model of HVAC equipment, so programming is ONLY done at the factory, not in the field.

Are ECM motors quieter?

ECM motors are very high efficiency (65% to 80%) electric motors. … ECM motors are also quieter than traditional inefficient motors, have longer design life, and require less maintenance.

Is a constant torque motor and ECM motor?

Constant Torque motors are a step up from a PSC because it can provide the CFM needed at a slightly higher static pressure. It is an ECM motor but it is not a “Variable Speed Motor” They are programmed to operate in Constant Torque mode and are built with typically 5 speed taps that are energized with 24vac.

How much does an ECM motor cost?

Belt$5 – $100Housing$100 – $300Capacitor$150 – $450ECM Motor Module$230 – $830

Is a variable speed AC worth it?

For most homes in our area, a variable speed air conditioner is an excellent choice. If you’re replacing an HVAC system and have the budget for a superior system, you simply can’t beat a variable speed system for energy efficiency and overall comfort.

What SEER rating should I buy?

There’s no magic SEER number. Anything over 13 is great. Because if you have an old 8 SEER system and replace it with a 16 SEER unit, you could significantly reduce the cost of cooling your home. Don’t forget to look at tax credits and manufacturer’s rebates that can bring the down the cost of a high SEER system.

Is variable speed AC more efficient?

A variable speed AC system is even more efficient than the two-stage option. This type of system can operate at any capacity, making minute adjustments to the speed which will maximize your energy efficiency and deliver exactly what you’re looking for in terms of comfort.

How do you diagnose a bad ECM motor?

1. Verify that the correct thermostat input voltage is present at the interface of the main control board on the furnace or air handler. …
2. When checking low-voltage connections, always use the C terminal on the board, never on the ground.

What keeps the rotor rotating in an ECM motor?

When power is applied, a magnetic field is induced in the windings, causing it to turn. Then, brushes in contact with a commutator (a series of contact points) allow the current and magnetic field to shift from winding to winding. This forces the rotor to keep rotating.

Does the ECM control the air conditioner?

The ECM Motor In the simplest terms, an ECM motor lowers the total electrical consumption of an AC or furnace and helps to maintain proper air flow through the system. … This microprocessor controls the motor in order to regulate air flow.

What causes ECM motors to fail?

Some older ECM motors will overheat and even fail when constantly running in over-amped conditions. Newer models are designed to drop airflow but time will tell on how well they will hold up. Other consequences of high static installations include noise at the registers from higher air velocities.

Does an ECM motor need a VFD?

Ease of Control: ECMs are DC motors that function using a built-in inverter and a magnet rotor (no external VFD). The motor’s operation is simply controlled by software allowing customers to optimize and integrate the motor, fan and controller with the application.

What is an ICM motor?

ICM is short for Integrally Controlled Motor.(or something like that) ECM is short for Electronically Commutated Motor.

What fan speed should I use in AC?

Set the fan speed on high, except on very humid days. When humidity is high, set the fan speed on low for more comfort. The low speed on humid days will cool your home more effectively and remove more moisture from the air because of slower air movement through the cooling equipment.

Can I turn up the fan speed on my furnace?

Once you cut the power, you can remove the cover of your furnace to get access to the control board. Adjusting the pulley on the blower driver motor lets you increase or decrease the blower speed. … Turn the pulley one rotation clockwise on the shaft. If you want even more speed, do two rotations.

What is an ECM blower?

Electronically commutated motors (ECM) represent an advance in blower motor efficiency that saves substantial energy and improves aspects of overall system performance. ECMs are brushless motors developed by General Electric, which owns the trademark on the name.

What is the rotor of an ECM motor composed of?

The rotor of an ECM motor is composed of… … permanent magnets. A major difference between three phase motors and single phase motors is that…
