In geometry, the circumscribed circle or circumcircle of a polygon is a circle that passes through all the vertices of the polygon. The center of this circle is called the circumcenter and its radius is called the circumradius.

What shapes can be circumscribed by a circle?

The circumscribed circle is the circle drawn outside of any other shapes such as polygon, touching all the vertices of the polygon, and is termed as circumcircle. Note: All 3 vertices have been touched by the circle. The circumscribed triangle is the triangle drawn outside of any other shapes.

Which Quadrilaterals can be circumscribed by a circle?

A cyclic quadrilateral is a quadrilateral for which a circle can be circumscribed so that it touches each polygon vertex. A quadrilateral that can be both inscribed and circumscribed on some pair of circles is known as a bicentric quadrilateral.

Is it possible to circumscribe a circle about any triangle?

The circumscribed circle Given any triangle, it is always possible to find a circle such that all the vertices of the triangle lie on the circle. This is the so-called circumscribed circle. Use one of the points shown above as the midpoint of the circle. This point is called the circumcenter of the triangle.

What is meant by circumscribed circle?

Definition of circumcircle : a circle which passes through all the vertices of a polygon (such as a triangle)

What shapes Cannot be inscribed in a circle?

Some quadrilaterals, like an oblong rectangle, can be inscribed in a circle, but cannot circumscribe a circle. Other quadrilaterals, like a slanted rhombus, circumscribe a circle, but cannot be inscribed in a circle.

What is a circumscribed shape?

A circumscribed figure is a shape drawn outside another shape. For a polygon to be inscribed inside a circle, all of its corners, also known as vertices, must touch the circle. If any vertex fails to touch the circle, then it’s not an inscribed shape.

How do you circumscribe a right triangle?

Construct the perpendicular bisector of one side of triangle. Construct the perpendicular bisector of another side. Where they cross is the center of the Circumscribed circle. Place compass on the center point, adjust its length to reach any corner of the triangle, and draw your Circumscribed circle!

What is the area of the circle circumscribed?

Its length is √2 times the length of the side, or 5√2 cm. This value is also the diameter of the circle. So, the radius of the circle is half that length, or 5√22 . To find the area of the circle, use the formula A=πr2 .

How do you find the center of a circle that you can circumscribe?

Circumscribed circles When a circle circumscribes a triangle, the triangle is inside the circle and the triangle touches the circle with each vertex. find the midpoint of each side. Find the perpendicular bisector through each midpoint. The point where the perpendicular bisectors intersect is the center of the circle.

Article first time published on

How do you tell if a circle can be circumscribed in a quadrilateral?

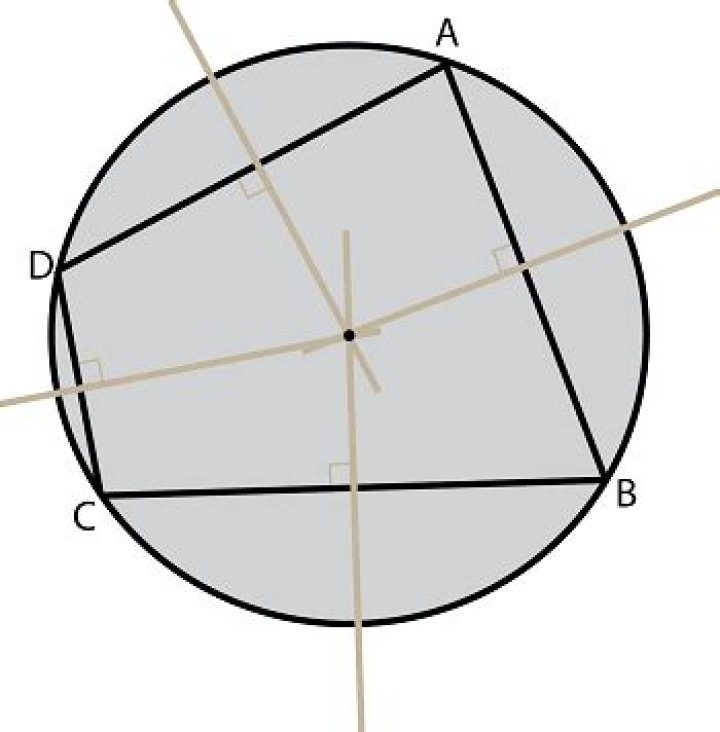

Construct the perpendicular bisectors of all four sides of the quadrilateral. If they all cross at the same point, then that point is the circumcenter of the quadrilateral. The radius of the circumcircle is the distance from the circumcenter to any of the four vertices of the quadrilateral.

When can a circle be inscribed in a quadrilateral?

A quadrilateral is said to be inscribed in a circle if all four vertices of the quadrilateral lie on the circle. Quadrilaterals that can be inscribed in circles are known as cyclic quadrilaterals.

Does every quadrilateral have a circumscribed circle?

In Euclidean geometry, a cyclic quadrilateral or inscribed quadrilateral is a quadrilateral whose vertices all lie on a single circle. This circle is called the circumcircle or circumscribed circle, and the vertices are said to be concyclic. … All triangles have a circumcircle, but not all quadrilaterals do.

What is a circumscribed angle?

A circumscribed angle is the angle made by two intersecting tangent lines to a circle. A tangent line is a line that touches a curve at one point. … This angle is equal to the arc angle between the two tangent points on the circumference of the circle.

How do you inscribe circumscribe a triangle?

1. Draw the triangle.
2. Draw the perpendicular bisector to each side of the triangle. Draw the lines long enough so that you see a point of intersection of all three lines.
3. Draw the circle with radius at the intersection point of the bisectors that passes through one of the vertices.

What do you mean by circumscribed?

circumscribe \SER-kum-skrybe\ verb. 1 a : to constrict the range or activity of definitely and clearly. b : to define or mark off carefully. 2 a : to draw a line around. b : to surround by or as if by a boundary.

What is meant by inscribed and circumscribed circle?

A circle is circumscribed about a polygon if the polygon’s vertices are on the circle. … A circle is inscribed a polygon if the sides of the polygon are tangential to the circle. For triangles, the center of this circle is the incenter. Circumscribed and inscribed circles show up a lot in area problems.

Can a square always be inscribed in a circle?

Another way to think of this is that every square has a circumcircle – a circle that passes through every vertex. In fact every regular polygon has a circumcircle, and so can be inscribed in that circle.

Can you circumscribe every rectangle?

Actually – every rectangle can be inscribed in a (unique circle) so the key point is that the radius of the circle is R (I think). One of the properties of a rectangle is that the diagonals bisect in the ‘center’ of the rectangle, which will also be the center of the circumscribing circle.

How do you circumscribe a pentagon in a circle?

1. Draw a circle in which to inscribe the pentagon and mark the center point O.
2. Draw a horizontal line through the center of the circle. …
3. Construct a vertical line through the center. …
4. Construct the point M as the midpoint of O and B.
5. Draw a circle centered at M through the point A.

How do you find the radius and area of a circle circumscribed?

For a triangle △ABC, let s = 12 (a+b+ c). Then the radius R of its circumscribed circle is R=abc4√s(s−a)(s−b)(s−c). In addition to a circumscribed circle, every triangle has an inscribed circle, i.e. a circle to which the sides of the triangle are tangent, as in Figure 12.

What is the diagonal of a circle?

Diagonal of a square inscribed in a circle is equal to the diameter of the circle. If \[D\] is the length of the diameter of a square then the length of its side is given by \[\dfrac{D}{{\sqrt 2 }}\].

What is the center of the circle that you can circumscribed about a triangle with vertices?

Given a triangle, the circumscribed circle is the circle that passes through all three vertices of the triangle. The center of the circumscribed circle is the circumcenter of the triangle, the point where the perpendicular bisectors of the sides meet.

What is the acute angle?

Acute angles measure less than 90 degrees. Right angles measure 90 degrees. Obtuse angles measure more than 90 degrees.

What is the measure of circumscribed ZX?

Line segment ON is perpendicular to line segment ML. What is the length of chord ML? Major arc JL measures 300°.

What is an equation of a circle?

We know that the general equation for a circle is ( x – h )^2 + ( y – k )^2 = r^2, where ( h, k ) is the center and r is the radius.

Why is a circle not a polygon?

A circle is not a polygon. … A polygon is a closed figure on a plane formed from a finite number of lines segments connected end-to-end. As a circle is curved, it cannot be formed from line segments, as thus does not fit the conditions needed to be a polygon.

Is a circle a quadrilateral yes or no?

In geometry, a quadrilateral inscribed in a circle, also known as a cyclic quadrilateral or chordal quadrilateral, is a quadrilateral with four vertices on the circumference of a circle. In a quadrilateral inscribed circle, the four sides of the quadrilateral are the chords of the circle.

Can all regular polygons be inscribed in a circle?

Every regular polygon has an inscribed circle (called its incircle), and every circle can be inscribed in some regular polygon of n sides, for any n≥3. … Not every polygon with more than three sides is an inscribed polygon of a circle; those polygons that are so inscribed are called cyclic polygons.
