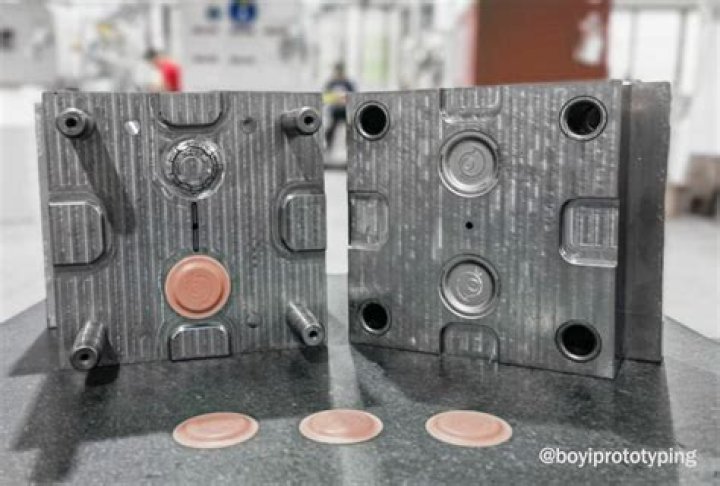

Aluminium Injection Tooling This variety in choices enables the team to get volume parts out to trial quickly or to accommodate variances or part designs in the same mould. Prototype tooling is a very useful process to establish the initial demand for a component.

Can aluminum be metal injection molded?

Although Metal Injection Moulding has worked very well for many decades for a wide range of metals and alloys, the process has always proved to be unsuitable for aluminium.

Can aluminum be molded?

Aluminum castings are formed by pouring molten metal into molds that have been shaped by a pattern of the desired final product. Three common types of molding methods are used to produce castings: die casting, permanent mold casting, and sand casting.

What metals can be injection molded?

Almost any standard material that can be turned into a fine powder (0.4-45 micron range) can be used as the basis for a MIM feedstock. Commonly available low alloy and stainless steels can be processed, as well as more exotic materials such as Cobalt Chrome and Zirconium Oxide.

How long do aluminum injection molds last?

What is the life expectancy of a tool? Aluminum tools are good for a lifespan of anywhere from 2,000- 10,000 parts depending on the type of aluminum used, part material and geometry. Steel tools are good for a lifespan of 100,000 + parts depending on the material and geometry of the part.

Can metals be used in injection molding?

To make a complex part in metal, you can cast it, or machine it — or injection mold it. … The process is called metal injection molding (MIM), or sometimes powder injection molding (PIM), and it can produce intricate parts in a wide range of metals, including steel, stainless steel, and even high-temperature alloys.

How does metal injection molding work?

Metal injection molding (MIM) is a metalworking process in which finely-powdered metal is mixed with binder material to create a “feedstock” that is then shaped and solidified using injection molding. … After molding, the part undergoes conditioning operations to remove the binder (debinding) and densify the powders.

What are aluminum molds made of?

Permanent types of aluminum casting molds are made from metals such as steel and iron. The molten aluminum is forced by gravity or a vacuum into the permanent mold cavity.

What is the difference between metal injection molding and casting?

Although there are some variations in technique, the major difference between die casting and metal injection molding is that die casting uses some kind of metal, often an aluminum alloy or zinc alloy, as the raw material, while metal injection molding uses steel or other types of MIM alloys.

Can you use silicone molds for aluminum?

Don’t get us wrong — sand-cast aluminum is a great method that can even be used to build a lathe from scratch. … And unlike sand molds, silicone molds are reusable. Of course if aluminum is still your material of choice, there’s no need for a complicated foundry.

Article first time published on

Do injection molds wear out?

Even though molds are made to withstand the tear and wear that occurs, they still undergo a lot of stress, and over time, tool repair and replacement will be needed to ensure your finished product’s quality is not affected.

How strong is injection molded plastic?

Polycarbonate is extremely durable and 250 times stronger than glass. With its predictable and uniform mold shrinkage, this injection molding material offers precise dimensional control. PC plastic is also lightweight and has excellent optical properties to support light transmission.

How long do injection molding machines last?

An otherwise good operating injection molding machine can become useless if one can’t obtain parts for an obsolete control system. If you’re looking for an average time frame, I would say around 10-15 years life is normal. The injection molding machines will most likely still be functional well past this age.

How do you melt aluminum for casting?

Fire up the kiln or furnace to 1220°F. This is the melting point of aluminum (660.32 °C, 1220.58 °F), but below the melting point of steel. The aluminum will melt almost immediately once it reaches this temperature. Allow half a minute or so at this temperature to assure the aluminum is molten.

What sand do you use for aluminum casting?

The Aluminum Sand Casting Process Green sand, which is new or regenerated sand mixed with natural or synthetic binders, is the most commonly used material for making aluminum expendable molds. Green sand molds get their name from the fact that they are still moist when the molten metal is poured into them.

What can you cast out of aluminum?

You can melt down almost any kind of aluminum—cans, even—but a piece that has already been cast (such as a water pump, wheel, or intake manifold) will have an alloy that’s better suited for casting. Aluminum pours at about 1,500 degrees, so have the proper safety gear in place and a fire extinguisher on hand.

Can steel be Moulded?

Mold steels are manufactured by melting starting material in an electric arc furnace (EAF). The starting material is comprised of carefully selected, low alloy scrap steel with the lowest possible level of impurities. Typically, the EAF units can melt as much as 50 tons of starting material per heat.

What is disadvantage of metal injection Moulding compared to metal machining?

The Disadvantages of Metal Injection Molding (MIM) Some of these disadvantages include: The MIM process has multiple steps, which leads to a more expensive processing cost. The parts manufactured using this process are typically small. The larger the part to be produced, the fewer will be able to fir in the furnace.

Can stainless steel be injection molded?

The metal injection molding (MIM) process achieves high densities, enhancing the strength, ductility, and corrosion resistance of stainless steels.

How expensive is metal injection molding?

Metal injection molding’s cost is an automatic disqualifier for many projects. In virtually all cases, MIM can’t compete with powder metallurgy in a price battle. Estimates say the feedstock for MIM can cost up to $12 per pound, compared to the $1 to $2 per pound for conventional powder metallurgy.

Why are metals easily Moulded?

Most metals are malleable and ductile, and are generally more dense than the other pure solid material. When something is malleable, it means that they can be molded. … As with all elements, metals are composed of atoms.

What is the plastic used in metal injection molding typically called?

When it comes to injection molding resins, there are two types of polystyrene that are commonly used: High Impact Polystyrene (HIPS) and General Purpose Polystyrene (GPPS). GPPS is transparent, while HIPS is opaque. Hard cases for toolboxes and bodies of power tools are also made using High Impact Polystyrene.

Can carbon Fibre be injection Moulded?

The result is carbon fibre loaded pellets that can be dropped in to standard injection moulding machines. … The moulded component is nearly 10% lighter and 25% stiffer than the same component made using a 30% glass fibre reinforced PA6.

What is powder injection molding?

Powder injection moulding (PIM) is a PM manufacturing technique that combines the shaping capabilities of polymer injection moulding with the material flexibility of powder metallurgy. It is particularly suited for producing small, extremely complex-shaped metallic parts in large volumes.

What is metal Mould?

Permanent mold casting is a metal casting process that employs reusable molds (“permanent molds”), usually made from metal. The most common process uses gravity to fill the mold, however gas pressure or a vacuum are also used. … Common casting metals are aluminium, magnesium, and copper alloys.

What is the difference between thermoforming and injection molding?

In thermoforming, a flat sheet of plastic is heated to a pliable temperature, then molded to the tool’s shape using suction from a vacuum or both suction and pressure. In injection molding, plastic pellets are heated to a liquid state and injected into the mold.

Can you injection mold polyurethane?

Molten polyurethane is injected into a closed mold at high pressure. The high-pressure forces the polyurethane to completely fill the mold cavity. … Injection molding is traditionally thought of for high-volume production.

Which type of casting is injection Moulding?

Injection moulding can be performed with a host of materials mainly including metals (for which the process is called die-casting), glasses, elastomers, confections, and most commonly thermoplastic and thermosetting polymers.

Can you cast Aluminium?

Three primary metal casting methods can be used to cast aluminum: die casting, permanent mold casting, and sand casting. The methodology behind each of these metal casting techniques is as follows: … Once the aluminum cools and solidifies, the sand mold is broken away from the part.

How do you pour mold?

Pour the mold rubber into one corner of the mold box and let it rise. Pour rubber into rubber and avoid pouring directly on the model. Fill the mold box to at least 0.5″ above the model. Spraying release agent across the surface of the rubber immediately after pouring can help to release air bubbles.

How do you make a mold for molten metal?

1. Place a pattern in sand to create a mold.
2. Incorporate the pattern and sand in a gating systemRemove the pattern.
3. Fill the mold cavity with molten metal.
4. Allow the metal to cool.
5. Break away the sand mold and remove the casting.
