Originally Answered: Is DSuB the same as VGA? No. D-Sub refers to the “D” rectangular shape of the connector. VGA happens to have standardized on the “D-submini” 15 pin variation, but there plenty of other kinds of D-sub connectors with different numbers of pins, and used for different purposes.

What does D-Sub mean on a monitor?

The term “D-Sub” stands for “D-Subminiature,” which is a type of connector. D-Sub connectors were created in the 1950s, and they are still used in modern computers. They are shaped like a sideways letter “D,” with one side slightly longer than the other.

What is a D-Sub wire?

A D-sub contains two or more parallel rows of pins or sockets usually surrounded by a D-shaped metal shield that provides mechanical support, ensures correct orientation, and may screen against electromagnetic interference. … This creates an electrically continuous screen covering the whole cable and connector system.

Is DVA or VGA better?

DVI stands for Digital Visual Interface and offers a distinctly sharper, better picture than VGA. It’s a unique connector because it can carry both digital and analog signals. DVI can also easily convert to other standards like HDMI and VGA.

What is D-Sub out of range?

The issue could occur if there is issues with display settings or screen resolution is not set properly. In order to help you better, please provide the information: Are you getting any error message? I suggest you to boot into safe mode and try to update all the drivers.

Can D-Sub convert to HDMI?

Connect your VGA/D-Sub cable to a HDMI port. … To stream files, such as videos, from a device with a D-Sub to another device with only a HDMI port, you will need to convert the signal with a VGA/D-Sub to HDMI converter box. VGA/D-Sub to HDMI converters are available for purchase from a variety of retailers.

Is D-Sub or HDMI better?

HDMI: Audio and video signal, best for TV to PC connections. DVI: Video only, perfect for older systems or for 144Hz at 1080p. DisplayPort (DP): The best connector for an audio and video signal, and can transmit 144Hz up to 4K. VGA: Old, legacy video connector.

Can VGA do 1080p?

VGA can indeed support 1080p. The quality of the signal begins to drop off above 1920×1080 (1080p) which will cause a drop in image quality due to the analogue nature of the signal but with a good enough cable and transceiver on either end it can be used for resolutions up to and including 2048×1536.

Is D-Sub the same as DVI?

The difference between DVI and D-Sub is that DVI is designed to transmit both analog and digital signals whereas D-Sub only transmits digital signals. This difference also makes a great difference in their video output quality.

What is DVI-D vs VGA?

The main difference between VGA and DVI is in picture quality and the way the video signals travel. VGA connectors and cables carry analog signals while DVI can carry both analog and digital. DVI is newer and offers better, sharper display compared to VGA. … In contrast to HDMI, neither VGA nor DVI support audio.

Article first time published on

What is the white cable for monitors called?

Notice that the primary distinction for the DVI connector is that the color is white instead of blue, and the DVI connector contains more pins in a rectangular shape. The two ports are physically not compatible, and therefore each cable will only fit the correct port.

Do I need a DVI-D cable?

If one or both connections are DVI-D, you need a DVI-D cable. If one or both connections are DVI-A, you need a DVI-A cable. If one connection is DVI and the other is VGA, and the DVI is analog-compatible, you need a DVI to VGA cable or a DVI/VGA adaptor.

Are all D sub pins the same size?

D-Sub Connector manufacturers Shell size 3 is used with the 25 pin D and the 44 pin D connectors. Shell size 4 is used with the 37 pin D and the 62 pin D connectors. Shell size 5 is used with the 50 pin D and the 78 pin D connectors. Shell size 6 is used with the 104 pin D connector.

Is DB9 and VGA the same?

VGA Monitor (DB15 & DB9) The VGA connector can use a classic DB9 connector or (more commonly today) a DB15 style connector. … The VGA connector (15 pin) is still widely used and while it was originally used to carry a 640 x 480 pixel format it is used to carry a variety of geometries including HDTV formats.

What is D-Sub problem?

Your problem is most likely lack of signal, and there might not be anything wrong at all. A big clue to what is happening is in the message “D-SUB power saving mode”

How do I get my monitor out of range?

1. You connect the second monitor.
2. Once loaded, open the start menu > power then hold shift while pressing the Restart option.
3. It will say please wait. …
4. Choose Troubleshoot > Start-up Settings and press Restart.

How do I fix D-sub power saving mode?

1. Power off the computer.
2. Disconnect either the DVI (White Digital) connector or the D-Sub (Blue Analog) connector from the display adapter.
3. Power the computer on. The computer should now operate normally.

What is a HDMI D-Sub?

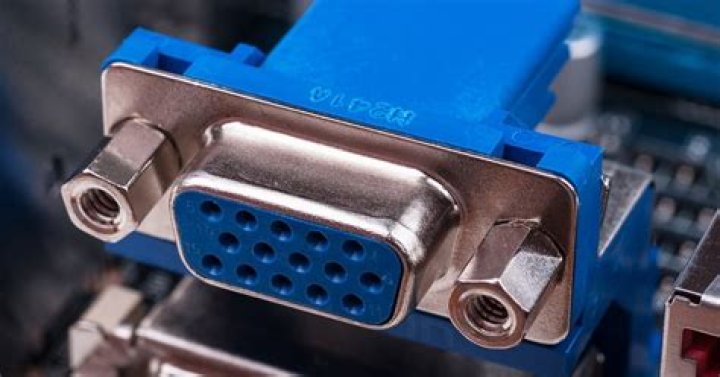

D-Sub and DVI: standard interfaces for PC use. … When used as a monitor interface, a D-Sub port is also known as a VGA port, an analog connection standard that’s been around for some time. The connector is a DE-15 connector with 15 pins in three rows, often referred to as a “mini-D-Sub 15-pin” or “D-Sub 15-pin” connector …

What is VGA vs HDMI?

VGA is an older standard that carries only a video signal. HDMI is the default cable standard for newer electronic devices, such as Blu-Ray players or LED TVs. HDMI can carry both digital video and audio signals, all while encrypting data with HDCP.

What is VGA to HDMI?

VGA to HDMI adapters enable you to connect a computer with a VGA output to a TV or monitor with HDMI. These adapters contain a built-in chip that converts the analog signal from your old PC to a digital output compatible with most TVs and monitors available today.

Does VGA to HDMI work?

Q: Why Does VGA to HDMI Not Work? Without an adaptor, VGA to HDMI does not work because VGA is an analog signal and HDMI is digital. Simply changing the plug end will not work. To convert VGA to HDMI, you need an active adapter or converter with a built-in chip to convert the analog VGA input to digital HDMI output.

Does HDMI to VGA work in reverse?

No,it will not work. Because this is HDMI to VGA cable,it only support connect monitor with VGA port,and connect computer with HDMI port,can not go from VGA to HDMI so you won’ t be able to use this in reverse.

What is VGA cable?

VGA stands for Video Graphics Array. A VGA cable is a device used to transfer video signals. It does this by acting as a link between the computer and the monitor or between the computer and the television screen. The video graphic cable comes in two types, male and female connector.

What is a DVI-D to VGA adapter used for?

The DVI2VGAE active DVI-D to VGA adapter lets you connect a digital DVI output from your desktop or laptop computer onto a VGA monitor or projector, saving the cost of upgrading to a DVI-D compatible display.

Is there VGA to DVI adapter?

Yes! Now, VGA to DVI adapters work by transferring and translating the analog signal from the VGA device into a DVI-recognized digital signal. This conversion from VGA to DVI by adapters makes seamless signal transmission and conversion without the need to buy new and exclusively-compatible devices.

Can VGA be adapted to DVI?

This connection transfers a signal from the digital DVI source to the analogue VGA device. This can be done through a DVI to VGA cable or via an adapter. A DVI to VGA adapter is used to connect a VGA/SVGA monitor or TV to a DVI-I connection, like on a laptop.

Is VGA okay for gaming?

VGA doesn’t necessarily mean that the monitor is a poor choice for gaming. VGA used to be the dominant connection between a computer and monitor, and there are many older monitors that have a VGA input as well as more modern digital interfaces like DVI, DisplayPort, or HDMI.

Can VGA handle 4K?

Due to hardware limits, VGA cannot support 4K which is 3840×2160. VGA’s maximum resolution is around 2048×1536 which is 2K, and it probably won’t be true HD. For higher resolutions, use HDMI, Display Port, or DVI.

Which is clearer HDMI or VGA?

Not only is HDMI capable of transferring more data (which translates into higher resolutions and higher frame rates) but it can also carry over audio. VGA, on the other hand, is only capable of transferring visuals, and much lower resolutions. In short, HDMI delivers a much clearer image quality.

What is a DVI-D?

DVI-D. A DVI-D connector on a graphics card sends out a digital signal only, while a DVI-I connector can send out a digital signal (for digital displays such as flat panel LCD monitors) as well as analog signal (for older displays such as a CRT monitor) using a DVI to VGA adaptor shown below.

Is HDMI better than DVI-D?

In its most recent versions, HDMI has caught up to DVI as both can now output 144hz at 1080p. In fact, HDMI is now considered the better option, as the cable simply supports more advanced technology than its dated counterpart.
