To Thread Rigid Conduit: Use standard ¾-inch-per-foot tapered National Pipe Thread (NPT) dies. Choose the dies based on the trade size pipe you are threading. For example, for ¾” trade size pipe, choose the standard 14-pitch (i.e., 14 threads per inch) NPT die. … Ream the cut end of the conduit.

Can you thread metal conduit?

You can thread conduit either before or after being bent with a conduit bender. … Long runs of electrical conduit often require threaded connections per local building codes. Since conduit does not come pre-threaded, you need to cut threads on the end of the conduit entering a threaded connection.

Which type of conduit can be threaded?

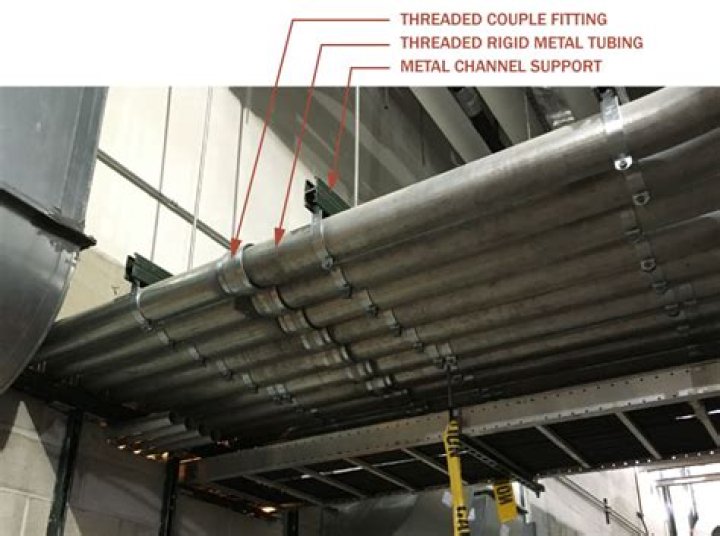

Rigid metal conduit (RMC) is a thick-walled threaded tubing, usually made of coated steel, stainless steel or aluminum. Galvanized rigid conduit (GRC) is galvanized steel tubing, with a tubing wall that is thick enough to allow it to be threaded.

Is running thread acceptable where conduits are coupled?

Running threads cannot be used on rigid metal conduit for connection at couplings. P.S.: What about the connection at the left? Is that a recognized fitting to be used to comply with rules for EMT? See Section 110.3 (B).

What is used to thread metal conduit?

To thread your conduit using a ratchet & handle: Place the collets around the conduit to protect it from abrasion and/or being crushed by the vice. Place the pipe/collets in the vice, tighten so the conduit cannot turn. Inspect the dies to make sure they are sharp and free of damage.

What tool is used in cutting the rigid steel conduit?

Hacksaw – tool is used to cut metal conduit and armored cable.

What is the tool used to thread rigid metal conduit?

Above: an electric-operated electrical conduit bender from Klein Tools. Screw a 30-inch length of threaded pipe into the bender head (sometimes called a an electricians “hickey.”) Insert the conduit into the bender through the hook at the top of the head. The hook marks where the bend will start.

What is a running thread conduit?

The “running threads” refered to in the code book are referring to overthreading a piece of conduit to allow installer to run a coupling all the way onto the pipe and then back it off onto another piece of pipe rather than using an erickson or union, whichever it is called in your area.

How can I help rigid conduit?

(A) RMC must be secured in accordance with any of the following: (1) Fastened within 3 ft of each outlet box, junction box, device box, cabinet, conduit body, or other conduit termination. Fastening is required within 3 ft of terminations, not within 3 ft of each coupling.

What is the difference between EMT and RMC?

The biggest different between RMC and EMT is that EMT is a lot lighter. It has thinner walls and is also unthreaded. As a result, it’s a very popular option for use in commercial buildings. Connecting sections of EMT is easier.

Article first time published on

Is rigid conduit the same as galvanized pipe?

What is the difference between a rigid conduit and a galvanized pipe? Rigid conduit and pipe start out the same, but the inside of galvanized conduit is reamed to remove the burrs from the welded seam and any other imperfections in the inside which could damage wire.

What is rigid PVC conduit?

Schedule 40 & 80 rigid PVC conduit systems are sunlight resistant and are used exposed, encased in concrete, concealed in walls and in direct burial applications including systems for: Utilities. Cable, data and communication lines. Institutional, commercial, industrial buildings.

What is the length of thread on rigid conduits as per RBI?

Explanation: Thread Rigid Conduit: Use standard ¾-inch-per-foot tapered National Pipe Thread (NPT) dies.

What is the maximum number of bends of rigid metallic conduits?

344.26 Bends — Number in One Run There shall not be more than the equivalent of four quarter bends (360 degrees total) between pull points, for example, conduit bodies and boxes.

What is the maximum number of bends permitted in rigid metal conduit type RMC )?

National Electrical Code or NEC limits the total number of bends in one continuous run to 360 degrees or four 90 degree bends. It specifically states, “There shall not be more than the equivalent of four quarter bends (360 degrees total) between pull points, for example, conduit bodies and boxes.”

What is the purpose of installing rigid steel conduits?

Rigid Steel Conduit (RSC) is covered by Article 344 of NEC and a threadable raceway of circular cross section designed for the physical protection and routing of conductors and cables and for use as an equipment grounding conductor when installed with its integral or associated coupling and appropriate fittings.

What is the purpose of a running coupler?

A coupling is a device used to connect two shafts together at their ends for the purpose of transmitting power. The primary purpose of couplings is to join two pieces of rotating equipment while permitting some degree of misalignment or end movement or both.

Can rigid conduit be bent?

Rigid and IMC conduit are the hardest raceways to bend because they have a much thicker and harder wall. ½” and ¾” rigid or IMC can be bent by hand using a hickey (or segment bender). … Use an EMT bender to bend 30° kick in the PVC conduit by bending it to 60° and then the conduit will spring back to 30°.

What is the maximum adapter bends for everyone run or tubing?

Even with the use of factory bends, the NEC does restrict the number of bends you can have between pull boxes to a maximum of 360°, including offsets at the box or enclosure.

Can you use metal straps on PVC conduit?

Use metal hangers with PVC conduit; they hold up better than plastic. Choose the single-hole type. One screw is more than enough support, and compared with the two-hole strap, installation will go twice as fast.

How far can conduit span without support?

Conduit SizeDistance Between Supports1″12 Feet1¼” – 1½”14 Feet2″ – 2½”16 Feet3″ and larger20 Feet

How often does metal conduit need to be supported?

EMT must be secured at least every 10 ft. and within 3 ft. of every outlet box, junction box, device box, cabinet, conduit body, or other termination. An exception allows EMT to be fastened up to 5 ft.

Can aluminum conduit be threaded?

Aluminum Rigid Metal Conduit is about one-third the weight of steel RMC. Aluminum conduit can be readily cut, bent or threaded on the job, and it requires no special tools or installation equipment. … Aluminum resists most corrosive atmospheres and industrial environments without special painting or coatings.

What is the maximum distance between supports for a straight run of 2 inch IMC made up with threaded couplings?

(3) Exposed vertical risers from industrial machinery or fixed equipment shall be permitted to be supported at intervals not exceeding 6 m (20 ft) if the conduit is made up with threaded couplings, the conduit is supported and securely fastened at the top and bottom of the riser, and no other means of intermediate …

When May Liquidtight flexible metallic conduit be used?

Liquidtight flexible metal conduit (LFMC) is intended for use in wet locations or where exposed to mineral oil, both at a maximum temperature of 140°C.

Can EMT fittings be used on rigid conduit?

EMT connectors are permitted to be assembled into threaded entries of boxes, conduit bodies or internally threaded fittings having tapered threads (NPT). EMT fittings designed to NEMA FB 1, “Fittings, Cast Metal Boxes, and Conduit Bodies for Conduit and Cable Assemblies,” have straight threads (NPS).

Is EMT rigid metal conduit?

Electrical Metallic Tubing—EMT EMT is also called “thin-wall” conduit because it is thin and lightweight, especially compared to RMC. EMT is rigid but can be bent with a simple tool called a conduit bender.

Can I use rigid conduit outside?

This rigid metal conduit is approved for all interior applications but can also be used outside. Liquid Tight Conduit is available in both metallic and nonmetallic configurations; the metallic configurations generally have a plastic coating to prevent water from penetrating.

Can you use rigid conduit for water line?

Galvanized pipe itself has limitless applications, from gas piping to piping for potable water. Rigid conduit lines are designed specifically for electrical applications. They offer excellent protection for the electrical wires that are run through them.

Which is better PVC or metal conduit?

PVC is an excellent corrosion resistant material and doesn’t break down in corrosive environments like salt water or chemical exposure. The downside to PVC is that it does not have grounding capabilities, being a non-metal conduit. To address this, electricians use an extra grounding conductor in all PVC conduits.

Can I use plumbing pipe for electrical conduit?

PVC pipe that is used for plumbing is usually white while electrical conduit PVC is usually gray. … Therefore, Schedule 80 pipes should not be used as an electrical conduit.
