Yes, they can. If they are too long, they will protrude through the sheathing at the roof overhang and be visible.

What is the most common size roofing nail?

Roof nails are available in 12-, 11- and 10-gauge. The lower the gauge number, the thicker the nail. Under most building codes in North America, 12-gauge is the minimum thickness of nail allowed on a roof. Roofing nails that are 11- or 10-gauge are also allowed by most building codes as they are thicker and sturdier.

How far should roofing nails penetrate the sheathing?

Nails shall have sufficient length to penetrate through the asphalt shingle roofing and roof sheathing or have a minimum penetration of 25mm (1″) into the roof decking.

Can I use 1 inch roofing nails?

In southern parts of the country where they don’t need to deal with snow loads, it’s acceptable to use 3/8″ roof sheathing, which means it’s also acceptable to use 1″ roofing nails on asphalt shingles. A 1″ nail will fully penetrate through 3/8″ roof sheathing, but it won’t fully penetrate 1/2″ sheathing.

Should you be able to see roofing nails?

Yes, and there are two types of nails that are normal to see in an attic: 1) The ring-shank nails used to secure asphalt shingles to the plywood or OSB roof sheathing typically penetrate into the attic 1/4” or more.

How long should nails be for 2 layers of shingles?

Layers. If you are putting a layer of asphalt shingles over an existing layer of asphalt shingles on to a 3/4-inch deck or a plank deck then you should be using 1 1/2-inch nails. If your decking is less than 3/4 inch then a 1 1/2-inch nail will suffice.

How many nails do I need for roofing?

Roofing Nails Generally, you should use four nails per shingle in the field of the roof, and 5 nails per starter shingle. For regular three-tab shingles, this would require 320 nails per square for field shingles.

Why do roofers use nails instead of screws?

Nails are often preferred for structural joining, including framing walls, because they are more flexible under pressure, whereas screws can snap. Nails are also called upon when securing plywood sheathing for exterior walls, installing hardwood floors, and attaching siding and roofing.

What is the shortest roofing nail?

You are required to penetrate (per code) into the sheathing 3/4 of an inch with your nail, meaning the smallest is 13/16, or for simplicity 7/8 is realistically the smallest you should use. So 5/8″ is the shortest nail made for roofs, however to use them is a code violation the majority of the time.

Should roof nails go through plywood?

Roofing nails should be long enough to penetrate the roofing material and go 19 mm into OSB, solid wood, plywood or non-veneer wood decking, or through thickness of decking, whichever is less. … Some situations allow nails with less penetration above exposed soffits if extra nails are used.

Article first time published on

What size nails do I need?

The accepted rule of thumb is the nail length should be 21/2 times the thickness of the wood you are nailing through. Thus, for 1-inch-thick material, you would use an 8-penny nail and for 2-inch-thick material, you’d use a 16-penny nail.

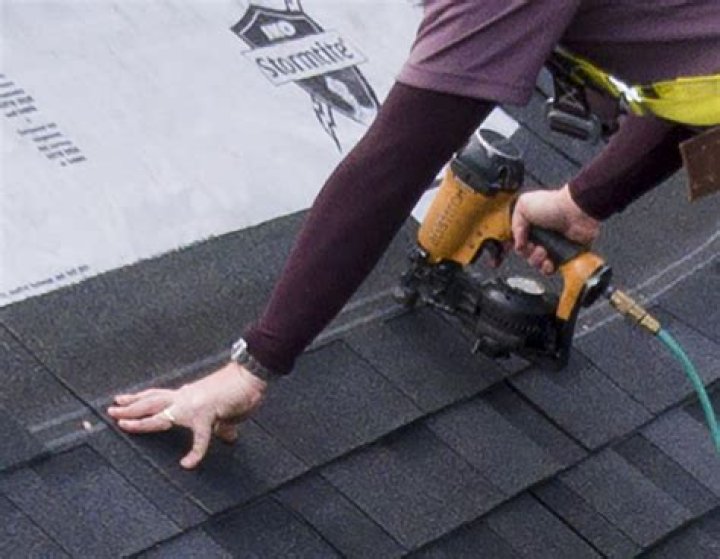

Is it better to hand nail shingles?

Hand nailing a roof isn’t better than using a nail gun and takes much longer for the roofer to do. That’s why most roofers use nail guns to achieve quality, long-lasting results. Talk with a roofing contractor near you about essential roofing materials and what process they use for a new roof or repair project.

How many nails do I need for 20 bundles of shingles?

Shingle manufacturers recommend using four nails per shingle in the main part of the roof and five nails per shingle in the first row, says Owens Corning. This amounts to an average of 320 nails per square, or 100 square feet. In high-wind areas, you need five nails per shingle, or 480 nails per square.

Is it OK to put 2 layers of shingles?

Two layers of shingles trap more heat, which in turn damages the shingles and shortens the life span of the roof. … Adding a second layer could compromise the structure of your roof. Problems fixing leaks: A second layer of shingles only complicates the job when a roofer is trying to fix a leak.

Are roof nail pops normal?

It really is not uncommon to have a few nail pops, but left unattended, the roofing system will be compromised, and water will penetrate the wood causing leaks and interior damage. There are lots of reasons why nail pops can occur, but the important thing is to take care of them as soon as you notice raised shingles.

What nails do you use for roofing felt?

Galvanised nails can be used in a wide range of applications, but are most commonly used in the installation of asphalt shingles and felt on outbuildings, sheds and more – wherever adverse weather conditions are common, galvanised nails are a good choice.

How long should nails be for framing?

The best nails for framing are 3 1/2 inches long. These are called 16-d, or “16-penny,” nails.

How many nails should you put in a shingle?

In most cases, 4 nails are adequate. Position the nails appropriately according to the shingle installation instructions. Align shingles properly to avoid nail exposure.

Are screws stronger than nails?

When deciding between nails and screws, keep in mind that nails are less brittle, so they provide greater shear strength. … Screws, on the other hand, may not be as forgiving, but their threaded shafts hold better in wood and draw boards together much more tightly and they have greater tensile strength.

Should I paint the underside of my roof?

To provide the maximum protection for a roof overhang and to reduce future peeling, the area should be painted with two coats of primer or undercoatings containing protective additives designed for these areas that resist contaminant buildup.

How do you cover exposed nails in the attic?

Leave a hardhat or bump helmet (lighter version of a hardhat) by the attic hatch. Put it on when you enter; take it off when you leave. I stick a wine cork on each nail. Thin (1/4″) plywood or OSB across the bottom of the rafters would work well.

How do you measure nail length?

The length is measured from the lowest point by the cuticle area to the highest point at the free edge/tip. The width is measured side to side with the C curve of the nail at the widest part of the nail.

How do nail sizes work?

Today, the penny system refers specifically to nail length. A 2d nail is 1 inch long, for example, while a 16d nail is 3 1/2 inches long. Each higher number in the penny system represents a 1/4-inch length increase, up to a 12d nail (3 1/4 inches long).

How long is a 12 penny nail?

So, a 2d nail is 1 inch long. More common nail sizes: a 4d nail measures 1.5 inches, a 6d nail is 2 inches long, an 8d nail is 2.5 inches long, a 12d nail is 3.25 inches long, and 16d nails are 3.5 inches long. Every increase or decrease in number means the length change in 1/4 inch.

How much should shingles overlap drip edge?

Shingles should not extend more than 3/4” (19 mm) past the drip edge. If shingles overhang the edge of the roof by more than 3/4” (19 mm), then they are not supported and may crack and break off. In addition, the wind resistance at the roof edge may be compromised.

Is it OK to lay shingles in the rain?

Installing roof shingles can actually be done even when it is raining. … It is counter-intuitive to be reroofing under the rain since it defeats the purpose of your roof. It’s highly recommended that homeowners should repair and replace their roof during a sunny day and when their roof is dry.

Can I use a brad nailer for roofing?

Large-body nailers typically include framing nailers and roofing nailers. These nailers are used for more technical projects such as framing out a basement or installing roofing shingles. … For woodworking projects, a brad nailer is a good choice.
