9.1 Is a Dado Blade Necessary for Woodworking Projects? It is not necessary for woodworking projects, but it can make your job easier in many situations. If you need to cut joints used to join two wooden components together, a dado blade can do a reliable job.

Why are dado stacks illegal?

Dado sets or stacks are not awarded a CE mark and not considered safe in the EU due the dangers mentioned previously. The main reasons are because to use them the blade guard and riving knife have to be removed. These are two safety features that are essential for the safe use of a table saw.

Do all table saws use dado blades?

Many table saws accept dado blades with a maximum width of 13/16 inches. Dust port: Table saws produce a lot of sawdust, but table saws with cabinets keep dust fairly well-contained. On all types of table saws, look for a dust port if you want to connect to a dust collection system as you cut.

Why are stacked dado blades illegal in Europe?

Why are dado blades banned in the UK and the EU? Because table saws aren’t allowed to operate without the safety equipment installed.

Can you put dado blade on circular saw?

Dado blades are usually thicker than circular saws since they have teeth on both sides of them as well. … Another problem with using dado blades on circular saws is that they have teeth that are up to 0.325″ in depth. So, these could damage the machine and even cut through its body if you do not use them properly.

Can you use an 8 inch dado blade on a 10 inch table saw?

As long as the diameter of the arbor hole on the stacked dado blade set matches the arbor diameter of your table saw or radial-arm saw—and the arbor is long enough for a dado blade—you can use an 8-inch dado blade on a 10-inch table saw.

Can I use a dado blade on a miter saw?

Not everyone knows this, but you can make dadoes on your miter saw. Yep, on your miter saw. No need to put a dado head on your table saw, or set up a router bit in a hand-held router or on a router table. If your miter saw has the right flip down stop, you can use it to make dadoes.

Why do you need a miter saw?

Power miter saws are designed to make angled cuts for moulding, trim work, rafters and other general carpentry applications. The saws also make straight crosscuts and, when equipped with the right blade, the versatility of a miter saw is an important part of a tool arsenal for professional carpenters as well as DIYers.

Can you use a dado blade without a throat plate?

Making inserts is easy, and if you are using any kind of a dado blade or cutting widths, you need to have throat plate that is at least close to the width you are cutting, it doesn’t necessarily need to be a perfect fit, but it should be close in order to be a safety benefit …

Are dado blades illegal in Australia?

Yes, they are. If you can buy it at Bunnings it must be legal.

Article first time published on

Can you put a dado blade on a Dewalt table saw?

The DEWALT DWE7402DI Dado Throatplate for 10″ Portable Table Saw allows for use of stacked dado cutters. This insert is designed to be used with DWE7490 and DWE7491 Table saw versions .

Can Dewalt DWE7485 use dado blades?

Despite the smaller saw blade, the DWE7485 weighs 10 lbs. … Like the other DeWALT job site saws, you cannot add a dado stack. This isn’t exclusive to this model, but that’s a deal breaker to a lot of woodworkers.

Can I use a dado blade on my Ryobi table saw?

A: I use a stacked dado with my Ryobi Table saw. Works fine enough for the level of cabinet work I do.

How deep should you cut a dado?

The dado depth should be no more than one-half the thickness of the stock being dadoed, and its depth should ideally be one-third the stock thickness. For example, in ¾” stock the dado should ideally be ¼” deep and no deeper than ⅜”.

Can you make a dado blade?

Instead of making a dado blade you can instead use a sled and then move the workpiece side to side on that to enlarge the dado. Make the outer cuts first and then you have a reference for where the blade should go; the middle cuts aren’t that important to get accurate.

How does a dado blade work on a table saw?

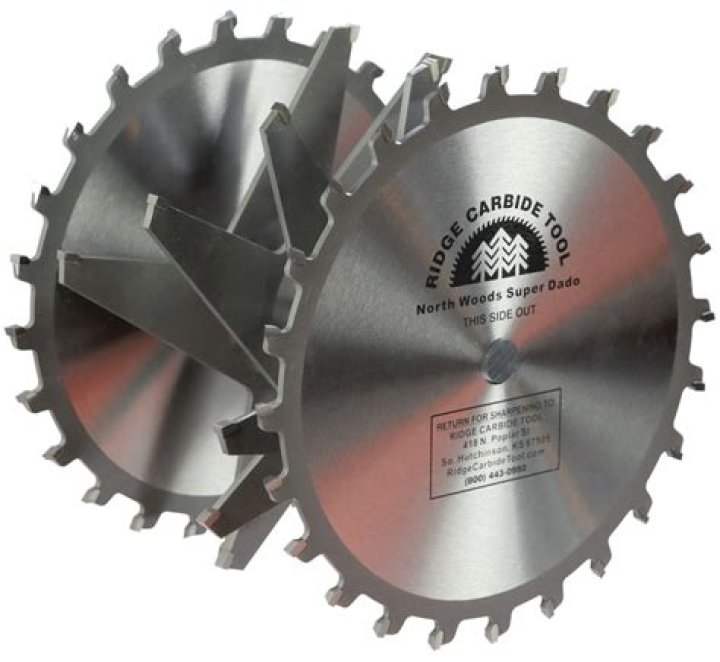

A dado set or dado blade is a type of circular saw blade, usually used with a table saw or radial arm saw, which is used to cut dadoes or grooves in woodworking. … As the dado set spins, the two outside blades cut the dado walls and the chippers remove the waste material in between and smooth the bottom of the dado.

How wide can a dado blade cut?

Dado Blade Sizes The maximum possible width is about 1 inch, and almost every measurement less than that is achievable. Dado blades that are 8 inches in diameter are made for a 10 inch saw since the blade is not for through cuts. You can also find blades with 6-inch and 7-inch diameters.

What's the difference between a dado and rabbet?

A rabbet is like a dado that’s missing a side. It’s essentially a notch cut into the edge of a board or piece of plywood. You can cut dadoes, grooves and rabbets in many different ways.

Can you use a 7-inch blade on a 10 inch saw?

Cutting Depth If you’re using a 7-inch blade in a 7 ¼ inch saw, or a 9-inch blade in a 10 inch saw, then the effect will be minimal. However, toss a 7 ¼ inch blade on a 10-inch saw and you might not be able to cut through your workpiece.

What is a zero clearance cut?

Zero-clearance inserts improve cut quality and make your saw safer to use. Zero-clearance slots are no wider than the blade, so off- cuts can’t get stuck and tear-out is dramatically reduced. Another benefit:You can use the saw kerf to line up your cuts.

Can I use a jigsaw instead of a miter saw?

Speaking of power tools, the Jigsaw reciprocates a straight blade, and a miter saw is a circular saw that can be set to make an angle cut, like making the 45° cuts for a picture frame. The jigsaw basically acts like a free hand scroll saw. Jigsaws work best for cutting softwood that’s no more than 1-1/2 in.

Can I use a jigsaw instead of a circular saw?

Although a jigsaw can be used for most of the tasks that a circular saw can perform, including straight cuts and cuts on a tilt, the jigsaw uses that really take advantage of the tool’s qualities are jobs such as kitchen fitting and joinery, with their frequent need for complex cuts.

What is similar to a miter saw?

The answer is table saw. A good table saw with a custom sled can perform miter, bevel and compound cuts, just like a miter saw can. The miter saw can do all these much faster and in a more compact space, but if you have access to a table saw and only need a miter saw occasionally, just stick with your table saw.

What is the space between two protruding teeth on a saw blade called?

Gullet (handsaw) The space between a saw’s teeth, where the saw dust is carried out. It is an equilateral triangle, just like the file that shapes the teeth.

How many teeth should a dado blade have?

The number of teeth on the scoring blade also affects the quality of the cut. You’ll find as few as 12 and as many as 42. This is a case where more is not necessarily better. I’ve found that 24-tooth scoring blades give excellent results.

Can I use a smaller blade on my table saw?

The cut quality that can be achieved with the smaller blade, even compared to some of the best 10” saw blades on the market, is noteworthy. The reason for this is simple physics; the smaller diameter blade means less runout, and less runout means a smoother cut.

Are wobble dado safe?

Frequently, wobble-style dado blades are considered because of a short arbor that will not safely handle a stacked dado blade set at its full width. That is a very real safety concern because the arbor nut must be fully seated on the shaft with at least one full thread protruding above it’s surface when tightened.

What is a dado router bit?

Carbide Top Bearing Dado Router Bit is a mortising bit ideal for constructing hinges and dadoes. Crafted from high-density carbide with titanium for durability, the bit features kick-back reducing for a safe cut. Requires a minimum chuck size of 1/2 in.

Can you stack saw blades to make a dado blade?

A dado by stacking cheap 7 1/2″ saw blades In the imag at left, fo rexample, I stacked a regular kerf skillsaw blade and a thin kerf skillsaw blade to get a 4 mm cut. Finally, I wouldn’t recommend stacking more than 4 blades at once. If you need a wider cut, just make successive cuts.

Can you use a dado blade on a Bosch table saw?

MaterialMetalOverall Length12.0Weight0.5lbWorks WithTable Saws 4000, 4100, 4100XCIncludes(1) – Dado Washer

Can you use a dado stack with a DeWALT job site table saw?

Make Dado Cuts Fast While the DeWALT DW745 will not work with a dado blade, DeWALT does have Jobsite table saws that do. Also, you can find other reliable jobsite table saws from respected manufacturers that will also accommodate your cutting needs.
