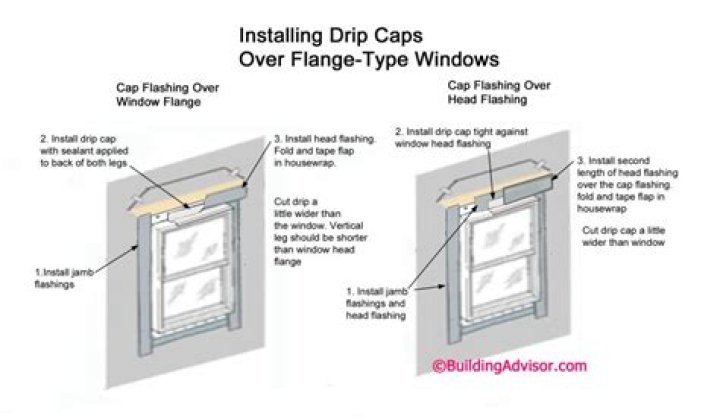

Drip caps are necessary only with flanged window installations, not insert windows. Drip caps are unnecessary when a window is protected by an eave, cantilevered floor or other overhang, but not all overhangs provide protection from the elements.

Do windows come with drip cap?

The drip cap will be included in the carton or temporarily attached to each joined unit. Windows with a horizontal joins (windows with transoms, a half circle or arch window) will not include a drip cap.

Do you need drip cap on vinyl windows?

When you put in a vinyl window should a drip cap always be used? … Yes you should always put a flashing over the top of a window, called a Drip Cap. If you rely on caulking to prevent water from coming into this joint, it will eventually leak, sooner if the window sticks slight out beyond the siding as it usually does.

Are drip cap and drip edge the same thing?

Drip cap is similar, sitting on top of doors and windows. A drip cap directs water away from house the same way drip edge does. Often made from wood, drip caps can rot which is why you might need to buy a replacement like the aluminum drip cap below.

What is the purpose of a drip cap?

Drip cap is an L-shaped flashing that goes over windows and doors after they’re installed (but before siding is installed) to prevent moisture from seeping in from above.

Does a shed roof need drip edge?

Your shed should be built to withstand the elements. That means repelling water in the most efficient way possible. Installing drip edge around the perimeter of the shed is the best way to keep water out and away from your shed.

Should drip edge be tight to fascia?

A vertical drip edge lip extends down roughly 1 5/8″ and as Steve points out, should not be set tight against the fascia board or water may run behind the gutter and down the fascia, inviting leaks and rot.

What is a rain drip guard?

Overhead drip or rain guards are typically installed on the header of a door frame, to deflect water from the gap at the top and bottom of doors.

Do you install drip edge before fascia?

The correct placement of a roof drip edge is on top of the roof’s exterior cover directly between the sheathing and the fascia board, which forms a drainage gap between the drip edge and the fascia board. As a result, the drainage improves water flow and protects the roof from potential water damage.

How do you waterproof existing windows?

1. Staple 15-pound builder’s felt along bottom of window opening.
2. Apply adhesive-backed waterproof membrane over the felt; cut the corners and fold the excess membrane over the rough sill.
3. Cut small pieces of waterproof membrane and cover voids in corners of opening.

Article first time published on

What is window drip edge?

Window & Door Drip Edge. AMICO Window & Door Drip Edge is used to provide added protection for system edges at the top of windows and doors. This product has a drip edge which helps direct water away from the building. A two-inch rear flange is provided.

How much does a box of drip edge weigh?

Part #LengthWeight EachAG-27910′-2″6.18#

What is fascia on a house?

The fascia is the attractive board along the side of the overhang and the roof that helps your roof appear finished. Your gutter sits atop the facia board. The fascia is also known as a “transition trim” between the home and the roofline. … Your soffit and fascia protect your roof and allow ventilation for your home.

How much is drip edge?

The standard drip edge used (aluminum) is going to be around $2.00 a linear foot, including labor to install. If you upgrade to a different metal (steel or copper), it’s going to cost even more.

What size does drip edge come in?

Roof drip edges are generally sold in 10.5-foot lengths, but they are occasionally sold in 8-foot lengths or smaller. The length of the overhang itself commonly ranges from 2 to 5 inches.

What is counter flashing on a roof?

Counter-flashing is designed to prevent moisture from entering behind the vertical flange of headwall or sidewall flashing. Sometimes, the exterior wall-covering material serves as the counter-flashing, and sometimes a separate counter-flashing might be installed.

What do you use for exterior window trim?

The most classic choice for exterior house trim is wood. Solid wood, as well as composite options, are available. Many homeowners prefer wood trim because of its natural look and feel but quality wood products are becoming scarcer, and therefore more expensive.

Do you put drip edge on before tar paper?

Installing roof drip edge flashing properly The best way is to install the roof drip edge only along the eaves first, then place ice-and-water barrier (in the snowbelt) or felt paper (underlayment) over the drip edge. This lets any water that gets on the roof run down the underlayment and over the drip edge.

Should drip edge go over gutter?

It is recommended that gutters are placed under or ‘behind’ the drip edge of your roof. … If gutters are installed below the drip edge, water can drip behind the gutter and cause damage to the wood supporting the gutter system.

Does drip edge go over or under felt?

Does Drip Edge Go Over or Under Felt? According to most building codes and manufacturer recommendations, the drip edge should be installed beneath the underlayment along the eaves of the roof.

How do you finish the edge of a shed roof?

1. For the final row, cut shingles into strips.
2. Ensure strips are wide enough to cover nails.
3. Install your strips.
4. Apply sealant over exposed nails on the last strip.
5. Use more sealant along the top edges of all shingle strips.

How far should a shed roof overhang?

Overhangs can vary from a few inches to a few feet depending on preference; however, the suggested width of an overhang is between 12” and 18” for eaves and no more than 8” for rakes. That said, overhangs can extend as far as 2′ without the need for external supports.

Why is water dripping between gutter and fascia?

Water Gets Behind the Gutter If water is dripping behind your gutter, it’s probably because it was installed without any flashing over the back of the gutter. The gutter apron will prevent the dripping. A gutter apron is a bent piece of flashing that tucks up under the shingles and over the gutter.

Can you put drip edge on after shingles?

Can Drip Edge Be Installed After Shingles? The most popular time to install a drip edge is when new shingles are installed. However, the drip edge can be installed at any time. The materials involved include: a ladder, a flat pry bar, a hammer, tin snips, eave stripping, and galvanized roofing nails.

Can you replace drip edge without removing shingles?

The drip edge is often replaced when new shingles are installed, but it can be replaced at any time. Asphalt roof shingles can become brittle in cold weather, so wait until a warm (but not hot) day to remove and replace eave stripping.

Where do you put drip edge on a roof?

Drip edge is installed around the whole perimeter of the roof. It is used to hold the underlayments down and create a watertight seal around the edge of the roof. Only the face of the metal is seen and is usually just white one to one and half inch stripe located right under the shingles and above the fascia.

Can you face nail drip edge?

Not really. The whole idea of attaching drip edge by nailing into the roof sheathing from above, is to avoid providing a pathway for water to reach the wood underneath. Face nailing with regular nails will work themselves lose and provide that path. There are times it can not be avoided.
