A turbocharger is basically an air pump, pushing extra oxygen into the engine as needed so it can burn more fuel to make more power.

At what RPM is turbo activated?

From 1-2,400 rpm, the primary turbocharger is activated; at 2,400-2,800 rpm, the second turbocharger is activated; and beyond 2,800 rpm, both turbochargers function. This system is recommended for diesel engines with displacements of 2.0 liters and above, and V engines.

Do turbos suck in air?

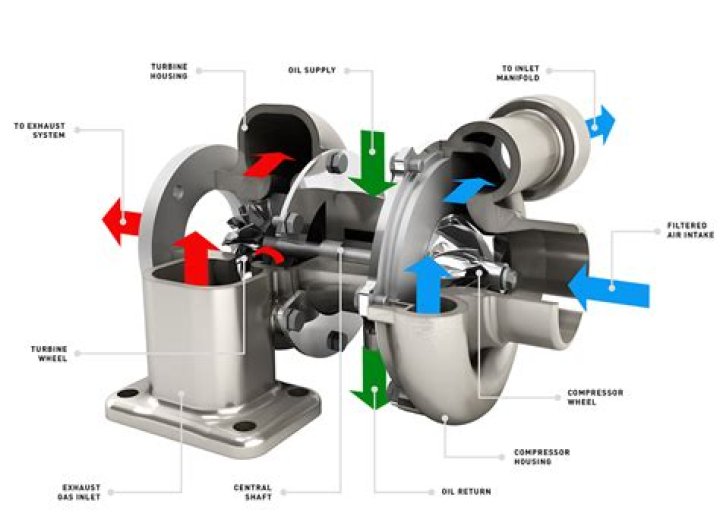

A turbo is made up of two halves joined together by a shaft. On one side, hot exhaust gasses spin the turbine that is connected to another turbine which sucks air in and compresses it into the engine.

How does a turbo airflow work?

On a turbocharged engine, when the exhaust backpressure between the turbine and the cylinder rises above the “boost” pressure on the intake side, exhaust can flow back into the cylinder and the intake passage during the overlap period between the exhaust and intake cycles.

Does a turbo spin at idle?

Basically a turbo will spin at idle rpm. But as the turbo requires high rpm and needs High horsepower to compress air they are basically doing nothing. The point at which a turbo starts creating positive pressure is not a set thing.

What is the disadvantage of turbocharger?

A turbocharger used without an intercooler can create extremely high heat in the engine compartment of the vehicle. This additional heat can lead to overheating breakdowns, melting of critical plastic engine components and fires.

Can you put turbo on a stock engine?

Yes, but it’s usually a very bad idea. Here’s why: The stock compression ratio and cooling system is wrong for a turbo. You’ll need to change the engine management system and at least some of the sensors.

How does a turbo work on a car engine?

The turbocharger on a car applies a very similar principle to a piston engine. It uses the exhaust gas to drive a turbine. This spins an air compressor that pushes extra air (and oxygen) into the cylinders, allowing them to burn more fuel each second.

Do turbos make boost at idle?

Boost pressure is usually very low at idle no load condition. Turbo is turning at lower speed due to smaller volume of exhaust going thru turbo. Your highest boost will happen at full load on engine and has the most volume going thru the turbo . A lot of engines now use a exhaust bypass to limit max boost pressure.

Where is the turbocharger compressor housing outlet connected?

A turbocharger housing includes a discharge outlet having a tubular configuration that extends tangentially from a peripheral portion of the housing and an externally threaded section adjacent the end of the discharge outlet to allow the discharge outlet to be connected either to a hose by a hose clamp or to a flanged …

Article first time published on

How much horsepower does a turbo add?

A turbocharger works with the exhaust system and can potentially give you gains of 70-150 horsepower. A supercharger is connected directly to the engine intake and could provide an extra 50-100 horsepower.

Do turbocharged engines last?

A turbocharged engine has more components than a naturally-aspirated (non-turbo) motor. … That said, there are many turbo engines that can last long. Take, for example, the turbodiesel in the Mark IV Volkswagen Golf / Jetta (from early 2000’s). Many of them are going well past 200K miles with good maintenance.

How does a wastegate on a turbo work?

A wastegate is essentially a device that bypasses some exhaust flow around the turbine section of a turbocharger to control maximum boost. … When preset pressure limits are exceeded, the actuator progressively opens the wastegate, allowing exhaust flow to bypass the turbine, thus regulating manifold boost pressure.

Do Turbos need to warm up?

Yes, turbo chargers in themselves need to be warmed up before driving and cooled down after driving. This is to save the bearings in the turbo assembly from deforming. Turbo chargers function at very high rpms, mostly in excess of 100k rpm. As a result, oil temperatures are quite high.

Why do turbo cars have lower redlines?

This produces a torque curve that drops off at higher engine speeds, and it makes the engine feel less powerful the harder you rev it! This is generally the opposite of a naturally aspirated engine which usually makes more power the harder you rev it, upto a point.

Does EGR valve effect turbo?

The EGR valve is likely to stick and become coked up on some applications. BTN Turbo warns that this can have a significant effect on turbocharger performance. A faulty EGR valve can result in excessive carbon/soot at the turbine end, causing the VNT mechanism to stick.

Can turbo lag be fixed?

There isn’t a single solution to eliminate turbo lag, although there are a lot of strategies that can help. Most importantly, though, is building a combination that has the converter, cam, compression ratio, displacement, gearing, and even correct braking system for the turbo that’s being used.

Why does my turbo kick in late?

WHAT CAUSES TURBO LAG? Turbo lag is caused by low engine speeds. Basically, when the car is coasting or power is not being applied, there are not enough exhaust gases to spool the turbine/s.

Can you turbo without a tune?

Quick Answer – Yes. But tuning is recommended when installing a new turbo. A turbocharger significantly increases the amount of air in the combustion chamber. Tuning is required to fix the air/fuel ratio and unlock the full horsepower potential.

Do you need forged pistons for a turbo?

Instead, moving to a forged piston, which is significantly stronger and more resistant to detonation, should be considered a must. Proper piston selection is more involved than simply lowering the compression ratio. A piston designed for boost will have more material in key areas.

Do you need an intercooler for a turbo?

Yes, an intercooler is required to install a turbocharged engine because an intercooler cools down compressed air coming from the turbo significantly – preventing them from prematurely detonating at an incorrect time. … Running Turbo without Intercooler. Boost gain without Intercooler.

Does turbo save fuel?

A turbocharger typically helps a car get better gas mileage because a smaller engine can be used to get the same amount of performance. Expect a turbocharged engine to be about 8% -10% more fuel efficient that the same engine that is not turbo equipped.

Is a supercharger better than a turbo?

While the turbo’s primary drawback is boost lag, the supercharger’s is efficiency. Because a supercharger uses the engine’s own power to spin itself, it siphons power—more and more of it as engine revs climb. Supercharged engines tend to be less fuel efficient for this reason.

Can you put a turbo in a 4 cylinder?

Use a boost controller in turbocharged vehicles. Many four cylinder sports cars now come equipped with turbochargers. These turbochargers produce more pressure than regular atmospheric air can, forcing more air into the engine than would otherwise be possible.

What is normal turbo boost pressure?

The typical boost provided by a turbocharger is 6 to 8 pounds per square inch (psi). Since normal atmospheric pressure is 14.7 psi at sea level, you can see that you are getting about 50 percent more air into the engine.

How does boost work on turbo?

Boost is positive pressure created by a turbo or supercharger. It forces more air into the engine. This can be matched with more fuel, to create a bigger bang inside the cylinders – resulting in more power.

What is the maximum boost pressure for a turbocharger?

The maximum boost pressure (relative) is around 1.5 bar for passenger vehicles, going up to 2.5 – 3.0 bar for high performance engines.

Does the wastegate control boost?

By controlling and limiting the speed of the turbine, the wastegate regulates the boost pressure provided by the turbocharger. By preventing the boost pressure from rising indefinitely, the wastegate protects the turbocharger and the engine from damage.

What component rotates in the compressor housing of a turbocharger?

The compressor wheel sits inside the compressor housing, and is usually manufactured from lightweight aluminium. During operation, this wheel spins at high speed, pulling in air, before compressing and pressurising it, and forcing this air through the spiral shaped compressor housing and into the engine.

What is surging of turbocharger?

Turbocharger surging may be defined as a high pitch vibration of audible level coming from the blower end or compressor end of the turbocharger.

Why would a turbo not boost?

The cause of low turbo boost pressure can be a result of a restricted exhaust as a result of having the turbo turbine connected and obstructing it. … If you notice a difference in the way that your engine is delivering power to your drive, check the turbo hoses for leaks or loose connections).
