The blower motor is powered by a fuse-like device called a relay. If your heater or air conditioner does not blow air through the vents, this could indicate that the blower motor fuse has probably blown. While replacement is easy, the exact location of your blower motor fuse may vary from vehicle to vehicle.

How do I know if my blower motor fuse is bad?

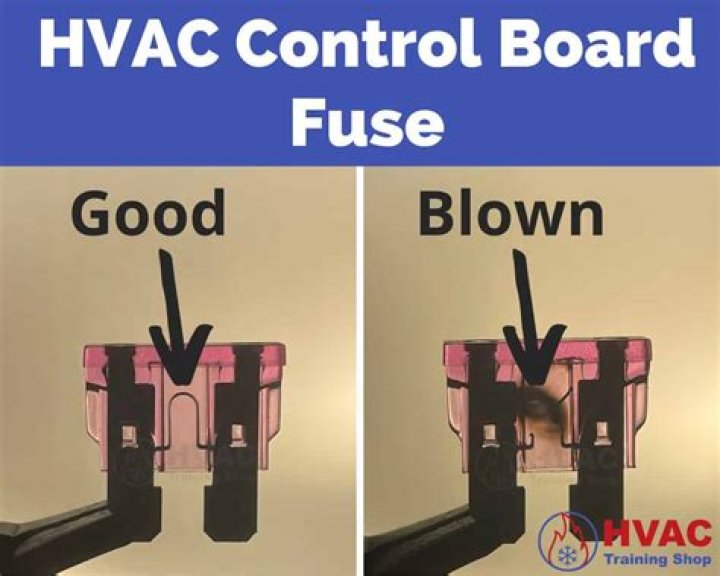

Use voltmeter or ohmmeter to check for a blown fuse. If you find one, replace it. Start car and see if blower motor works. If fuse blows again, check for loose circuits.

Where is the blower motor relay located?

The blower motor relay is generally located in the under-hood fuse box or in the under-dash fuse box. A blown fuse can mimic relay failure.

Where is the fuse for the blower motor resistor?

To protect the blower motor power circuit, a 20-, 25- or 30-amp fuse is usually located in the fuse panel under the dash.

What can cause a blower motor to stop working?

In most cases, a blower motor resistor fails due to corrosion or overheating. Sometimes, the mechanical resistance to the motor rotation causes an excessive electric current that can overheat and prematurely damage the blower motor resistor.

Where is the fan fuse?

If you don’t see one that says fan or cooling fan, you will need to find the cabin fuse box. This is located in different places, again dependent on the manufacturer and model. Some times it is located behind the glove compartment, sometimes on the lower, left end of the dash board.

Why has my blower stopped working?

If the heater isn’t blowing any air, a faulty blower motor or electrical connection might be the problem. … If the blower doesn’t receive power, check that the blower fuse isn’t blown. A blown fuse often indicates an underlying problem, so never replace one with a larger fuse to prevent it from blowing out again.

Where is the blower motor switch?

The blower motor is the electrical switch on the interior of a vehicle that allows the driver to control the vehicle’s heating and air conditioning system. It is usually built into the the same control panel that houses all of the AC system controls, and is labeled with numbers and symbols to indicate blower fan speed.

How do I change a fan fuse?

1. Disconnect the fan from power.
2. Remove the four screws to open the electronics cover.
3. Gently twist and pull out the fuse holder and replace the fuse.
4. Reinstall the fuse holder.
5. Reattach the electronics cover.

Can you fix a blower motor?

There are a number of things that can go wrong with your heating system, but if the air stops blowing altogether and the same is true on cold air settings, a blower motor replacement is likely in order. The good news is that it’s a fairly straight forward repair.

Article first time published on

How much does it cost to replace a blower motor?

Replacing a blower motor costs $450 on average with a typical range of $250 to $800. With a warranty, you might pay as little as $150 for labor alone. For high-end models, like those with large motors or access issues, you might pay as much as $2,000.

What is blower motor relay?

In a blower motor, the relay supplies the power that allows the fans to circulate warmed air. Essentially an on/off switch, the blower motor relay’s reactions start and end the heating process in HVAC systems by controlling the flow of current between the power source and the motor.

Why does my blower motor resistor keep burning out?

Trent, one of the biggest reasons for blower motor resistors to have shorten life is actually because of faulty blower motor drawing too many amps, some times melting wires/plugs, heating up resistors shortening their life.

Why does my blower only work on high?

Most car manufacturers use a series of resistors to make the heater blower motor run at different speeds. And when one or more of these resistors burn out, you’re usually left with only one heater blower motor speed—high. … Remove the screws, and swap out the resistor module.

How do you test a blower motor switch?

Test the switch. Plug the connector back in to the blower motor, and then trace the wire harness back to the connector closest to the blower motor switch, usually located under the dash. Disconnect the connector and set the multimeter to ohms.

How much is a blower resistor?

The average cost to replace the blower motor resistor at a repair shop is between $44 and $55 in parts and $70 in labor costs, for a total cost of around $114 to $125.

How do I know if my cooling fan relay is bad?

1. The engine runs hot or overheats. …
2. The cooling fans don’t work. …
3. The cooling fans keep running. …
4. Warning lights. …
5. Poor air conditioning performance. …
6. Swapping Relays. …
7. Measuring the Relay Coil’s Resistance. …
8. Listening for Noises.

Is there a fuse for radiator fan?

If your car’s radiator fan is non-functional, check your car’s user manual and locate the fuse for the radiator fan controller or the fan. The fan itself often uses a big fuse of around 50A, while there might also be a separate small fuse to the fan control module.

Where is the cooling fan relay located?

The fan relay is usually located near the bottom of the engine compartment on a metal frame member. The metal acts as a heat sink to keep the fan relay cool.

Do fans have fuses?

Check the Fan Fuse Many fans — especially large, industrial-strength ones — are equipped with a thermal fuse for safety. Like the circuit breakers in your house, these fuses are designed to break the electrical connection when too much electricity causes your fan to overheat.

What causes a thermal fuse to fail?

A thermal fuse will blow when the temperature gets too high, not when it’s drawing too much current. When it blows, the dryer stops generating heat. It’s necessary to replace it before the dryer will run again.

What happens when blower motor goes bad?

You might also hear ongoing whirring noises, or noises that change or get louder if you increase the fan speed. These are all signs of problems with the blower motor. In some cases, you may even notice smoke or smells of burning while driving, in which case you should pull over immediately.

Why does my blower motor fuse keep blowing?

Blown fuses If the blower motor relay develops any sort of problem that hinders its ability to properly limit and distribute power, it may cause the blower motor fuse to blow. Any sort of electrical spikes or excessive current from a bad relay will blow the fuse and cut power in order to protect the system.

How long do blower motors last?

The blower motor in your home or office should last anywhere from 10 to 20 years. Modern sealed bearings and sealed bushings can push the lifespan to its maximum of 20 years.

Is it hard to replace a blower motor?

If you don’t want to sweat or shiver, then find a good mechanic. The replacement of the blower motor is common and straightforward, so most shops will perform the repair — many on the same day.

How often do blower motors go out?

Even though the manufacturer states their blower motor will last two decades, we advise all clients to expect a 10-20-year life span due to age, use, and proactive maintenance.
