Roofing ice and water shield may look like traditional felt paper, but it’s vastly different in performance. Traditional felt paper does a very good job at stopping most leaks where water gets under shingles, tiles, metal or slate.

Do you put felt paper over ice and water shield?

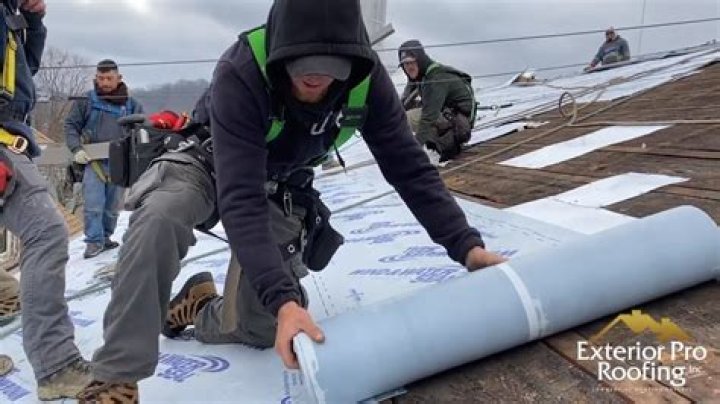

You should install ice and water protector before other underlayments, including roof felt. Around roof features like dormers and chimneys, you should place ice and water protector below flashing. If two courses of IKO’s ice and water protector are needed widthwise, you should apply the bottom course first.

Does ice shield go on before tar paper?

Method 1: Install the ice-barrier membrane according to the manufacturer’s instructions with the drip edge installed on top of the membrane. Then install regular roofing underlayment (tar paper) over the top of the drip edge (and over the ice barrier) and continuing all the way up the roof.

Does felt go over ice and water?

Felt over the ice and water, yes. Depending on the type of ice/water use, you may never get the shingles removed if you get to be so lucky as to reroof the thing in 20 yrs.

Does felt paper go over or under drip edge?

The best way is to install the roof drip edge only along the eaves first, then place ice-and-water barrier (in the snowbelt) or felt paper (underlayment) over the drip edge.

Is ice and water shield better than felt?

Ice and water shield is different from felt paper because it’s a rubberized membrane that sticks to itself and the wood roof sheathing. It creates a waterproof barrier to standing water if installed correctly. … Ice and water shield is a far superior product compared to basic roofing felt paper.

Do you need ice and water shield on steep roof?

Most homes that are situated in the colder regions on the States tend to have steeper slopes to counter snow that might settle on roofs. However, if you’re using low-sloped roofs, then it’s best to have ice and water protection to help prevent ice dams.

What does ice shield on a roof do?

Ice and water shield is a waterproof membrane used to protect your roof from ice and water damage. Its main purpose is to protect your roof decking if water gets underneath your roofing material (asphalt shingles, metal roof, etc.).

Can you nail through ice and water shield?

When nails penetrate the ice and water shield on the roof, the rubberized nature of the material creates a gasket effect on the shaft of the nail. … Not only does ice and water shield stop leaks caused by ice dams, but it also stops leaks created by fierce wind-driven rain.

Do you install drip edge before fascia?

The correct placement of a roof drip edge is on top of the roof’s exterior cover directly between the sheathing and the fascia board, which forms a drainage gap between the drip edge and the fascia board. As a result, the drainage improves water flow and protects the roof from potential water damage.

Article first time published on

Does underlayment go under drip edge?

According to most building codes and manufacturer recommendations, the drip edge should be installed beneath the underlayment along the eaves of the roof. But over the underlayment along the rake edges of the roof. Understanding the proper way to install the drip edge will only get you so far.

Where do you put ice and water shield?

1. In every valley.
2. Around every pipe, before the flashing is installed.
3. Along every wall, chimney, or skylight where flashing will be installed.
4. If you live in Northern Climates you would want it installed on the eaves of your home up to 24” inside the exterior wall.

What is the proper overhang for roof shingles?

Shingles should not extend more than 3/4” (19 mm) past the drip edge. If shingles overhang the edge of the roof by more than 3/4” (19 mm), then they are not supported and may crack and break off. In addition, the wind resistance at the roof edge may be compromised.

Which side of roofing felt goes down?

Direction. When laying sheets of tar paper, always lay the sticky, glossy side down. Tar paper’s two sides are noticeably different. One side is somewhat sticky, though don’t expect it to leave a glue-like residue on your hands.

Is felt paper required under shingles?

Answer: Roofing felt is a layer of tar paper installed beneath the shingles to provide a backup waterproof membrane in case of leakage. Felt, otherwise known as underpayment, is required when asphalt shingles are installed as a first layer of roofing or when they are applied over wood shingles or a built-up roof.

Can ice and water shield be used on entire roof?

You may apply an ice and water protector on your entire roof, but this can also be costly overall. Instead, install it first on critical areas of your roof before you consider covering the whole roof. Install your ice and water protector covering at least 3 feet from the edge of your roof.

Can ice and water shield be exposed to sunlight?

GCP’s underlayments (GRACE ICE & WATER SHIELD®, GRACE ICE & WATER SHIELD® HT, GRACE ULTRA™, GRACE SELLECT™, GCP granular underlayment, Roof Detail Membrane™, TRI-FLEX® and TRI-FLEX® 15) are not meant to be left permanently exposed to the sun.

How much do you overlap ice and water shield?

A single length of WaterGuard Rain & Ice works best, but if that isn’t possible, successive overlaps should be 6″. Firmly hand-roll the laps to ensure a complete, water- tight bond.

Is ice and water shield the same as synthetic underlayment?

Synthetic underlayment, like an ice and water shield, is quite a bit lighter, rolls out in large rolls, and is made of polypropylene, fiberglass, polyethylene, and polyester. … While they don’t seal the nails as ice and water shield does it is a superior underlayment when compared to traditional felt paper.

Is ice and water shield breathable?

In terms of breathability, they are similar to 30-pound roofing felt. Most ice and waterproofing membranes have good life expectancies once they are protected from UV. … They are not self-sealing underlayments and are installed in a similar fashion as 30-pound roofing felt.

Do I need ice and water shield on a shed?

As ice melts and the water freezes in a continual cycle, the water will creep up the roof and underneath the shingles. This is why it’s important to have Ice and Water Shield because it gives better protection barrier against ice.

Do all roof valleys need flashing?

Closed valleys aren’t required to have metal flashing, but they should have additional underlayment lining the valley, preferably a couple layers of roll roofing. You can usually see whether this has been done by looking carefully at the bottom edge of the valley.

How do you remove ice and water shield from roof?

Sometimes shingles come off the ice shield better when it is hot. In that case, let the area heat up a bit and then tear that area off, and then the shingles will separate from the ice shield. Sometimes shingles just won’t come up at all.

How long does Ice Shield last?

The original, fully-adhered roofing underlayment, Grace Ice & Water Shield®, now has an extended exposure limit of 90 days. For more than 35 years, Grace Ice & Water Shield® has been the brand that roofing contractors and architects trust most to specify and install on marquee projects around the world.

How thick is ice and water shield?

PropertyValueTest MethodThickness, membrane40 mil (1.02 mm)ASTM D3767 method ATensile strength, membrane250 psi (1720 kN/m2)ASTM D412 (Die C modified)Elongation, membrane250%ASTM D412 (Die C modified)Low temperature flexibilityUnaffected @ -20°F (-29°C)ASTM D1970

Is roofing underlayment waterproof?

Asphalt-saturated felt and synthetic underlayment are water-resistant. Rubberized asphalt underlayment is waterproof.

Why is water dripping between gutter and fascia?

If water is dripping behind your gutter, it’s probably because it was installed without any flashing over the back of the gutter. The gutter apron will prevent the dripping. A gutter apron is a bent piece of flashing that tucks up under the shingles and over the gutter. Home centers sell a gutter apron in 10-ft.

Does sheathing go over fascia?

When sheathing a roof, the first step is to snap a line so that the first row goes on straight. But if you snap it at 40 inches, then the sheathing will not project over the subfascia or true fascia. This opens the door to the possibility of water damage by letting gravity work against you.

How much do you overlap tar paper?

Lay roofing tar paper when you have at least one other person to help. Place approximately 5 feet of tar paper at a time. Overlap each piece 2 inches over the piece before it. This ensures a secure barrier against moisture.

Where does the drip edge go?

Drip edge is installed around the whole perimeter of the roof. It is used to hold the underlayments down and create a watertight seal around the edge of the roof. Only the face of the metal is seen and is usually just white one to one and half inch stripe located right under the shingles and above the fascia.

How long can roofing felt be exposed?

Perhaps, even being wet, the roofing felt sustains its integrity until it doesn’t get exposed to other elements for more than a week or two. It can even break-down in sunlight as well as due to the amount of moisture.
