The glass fiber within the cable is fragile and, although the cable has been designed to protect the fiber, it can be damaged more easily than a copper wire. The most common damage is a broken fiber, which is difficult to detect. But fibers can also be cracked from too much tension during cable pulling or despooling.

How do you test a fiber optic cable?

Send a light signal into the cable. While you’re doing this, watch the other end of the cable closely. If light is detectable in the fiber core, this means there are no breaks in the fiber, and that your cable is fit for use.

How fragile is a fiber optic cable?

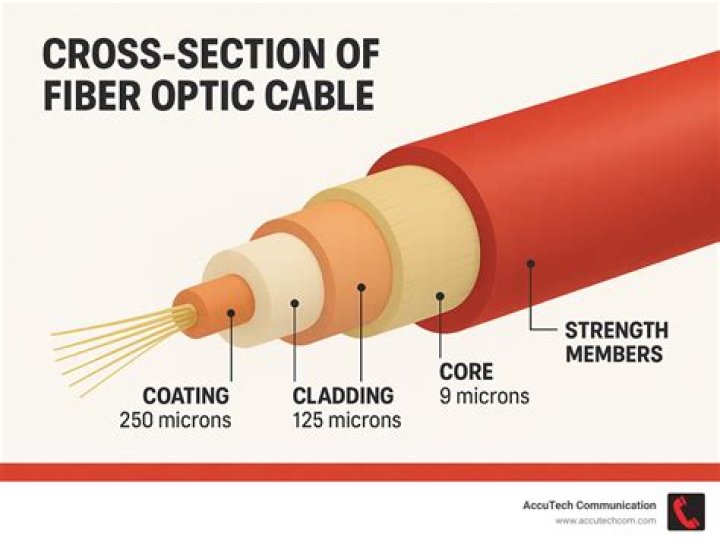

A fiber by itself is unprotected and extremely fragile, its only about 100 microns (millionths of a meter ) in diameter and very brittle. But the equivalent pull strength is like 100,000 pounds per square inch of cross-section. But you bend them sharply and they’ll break like a pretzel.

What causes fiber cable to break?

Fiber Optic Cable Cuts Cause #2: Weather & Natural Disasters So can fiber optic installations. Strong wind, rain, snow, hail and even an earthquake can easily sever fiber optic connections. The good news is that there is little else extreme weather can do to a fiber optic line apart from physically cutting it.

How do you know if you are losing fiber?

1. :: External Total Link Loss. …
2. Link Loss = [fiber length (km) x fiber attenuation per km] + [splice loss x # of splices] + [connector loss x # of connectors] + [safety margin] …
3. :: Estimate Fiber Distance. …
4. Fiber Length = ( [Optical budget] – [link loss] ) / [fiber loss/km]
5. Fiber Length = { [(min.

How much does it cost to repair a fiber optic line?

Fiber optic cable damage repair costs According to the North American Telecommunications Damage Prevention Council, the average cost to bury fiber optic cable in a rural area is $75,000 per mile. Repairing damaged telecom fiber can be just as expensive.

What can damage a fiber optic cable?

• Bad Weather & Natural Disasters. Bad weather like hurricanes, mud slides, flood and ice storms etc. …
• Animals Chew & Bite. The damages to fiber cables caused by animals are annoying. …
• Construction Damage. …
• Vehicle Damage. …
• Artificial Destruction. …
• Cable Protection, Repair and Recovery.

How do you fix a broken fiber optic cable?

1. Step 1: Use OTDR to Identify the Break in Fiber Optic Cable. …
2. Step 2: Use Fiber Optic Cutter to Cut Out the Damaged Fiber Optic Cable. …
3. Step 3: Strip the Fiber Optic Cable by Fiber Optic Stripper. …
4. Step 4: Trim Any Damage on the Optical Fiber Ends by High Precision Fiber Cleaver. …
5. Step 5: Clean the Striped Fiber Optic Cable.

How long does it take to repair a fiber optic cable?

The actual time to fix the break depends upon how many fibers does the cable have and on the type of splicing equipment. But overall, it can be between 1/2 hours to 1.5 hours.

Can optical cables break?

Like all other cables, the joint between the plug and the cable tubing can come undone. If this happens, the cable may stop working. Further, fiber optic cables are much more sensitive to crimping than standard wire cables. Even pinching the wire too much can cause the fiber optics to get damaged.

Article first time published on

Are fiber cables durable?

Fiber optic cable is extremely durable and intrinsically safe, with no risk of spark hazards because data is transferred via light and not electricity. Another benefit is its high bandwidth, low attenuation and complete electrical noise immunity.

How do you calculate fiber length?

Estimate Fiber Distance Fiber length = {[(-8.0dB) – (-34.0dB)] – [0.1dB × 5] – [0.75dB × 2] – [3.0dB]} / [0.4dB/km] = 52.5km. In this example, an estimated 52.5 km. distance is possible before dissipating the optical power to a value below the Rx sensitivity.

What is the average loss in fiber splice?

The observed average splice loss at 1310 nm is 0.054 dB with SD of 0.015 dB, while at 1550 nm the average splice loss and SD is 0.045 dB and 0.014 dB, respectively. The sample set included fibers with worst case MFD mismatch of 0.8 µm.

What is negative loss in fiber?

Negative loss is caused by the joining of two fibers with different backscatter coeffecients. A higher backscatter coefficient, on the second half of the connection, causes an increase in the back scatter on the other side of the event rather than the normal decrease resulting in what appears to be a negative loss.

What does Orl mean in fiber optics?

Return loss for the entire fiber under test, including fiber backscatter and reflections and relative to the source pulse, is called Optical Return Loss (ORL). It is also given in units of dB, but always a positive value, with values closer to 0 dB representing more total light reflected.

What is a fiber break?

Fiber break can occur due to intrinsic or extrinsic impurities present in the fiber and surface damage caused during fiber handling and processing. It is very unlikely to see post-proof-testing fiber break during cabling process unless tensile stress of 700 MPa or above is applied on the fiber.

How deep should Fibre optic cable be buried?

It requires only a shallow trench, typically about 15 cms deep, which does not penetrate beyond the surface layer of the road.

How deep are fiber optic cables buried?

Corning Cable Systems recommends that fiber optic cable be buried a minimum depth/cover of 30 inches (77 cm).

What does Fibre optic look like?

Fiber optics, or optical fibers, are long, thin strands of carefully drawn glass about the diameter of a human hair. These strands are arranged in bundles called optical cables. … So, the optical fiber transmits “data” by light to a receiving end, where the light signal is decoded as data.

Can you repair a cut fiber optic cable?

Fiber optic cables are repaired in the same way that they are spliced. Unlike conventional copper wire, a cut fiber cable cannot simply be twisted or crimped back together. If the fiber isn’t cut but damaged, then the bad section is removed and the remaining fiber must be carefully spliced.

How long does it take to fix an Internet line?

If it’s big, 3000-10,000 sq ft. It could be an all day job. It always comes down to what is existing there, if it’s any good and what needs to be run brand new. The more wiring that is existing and in good shape, the less time it takes.

Can damaged fiber optic cables be spliced?

Splicing fibers is commonly used to rejoin fiber optic cables when accidentally broken or to fuse two fibers together to create a fiber that is long enough for the required cable run. There are two accepted methods of splicing fibers: Mechanical splicing. Fusion splicing.

How can I tell if my optical cable is working?

Securely connect one end of the optical digital cable to the optical out on your TV. Connect the other end to the optical in on your home theater or stereo system. The optical cable works properly if you see a red light on both ends.

Why is my optical cable not working?

The optical cable is not securely connected. The optical cable may be faulty. The TV may require a system software (firmware) update. … The connected third-party sound bar or home theater system may not be compatible with the TV.

How often do fiber cables need to be replaced?

In general, these models give a probability of failure for any given fiber km over a chosen lifetime, of somewhere between 20 and 40 years. For correctly installed tier 1 fiber, the failure probability over such a timeframe is of the order of 1 in 100,000.

What happens if an optical fiber is bent too far?

Bends cause the light from the fiber cable core to leak out through the cladding, resulting in a weak signal. … Prolonged microbending also can lead to micro-cracking of the glass core and cladding which then, over time, can cause the fiber to go dark and not pass any light.
