A single fuse in the neutral conductor provides protection for neutral-to-phase faults, but not for phase-to-ground faults. This is one reason why a single fuse in the neutral is not permitted.

What will happen if fuse is connected to neutral wire?

The fuse wire is always connected in the live wire of the electric circuit because if the fuse is somehow put in the neutral wire in the circuit, then due to excessive flow of electric current when the fuse burns, current will stop flowing in the circuit, but the appliance will still remain connected to the high …

Should fuse be on live or neutral?

5 Answers. If the fuse is on the live side and it blows, only the conductor between supply point and fuse stays live. If the fuse is on the neutral the the live path is much longer and a short directly to the live sidecan cause a fire even if the neutral side fuse blows.

Why don't you fuse the neutral?

Since, neutral is not a live conductor coming from the source, disconnecting a neutral line can only open the current path through neutral. … If the circuit has any other conduction path, the complete current still has to flows through the fuse. Thus, a fuse connected in phase can provide all over protection.

Why do we take wire for ceiling rose?

This wire brings live current back to the rose to complete the loop. So; we have live current going down to the switch which, when switched on, will allow the current through the switch, back up to the rose allowing live current to reach the light fitting.

Do you put fuse before or after switch?

Actually the fuse should be placed after the switch by code. The reason is that the fuse needs to be replaced when it blows. The switch should not normally need to be replaced. Also by having the fuse after the switch the current is still limited by the fuse so that the current rating of the switch isn’t exceeded.

What fuse do I need for 12v?

if the device load is known in watts, divide the wattage by voltage-(i.e 100watts divided by 12v = 8.3 amps) -use 10 amp fuse.

In Which line are the fuses connected?

A fuse wire is attached with the main electrical line in series connection. The fuse and the component to be protected from overcurrent are always connected in series with each other to open up the entire circuit and prevent the current flow through the circuit in case the fuse blows up unexpectedly.

What is difference between fuse and circuit breaker?

Fuses and circuit breakers are both designed to interrupt the flow of electricity. But they operate through different mechanisms. The fuse works as a piece of metal that melts down when overheated. While a circuit breaker works by operating a switching mechanism when an overflow of electricity is detected.

Does a neutral wire have power?

Neutral wire carries the circuit back to the original power source. More specifically, neutral wire brings the circuit to a ground or busbar usually connected at the electrical panel. This gives currents circulation through your electrical system, which allows electricity to be fully utilized.

Article first time published on

Why are fuses used in the live wire of an electrical circuit?

Why should a fuse be placed in the live wire of a mains circuit? The fuse is connected to the live wire so that the appliance will not become charged (have a potential difference of 230 V) after the fuse has melted due to excessive current.

Can you have two fuses in series?

If you connect two or more than two fuses in series nothing will change. It functioning as the single one. Every fuse has some limit for current if it exceed it will burn.

Why do some appliances have no earth wire?

Some appliances, such as vacuum cleaners and electric drills, do not have an earth wire. This is because they have plastic casings, or they have been designed so that the live wire cannot touch the casing. As a result, the casing cannot give an electric shock, even if the wires inside become loose.

Why is a ceiling rose called a rose?

Etymology. The rose has symbolised secrecy since Roman times, due to a confused association with the Egyptian god Horus. For its associations with ceilings and confidentiality, refer to the Scottish Government’s Sub Rosa initiative.

What size fuse do I need for a 12V cigarette lighter?

Individual 12 volt accessories usually have fuses inside their cigarette plugs that are appropriately rated for the particular accessory. The fuse in the plug will normally blow before the 20 amp fuse does. The 20 amp fuse protects the wiring between the battery and the socket in case a short develops there.

What size fuse do I need for a cigarette lighter?

In most cases, cigarette lighter circuits use 15 amp fuses, but you can check the fuse box in your vehicle to be sure. You’ll then want to check the device you’re trying to plug in to see how much amperage it draws.

How many amps are there in 12 volts?

VoltageCurrentPower12 Volts0.8333 Amps10 Watts12 Volts1.25 Amps15 Watts12 Volts1.667 Amps20 Watts12 Volts2.083 Amps25 Watts

Should a switch be on the positive or negative side?

Technically, either way will work, although it’s more common to put the switch in the positive power lead. The reason is that components often have more than one path to ground, so putting a switch in the “primary” ground wire might not completely isolate the accessory from ground.

Should battery be close to fuse?

Put your Fuses Near the Battery Terminal A fuse is there to protect the wire, have it as close as possible to the battery terminal to protect the circuit beyond the fuse. … This applies to both the power carrying circuits and the balancing sensor wires. This is a good idea even where it is not a requirement for safety.

Do fuses have a direction?

No. Fuse is a conductor in normal circuit. So it’s without any direction or polarity and orentation. The fuse will cut off the current path due to the high temperature melting point of the fuse, regardless of the current direction.

Can I use a circuit-breaker instead of a fuse?

A circuit breaker can be used and an ON/OFF switch. A blown fuse can be easily replaced with the wrong size, or even jerry-rigged (using a wire or small copper bar to replace the fuse) creating a safety issue. … A circuit breaker can provide ground fault protection, a fuse cannot.

Why are circuit breakers better than fuses?

Circuit-breakers respond quicker than fuses. Circuit-breakers are more reliable. Circuit-breakers are more sensitive. Unlike fuses which only operate once and need to be replaced a circuit-breaker can be reset.

Which is better fuse or MCB?

Advantages of MCB over fuse:- MCB’s are more sensitive to current as compared to fuse, they can sense even a very slight fluctuation in voltage and take action very fast by tripping the gear down. If you are using MCB, you can easily find the faulty electrical appliance but this is not possible if you are using fuse.

Why are fuses connected in series?

A fuse is nothing more than a short length of wire designed to melt and separate in the event of excessive current. Fuses are always connected in series with the component(s) to be protected from overcurrent, so that when the fuse blows (opens) it will open the entire circuit and stop current through the component(s).

How is a fuse wire connected in a circuit?

A fuse is connected in series at the begining of the circuit. The purpose of a fuse is to prevent overcurrent from damaging the load or other parts of the circuit.

Is the fuse connected to the earth wire?

The Earth Wire Electrical appliances with metal cases usually contain an earth wire. … This larger current melts the fuse in the live wire breaking the circuit and isolating the appliance from the live wire. The earth wire and the fuse together protect the user and the appliance.

Can the neutral wire shock you?

So even the current returns through neutral (only from a connected load that completes the current flow circuit) you touching the neutral with a 0V cant get you a shock. But its not safe to touch neutral wire! It is possible that the path to ground on neutral is not very good.

Can you use the ground wire as a neutral?

Yes, the ground wire will function as a neutral wire and the ground wire and neutral wire are bonded together at the panelboard.

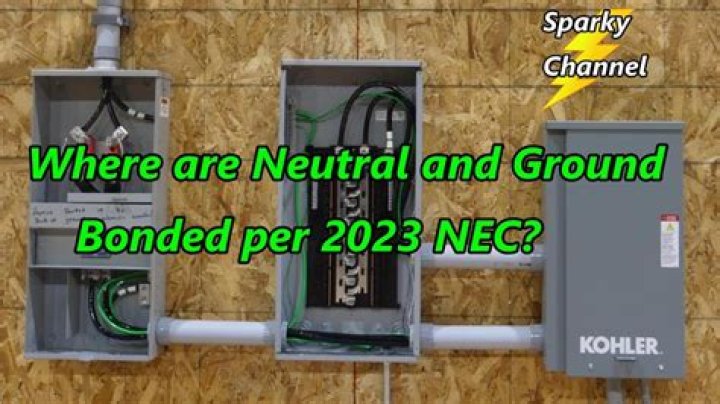

Can ground and neutral be on the same bar?

If the main service panel happens to be the same place that the grounded (neutral) conductor is bonded to the grounding electrode, then there is no problem mixing grounds and neutrals on the same bus bar (as long as there is an appropriate number of conductors terminated under each lug).

What two things does a fuse protect?

The fuse breaks the circuit if a fault in an appliance causes too much current to flow. This protects the wiring and the appliance if something goes wrong. The fuse contains a piece of wire that melts easily.

What will happen if we connect fuse and switch with earthing wire?

Well, that’s what used to happen before appliances were grounded. Today, the third ground (earth) wire is bonded to the the case of the appliance. If the hot wire contacts the case, it shorts to ground, just as if it had touched the neutral wire, and your fuse or circuit breaker will prevent current from flowing.
