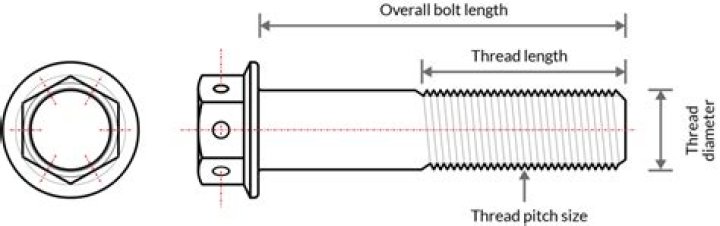

Fastener length is measured from where the material surface is assumed to be, to the end of the fastener. For fasteners where the head usually sits above the surface, the measurement is from directly under the head to the end of the fastener.

Does bolt length include head?

Does the length measurement of a bolt include the head? In most cases, when specifying the length of a headed bolt, the thickness of the bolt head is not included. For instance, if you were to order a ¾” x 24” hex head bolt, the bolt would measure 24” from under the head.

What does M10 bolt mean?

M10-1.0 x 20 M = This designates the fastener is a metric size. 10 = The nominal diameter in millimeters. 1.0 = The thread pitch, or distance between threads, in millimeters. 20 = The fastener’s length, in millimeters.

What is the length of a bolt?

Bolt Diameter (mm)Standard Thread Length (mm) *Bolts 125mm and shorterBolts longer than 125mm516226182472026

How is the size of bolts and screws measured?

The Length of Screws and Bolts Mostly the screws are flat on the bottom of the head and these are measured from the head to the tip. Countersunk screws are flat on the top of the head and it is measured from the top to the tip. The hex and hex washer head screws are flat on the top and the bottom.

What is nominal length of bolt?

The nominal length of a screw is the length or size which is used to define the length of the fastener, it is the name of the screw size, and not necessarily the overall length of the component.

How long is M8 bolt?

Bolt Diameter125mm and ShorterLonger Than 125mmM51622M61824M72026M82228

How are M bolts measured?

Do not measure the head of the bolt, measure the threaded part, outside of the threads. If your bolt is metric, then the diameter is stated using the letter “M”. For example, if your bolt has a diameter of 4mm then it is called an ‘M4 bolt’ if your bolt is imperial then it will be measured in inches.

How do I know what size nut and bolt to get?

A typical rule of thumb . . . Use a bolt diameter that is 1.5 – 2.5 times (up to three times) the thickness of the thinner material you are bolting together. So, for 1/8″ material, a 1/4″ diameter is often a good bolt choice. For 1/4″ thick material, perhaps a 3/8″ or 1/2″ bolt.

What does 8.8 mean on a bolt?

So, in English, a PC 8.8 bolt is a bolt with a nominal tensile strength of 800 MPa and a nominal yield strength that is 80% of the bolt’s nominal tensile strength, or 640 MPa.

Article first time published on

What size is M18 bolt?

Diameter (d)PitchHead Depth (k)M142mm8.8mmM162mm10mmM182.5mm11.5mmM202.5mm12.5mm

How are inch threads measured?

1. Measure an inch-long portion of the threaded area. Grab a ruler and lay it along the bolt or screw. …
2. Count the number of threads in 1 inch. …
3. Measure the diameter and the length of the threaded area. …
4. Plug the information into a standard measurement.

What is M10 bolt in inches?

MetricClosest InchM8-1.255/16-18 (Smaller)M10-1.53/8-16 (Smaller)M12-1.751/2-13 (Larger)M14-2.09/16-12 (Larger)

How do you measure a bolt head for a socket?

1. Insert the shank of the bolt into the holes in a bolt-sizing gauge. …
2. Locate the printed bolt size to the side of the correct hole on the gauge (for example, 1/2, 3/4 or in mm for metric bolts).
3. Locate the socket head in the socket set that has this size printed on its side.

What size head is on a 7/16 bolt?

DiameterHead Size7/16″5/8″1/2″3/4″9/16″13/16″5/8″15/16″

How do you calculate screw thread?

1. Measure screw diameter, or screw size, by measuring the width of the threaded part of the screw. This corresponds to the first number of the thread size. …
2. Measure thread spacing. This corresponds to the second number of the thread size.

What thread length means?

The axial distance through which the fully formed threads of both the nut and bolt are in contact is called the length of thread engagement.

How many threads are in a inch?

Bolt SizeThreads Per Inch (TPI)Coarse Thread UNCFine Thread UNF7/8″9141″812*1-1/8″712

Is M8 and 8mm the same?

M8 is not exactly 8mm but it is sufficient from a non-engineering point of view as long as the thread pitch is correct. Luckily, most commonly available metric bolts have the same pitch. Regarding tolerance for common uses it can also often be ignored.

How are bolts measured UK?

To measure the diameter of screws and bolts, you measure the distance from the outer thread on one side to the outer thread on the other side. This is called the major diameter and will usually be the proper size of the bolt.

What does M8 1.25 mean?

For metric fasteners, you will see a M8 x 1.25 or an M8 x 1. For thread pitch, the distance between two points is the second number meaning the higher the number the fewer threads there are. This means the M8 x 1.25 is the coarse threading and the M8 x 1 is the fine thread.

How do I choose a bolt size?

1. First, identify the load case.
2. Determine the necessary clamping force in the joint.
3. Choose the smallest bolt diameter that can support the clamp load.
4. Choose an effective bolt securing method.
5. Decide on the most appropriate tightening method.

How do you match a bolt with a nut?

Bolt, Nut and Washer Sizes Match this outer diameter of a bolt to the inner diameter of a nut and a washer. For SAE nuts and bolts, diameters of 1/4 inch and smaller are listed with a # and a whole number (a bolt with a major diameter of 3/16 inch is a #10 bolt). Smaller numbers indicate smaller diameters.

What diameter is M8 bolt?

So an M8 bolt would have a shaft diameter that’s slightly under 8mm which means that the bolt should fit through an 8mm hole.

What does Ty mean on a bolt?

The “TY” could be a distributor who has cheap bolts made in some other country (private label).

What does 3 lines on a bolt mean?

SAE J429 (Society of Automotive Engineers) bolts have radial lines, whereas ASTM (American Society for Testing and Materials) uses a combination of letters and numbers to indicate the grade. Three radial lines will indicate an SAE grade 5 fastener, while six radial lines will indicate an SAE grade 8 fastener.

Is a 4.8 bolt strong?

Bolts strength grade: Y is the yield strength ratio) as specified in the label. For grade 4.8, the tensile strength of the bolt is 400 MPa and the yield strength is 400*8/10=320 MPa.

What size is M18 in inches?

Tap sizeBasic major dia (mm)Basic major dia (inch)M16 x 1.516mm.6299M18 x 2.518mm.7087M18 x 1.518mm.7087M20 x 2.520mm.7874

Is M16 a 16mm?

M16 (16mm) Hex Nut – Steel (Pack of 10)

Are M8 and 5/16 the same?

Well, quick answer is no. They are not the same and they are not interchangeable, although they can work under certain circumstances. The most important part is understanding the meaning of M8 and 5/16 to refer to the size of a metric screw or bolt, so then we can see why they aren’t the same thing!
