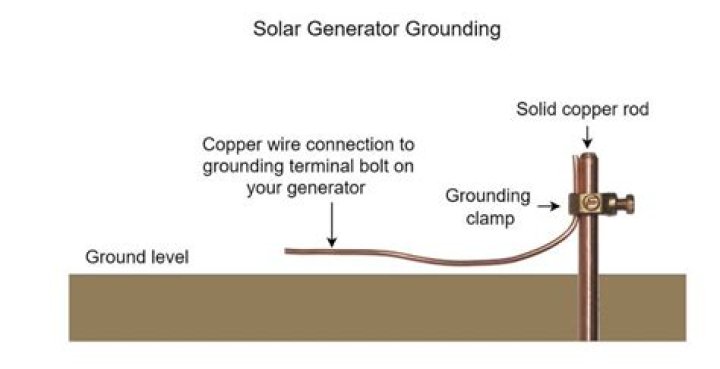

Ground rods must be pounded into the earth, then connected to the ground lug on the generator via a ground cable. The rod must be at least 8ft into the earth.

How deep does a ground bar need to be?

The only legal ground rod must be installed a minimum of 8-foot in the ground. The length of rod and pipe electrodes is located at 250.52(A)(5) in the 2017 National Electric Code (NEC).

Does a generator need an earth rod?

All generators need to be earthed unless floating. … But Earth can be, and is, used for fault protection with low-voltage generator based installations.

Does a portable generator need a ground rod?

If the portable generator is providing electric power to a structure by connection via a transfer switch to a structure (home, office, shop, trailer, or similar) it must be connected to a grounding electrode system, such as a driven ground rod.

How long should my ground rod be?

Ground Rod Length Ground rods come in both 8-foot and 10-foot lengths, with 8-foot being the most common size used in residential installations. As a rule, ground rods must be a minimum of eight feet long and should not be cut down.

How far should a ground rod stick out of the ground?

The NEC requires all driven rods to be a minimum eight feet in the earth and for multiple connected rods a minimum spacing of six feet between rods.

Where should a grounding rod be placed?

A ground rod is usually located very close to your main electrical service panel and is often made of copper or copper coated steel. They’re approximately ½” in diameter and eight to 10 feet in length. It must be electrically tied to your main service panel to provide an approved ground connection.

Why is earthing required for a generator?

The neutral point of a generator is usually earthed to facilitate protection of the stator winding and associated system. Earthing also prevents damaging transient overvoltages in the event of an arcing earth fault or ferroresonance.

Can I ground my generator to my house ground?

Do NOT separately ground your generator. It should tie in to your house’ ground the same way any appliance would. Using a separate ground at the generator can actually be dangerous if there is a nearby lightning strike or a failure of the local electrical utility’s infrastructure.

What gauge wire should I use to ground a generator?

The gauge of the grounding wire is important. The electric code specifies at least #6 or #8 copper wire for a domestic grounding rod. Though, for most portable generators this could be overkill.

Article first time published on

Should you ground a floating neutral generator?

When used as a stand-alone floating neutral generator, at least the frame of the generator must to be bonded to earth ground. … Standby generators must be connected thorough transfer switch and must be installed by a qualified electrician in accordance with article 250 of the National Electrical Code.

Why are 2 ground rods required?

Suppose you drive the first ground rod for a system. If it has a ground resistance of 25 ohms or more, 250.56 of the 2005 NEC requires you to drive a second rod. … Ground rods spaced less than two rod-lengths apart will interfere with each other because their effective resistance areas will overlap (Fig.

Should ground rod be buried?

There is no minimum burial depth required for a grounding electrode conductor. … It is a good idea to bury an exposed grounding electrode conductor in order to keep it out of harm’s way, but there is nothing in the NEC requiring a certain burial depth for the grounding electrode conductor.

Can you use rebar as a grounding rod?

Proper Grounding Rod In most cases, pipe or rebar can be used. The grounding rod needs to be made of galvanized steel and also needs to be at least four feet in length for best results.

How far from the house should a ground rod be?

Distance From House to Ground Rod To ensure there is no interference from the footing, the ground rod should be placed no closer than 2 feet from the exterior wall of the house.

How do you ground a generator?

Locate the grounding bolt on your generator and loosen the nut slightly. Strip the end of the copper wire one to two inches and then wrap it around the grounding bolt with your pliers. When done, tighten the nut to ensure the wire remains firmly in place.

Why does a grounding rod have to be 8 feet?

The NEC and UL require a ground rod to be at least 8 feet in length. This specification was obviously created by engineers that had never driven a ground rod or noticed that most people are not 8′ tall. Longer rods are more dangerous to install and bow more when being driven.

How much does a ground rod cost?

8′ ground rods cost about $11 apiece – 10′ if required in your area about $15 each. The grounding wire, assuming #4 bare copper wire, about $1.20/LF, 4 clamps at $5 ea – so assuming about 10′ run to each rod, then about $66-74 materials – say maybe $80-90 with markup.

Where do you connect the ground wire?

When running a ground wire, it should be connected to the designated place on the device, and then run to a safe location where the energy can be dispersed. This typically means having the wire lead into the earth, which is where this type of wire gets is name.

Do Generac generators need to be grounded?

All Generac permanent residential air-cooled generators are floating neutral generators. … All that he NEC requires in 250.35 for grounding a nonseparately derived system generator is that a conductor that provides a fault return path be installed with the generator feeder conductors.

What is floating neutral on generator?

What does “Floating Neutral” on My Generator mean? Most Champion Power Equipment generators have a “floating neutral”, meaning that the neutral circuit is not connected to the frame or to earth ground. This also means that both legs on the receptacle are hot legs, which is normal for floating neutral generators.

Is it possible that 100% winding of generator is protected against earth fault how *?

It is should be noted that, 100 % of the stator winding cannot be protected in resistance neutral earthing system. How much percentage of stator winding would be protected against earth fault, depends upon the value of earthing resistance and the setting of relay.

Why is generator neutral grounded?

Neutral grounding of generators is used to protect the generator and associated equipment against damage caused by abnormal electrical conditions, in order to: Minimizing damage to the stator core caused by internal ground faults. … Limiting mechanical stress on the generator for external ground faults.

Do I need to ground my generator when camping?

It is not always necessary to ground your generator. Most manufacturers bond the components to the generator’s frame which acts as a ground wire for you. You will need to ground the generator if you are plugging it into a wired circuit system or if you want to plug electrical appliances directly into the generator.

Do Honda generators need to be grounded?

You do not need to Ground the gensets… The Gensets are “grounded” thus the 3 prong receptacle…. ground can be the earth or in the case of portable generators, the frame of the generator which will serve as a large conducting body that serves in place of the earth.

Should neutral be grounded?

The power wire that is grounded is called the “neutral” wire because it is not dangerous with respect to exposed metal parts or plumbing. The “hot” wire gets its name because it is dangerous. The grounding of the neutral wire is not related to the operation of electrical equipment but is required for reasons of safety.

Can I use neutral as ground?

a ground and a neutral are both wires. unless they’re tied together with other circuits, and not a ‘home run’ back to the panel, there is no difference between the two where they both end up on the same bus bar in the box.

What is the difference between floating neutral and bonded neutral?

With a bonded neutral generator, the neutral is connected to the frame of the generator. … A floating neutral generator’s neutral circuit is not connected to the generator’s frame or the ground, meaning it is required to connect the neutral to your existing panel neutral.

Should ground and neutral be connected in panel?

When Should Grounds & Neutrals Be Connected in a SubPanel? The answer is never. Grounds and neutrals should only be connected at the last point of disconnect. This would be at main panels only.

What is the purpose of a floating neutral?

The floating neutral configuration is common for applications such as connection to a recreational vehicle and connection to home power where the transfer switch does not switch out the neutral to ground connection.

Can any wire be used as a ground wire?

The main types of grounding wire most used includes bare copper and gauged copper wire. … As a base, the wire contained within acts as a ground. Contractors for outdoor applications prefer this type of copper wire, as it is protected from the elements. Another commonly used type of grounding wires is gauged copper wire.
