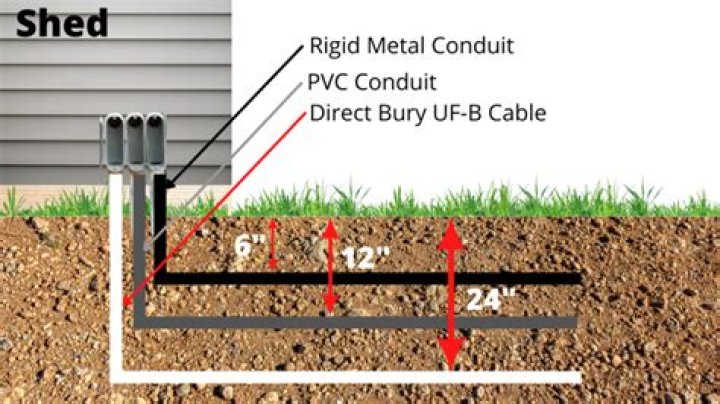

In general, bury metal conduits at least 6 inches below the soil surface. You may also run them at a depth of 4 inches under a 4-inch concrete slab. Under your driveway, the conduits must be below a depth of 18 inches, and under a public road or alleyway, they must be buried below 24 inches.

How deep should PVC pipe be?

12″ from the top of the pipe to the underside of the road surface is the minimum depth at which PVC pipe with traffic loading can be buried.

Can Schedule 40 PVC be buried?

Schedule 40 PVC Conduit is used in walls, floors and ceilings in accordance with NEC 352. According to NEC 352 it can also be buried directly into the earth, encased in concrete, and used in areas exposed to direct sunlight. … It is not designed for use above ground or in walls, floors or ceilings.

What is the minimum burial depth for PVC conduit under a 4 concrete slab?

What is the minimum depth for placing Schedule 40 PVC conduit below a concrete slab? A. If it’s under a building, there is no depth requirement. If it’s placed outside under a concrete slab, then the minimum cover is 4 inches [Table 300.5].

How deep do you bury Schedule 80 PVC?

Schedule 80 PVC needs to be buried 18″ to meet NEC table 300.5. The depth for PVC can be reduced to 12″ with a 2″ thick concrete cap (but it’s easier to just dig down 6 more inches). Schedule 80 pipe can be connected to structure above ground since you said it was listed sunlight resistant, so that is an option.

What is code for underground conduit?

Low-voltage (no more than 30 volts) wiring must be buried at least 6 inches deep. Buried wiring runs that transition from underground to above ground must be protected in conduit from the required cover depth or 18 inches to its termination point above ground, or at least 8 feet above grade.

Can PVC conduit be used underground?

PVC conduit provides protection for electrical work that is buried underground. … Available in a variety of thicknesses or grades, PVC is well suited for direct burial or above ground work. PVC conduit is also used for many electrical requirements. This product is flexible and durable and resists corrosion.

How do you bury PVC pipe underground?

Professionals suggest PVC pipe be laid above at least two inches of underlayment. Underlayment can be made of rocks, concrete or plastic. To calculate the depth of the trench, add two inches to the diameter of the pipe and then add 18 inches to the total. This will give you the depth of the trench in inches.

How deep is electrical buried?

Some low voltage underground circuits could be as shallow as 18 inches, while most higher voltage circuits will be deeper than 24 inches. If there are underground electrical circuits on your property, pay attention to where they are located.

Can PVC be run in concrete?

NO. you should never pour concrete on any pvc conduit or water pipes unless you wrap the pipes with a form wrap to allow expansion and contraction and any penetration thru the concrete or install a 4in or 6in sleeve under the slab to pass the pipes though.

Article first time published on

What is the minimum cover required for a conduit under a building?

Unless covered by concrete or installed directly under a building, the minimum cover depth in column 5 is six inches.

Can you install PVC conduit in concrete?

Can pvc conduit be used in concrete or is rigid required? PVC is acceptable in most circumstances. Flexible PVC (ENT “smurf tube”) is also acceptable in most circumstances.

Which is stronger schedule 40 or 80 PVC pipe?

Schedule 80 pipe is designed with a thicker wall. This means the pipe is thicker and stronger, and as a result it can handle higher pressures. … Schedule 40 PVC pipe is strong, rigid, and can handle pressure applications. For jobs that require a higher pressurization though, schedule 80 pipe is better suited.

What is the difference between Schedule 40 and Schedule 80?

Schedule 40 pipe has thinner walls, so it is best for applications involving relatively low water pressure. Schedule 80 pipe has thicker walls and is able to withstand higher PSI (pounds per square inch). This makes it ideal for industrial and chemical applications.

How long does buried PVC pipe last?

As one of the most-used plumbing materials, PVC pipe is known for being very durable and long-lasting. In fact, PVC pipes last approximately 100 years.

What is the difference between white PVC and GREY PVC?

Grey PVC is used as electrical conduit and is better suited for sunlight resistance. The fittings for this type of pipe are made to pull wires into and not intended for containing pressured fluids. White is for plumbing applications. Both use the same solvents and glues.

What is the best conduit to use underground?

We typically prefer using PVC conduit when running power to a remote location underground. That gives you a lot more protection over direct burial cable in the long run.

How far can you run 12 2 wire underground?

You can run 50′ on a 12 gauge wire. I can’t imagine why you would want to run a number 12 any further than 50′. If you have to go that far you are better to have 30–50+ amp with 2 phases’ and a sub panel with breakers. This way you can run multiple things.

Can you use twin and earth outside?

T&E has been in use outdoors and over cateneries for decades without any issues whatsoever. Agreed. If fact the (16th Ed) OSG in appendix 3 says T&E is generally suitable “on exterior surface walls, boundary walls and the like” with just a comment that protection from sunlight may be necessary.

What kind of electrical wire can be buried underground in conduit?

THWN-2 wire, for example, is a standard type for running through underground conduit. Use thick-walled conduit at least 3/4 inch in diameter for this application. Never use thin-wall EMT conduit for underground applications.

Does outdoor wiring need to be in conduit?

Generally speaking, yes, outdoor wiring needs to be in conduit to protect it from physical damage. Type UF cable needs conduit when exposed, no need for conduit on the buried sections.

How deep are ATT lines buried?

Fiber to the home would be 6-12 inches below ground. Main lines along the street 2-3 feet or deeper.

How deep do they bury gas lines?

The depth at which gas lines are buried is regulated by local governments. As a result, the depth values of gas lines allowed depends on the state or county where the lines are buried. On average, main gas lines are usually found at least 24 inches deep, while service lines are usually 18 inches deep.

Can you bury an outdoor extension cord?

In general, you can’t bury the outside extension cord. Using a standard extension cord is designed initially only for temporary use. Instead, you can use a more suitable cable type for any permanent outdoor purposes, such as a direct burial UF cable.

Is PVC pipe good for underground drainage?

The most popular reason for using PVC pipe in underground plumbing is that it is flexible, lightweight and easy to handle. … Unlike some other pipes, PVC does not rust, scale, pit or corrode. It is good for most warm and cold water applications. Plus, PVC works well for high water pressure.

Which pipe is best for underground drainage?

Polyvinyl Chloride pipes are the most commonly used pipes for any drainage project. Due to the material’s malleable properties, PVC pipes can come in almost any size. These types of pipes are great for drainage situations where the water and environment exert a great deal of pressure and weight.

How do you protect PVC pipe from concrete?

Pack the concrete around the PVC pipe to prevent air gaps. Wear protective gloves. Pack the layer directly underneath the PVC pipe; it should be packed tight to create a solid, firm foundation and to prevent cracking during temperature fluctuations. Always aim for a complete seal around the PVC pipe.

Does concrete deteriorate PVC pipe?

2 Answers. If the pipe is totally encased in concrete small surface cracks would not affect. If the cracks go all the way through, like a total crack in a foundation, it could also damage the pipe. If the concrete has shifted along the crack line then the pipe is going to be damaged.

Is it permissible to bury rigid metal conduit?

If the wiring method is rigid metal conduit (RMC) then that column only requires a 6 inch burial depth (even without meeting column 4), unless we are in a location such as a one family driveway then the minimum burial depth is 12 inches If the circuit is in RMC under the same driveway without meeting all the conditions …

Is outdoor wire the same as underground wire?

Outdoor-rated cables are differentiated by their UV-resistant jackets. These types of cables are designed to be used outside, but not buried. … Technically outdoor-rated cables can be buried, as long as conduit is used. Keep in mind however that direct burial cables are designed specifically for this purpose.

What type of conduit can be buried in concrete?

Nonmetallic Conduit Some code-compliant PVC fittings can be used with ENT inside walls, floors, some ceilings or encased in concrete. Outdoor flexible nonmetallic tubing is strong, watertight, non-corrosive and weighs less. Metal or plastic boxes can be used with nonmetallic conduit.
