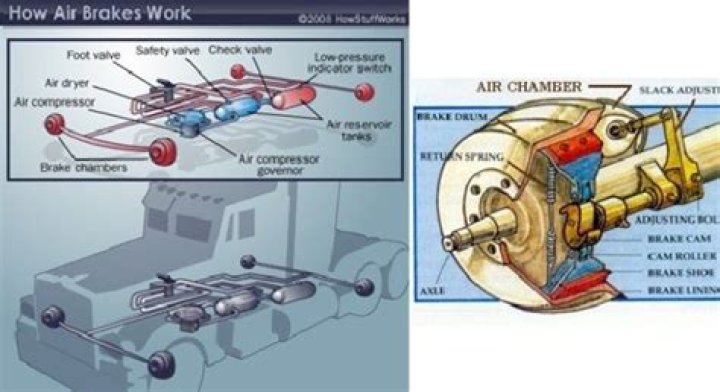

Air brakes work using compressed air instead of hydraulic fluid. … Air is pressurized by an engine-mounted compressor. The air compressor then pumps the air into the air storage tanks, which store the compressed air until it’s needed. Air pressure is used to apply the service brakes and release the parking brake.

Why do big trucks use air brakes?

Air brakes are used in heavy commercial vehicles due to their reliability. They have several advantages for large multi-trailer vehicles: The supply of air is unlimited, so the brake system can never run out of its operating fluid, as hydraulic brakes can. Minor leaks do not result in brake failures.

How do you release air brakes on a truck?

Press the yellow button labeled “Parking” while your foot is on the brake pedal. This will release the truck air brakes. Press in the red button labeled “Trailer” if a trailer is attached. This will release the trailer brakes.

What happens when air brakes fail?

What happens when air brakes fail? When the air brake system is not pressurized enough, a low-air pressure alarm will sound. In these cases, semi-trucks and trailers, airplanes, buses, trains, and large trucks (such as fire engines) are equipped with a back-up emergency braking system for use when air brakes fail.

Why is a jake brake so loud?

When the gas pedal is released, a type of vacuum is made in the throttle, creating a braking effect. … A compression release brake, also commonly known as a “jake brake,” opens the exhaust valves at the top of the compression stroke, creating a loud noise similar to the firing of a gun.

How do air brakes feel?

Air is much less dense when compared to the brake fluid. This means if air is in the lines it will compress too easily. When this happens, your brakes will feel too soft or even spongy.

Why do trucks release air?

It is caused mainly due to air passing through narrow tubings and entering the air tank. Trucks and buses use compressed air brakes as opposed to hydraulic brakes in cars. The air brake system needs compressor to compress air and RELEASE the brakes and braking is done by subsequently releasing air.

What do air brakes feel like?

Symptoms that can indicate you have air in your brake lines include the following: Brake pedal feels spongy when you press down. Brakes feel soft and not as effective as they usually are. Brake pedal depressed too much or goes to the floor.

What is the stab braking method?

Stab braking: Release the brakes when the wheels lock up. As soon as the wheels start rolling, put on the brakes fully again. It can take up to 1 second for the wheels to start rolling after you release the brakes. If you reapply the brakes before the wheels start rolling, the vehicle will not straighten out.

How do you check air brakes?

For safety, drivers should test the air-loss rate of the vehicle’s brake system. To test the air-loss rate of the brake system, release the spring brakes, establish normal air pressure and shut off the engine. Hold the brake pedal in the fully applied position and observe the air-pressure readings for one minute.

Article first time published on

What happens when a truck loses air pressure?

Air brakes are set up as a fail safe so that if the system loses adequate pressure (typically below 60psi ish but can vary) the brakes will lock and the truck can not move or at least in theory.

Why do air brakes lock up?

If the brake locks up, it’s usually the symptom of air pressure loss, slack adjuster out of adjustment, or a failed s- cam bushing. The root cause of the wheels locking up can be found by checking the whole brake system.

Can you manually release air brakes?

In certain emergency situations, like when an air brake system failure has occurred and you need to move your truck to a safe position, you may need to manually release the brakes to enable the vehicle to be moved.

Why is it called a Jacobs brake?

Where Does the Name Jake Brake Come From? The name Jake Brake comes from a product that, unsurprisingly, is named the Jacobs Engine Brake. The company that makes them, Jacobs Vehicle Systems, says that its system is a diesel engine retarder that uses the engine to help slow the vehicle.

Are Jake brakes illegal?

Jake braking is illegal in some areas due to the noise disturbance it produces; often resembling the sound of gunshots and in some areas could potentially cause environmental repercussions.

Why do trucks make hissing sounds?

Why do trucks and buses make hissing sounds when brakes are applied? – Quora. That is the sound of compressed air circulating in the brake system and pneumatic suspension of heavy vehicles. It is caused mainly due to air passing through narrow tubings and entering the air tank.

What are advantages of air brakes?

Air brakes are a lot easier to connect than hydraulic brakes and using air instead of hydraulic fluid prevents many potential malfunctions. For example, minor leaks in the brake lines won’t cause a complete failure of the system, and air brakes can even function despite major leaks.

Why are air brakes not used in cars?

Most cars use disk brakes which air pressure would not be sufficient to operate. Air brakes can freeze up in winter so they become inoperable until the temperature becomes above freezing, so that would be a drawback to the population that lives in colder winter regions. They would never buy a car with air brakes.

Will air in brake lines go away?

Question Answered: Will air in brake lines go away? No, not on its own. You will have to have someone bleed the brakes to get the air out of the lines. They do this by forcing brake fluid down the lines until the new brake fluid forces the air out of the lines.

How do you get air out of your brakes without bleeding?

1. Step 1: Find the bleeder. A screw and hose are located under the brake system and will be used to bleed the brake fluid. …
2. Step 2: Use the plastic hose. …
3. Step 3: Using the braking system. …
4. Step 4: Refilling the system. …
5. Step 5: Repeat the procedure. …
6. Step 6: Check the brakes.

What are retarders CDL?

CDL retarders are found on some commercial vehicles and are designed to help slow a vehicle and reduce the need to use your brakes. When used properly, the retarders reduce your brake wear and provide you with another option for slowing down.

What is snub braking?

“Snub braking” is one of many braking techniques used to control the speed of a tow vehicle and trailer when descending relatively long and/or steep grades. … The snub braking technique aims to reduce brake fade through brief moments of heavy brake input followed by a brief moment of coasting.

What is a spring brake?

Spring brakes are not air applied like service brakes. They apply when air pressure leaves the brake chamber and release when air pressure builds up in the chamber. Spring brakes use a different type of brake chamber from service brakes.

Do I need to bleed all 4 brakes?

It’s common practice to bleed all four brake lines after opening any one brake line. However, if the brake line you open is an independent brake line, then no, you don’t have to bleed all 4 brakes. … A common mistake when working on brakes is to mix incompatible brake fluid types.

How long should a truck take to build air pressure?

Air pressure build-up from 85 psi to 100 psi should take 45 seconds or less. While driving, observe the air pressure gauge during build-up to ensure proper air system operation.

What is the first step of the air brake test?

TEST 1: Parking brake test. Start the bus and let the air pressure build to at least 90 psi. Step on the brake pedal and put the bus into gear. Slowly take your foot off the brake and gently press the accelerator.

How long should a truck hold air pressure?

When the engine is at operating RPM, the pressure should build from 85 to 100 psi within 45 seconds in dual air systems (if the vehicle has larger than minimum air tanks, the buildup time can be longer and still be safe. Check the manufacturerʼs specifications).

What can happen if the air pressure gets too low in an air brake system?

Releasing the brakes lets some compressed air go out of the system, so the air pressure in the tanks is reduced. It must be made up by the air compressor. Pressing and releasing the pedal unnecessarily can let air out faster than the compressor can replace it. If the pressure gets too low, the brakes won’t work.

What causes air brakes not to release?

Binding trailer air brakes are often caused by the hand brake valve not delivering enough air pressure through to the trailer control valve to balance it off. … Restriction in the trailer service line causing the service brake pressure to not release completely when brakes are released.

At what weight are air brakes required?

For example, a person can drive a straight truck with a gross vehicle weight rating of 26,000 (under 26,001 lbs.) with air brakes, and no CDL is required. The “air brake” reference is commonly thought of as an “endorsement”.

How do you fix a locked up brake?

Take your foot off the brake pedal so your wheels can get enough traction to possibly unlock momentarily. Then reapply pressure to the brake if needed. Repeatedly (and quickly) press the brakes over and over until the brakes either disengage or bring you to a safe stop.
