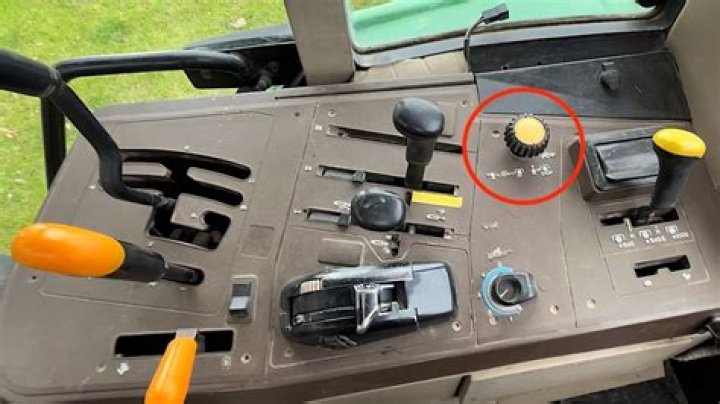

PTO can be engaged or disengaged without operating clutch. Push down and forward on PTO switch (A or B) to engage PTO clutch.

How do you engage the blades on a John Deere?

1. Turn the key to the “on” position, advance the throttle to half speed and allow the engine to warm up for 2 minutes. …
2. Lower the mower to the desired cutting height. …
3. Engage the mower blades; push the lever to the right of the steering wheel all the way forward.

Where is the PTO on a John Deere tractor?

The PTO is the mechanism that turns on the blades located under the mower deck. The PTO works off of a 12-volt system. The electric clutch is operated by a switch located on the dashboard of the lawn mower.

How does the PTO work on a John Deere?

Driven by electricity provided by the mower’s 12-volt battery, the PTO clutch engages when its solenoid receives an electric spark. The PTO pulley is attached to the clutch and guides the belt that connects to the engine crankshaft pulley and rotates the blades of the mower that are located under the mower’s deck.

Why wont my blades engage on my John Deere riding mower?

It could be your bearings and your spindle pockets, or spindles, have seized up,” says Oshel. If the blades are stuck, pump some grease into the fitting and carefully work the blades back and forth by hand until they move freely.

Why does the PTO not engage?

If the PTO clutch is not getting power, if the clutch solenoid is defective, or if the clutch is worn out, the lawn mower blades will not engage. The PTO clutch is not repairable—if the clutch is defective, you must replace it. The PTO switch provides power to the PTO clutch. … If the PTO switch is defective, replace it.

Why wont my blades won't engage?

Belt-the number one cause for your blades not to engage is that your belt is either stretched or loose causing it to slip or fall off completely. Belt could have snapped also. When you are trying to process too much grass/leaves they could pack up under your deck and push off your belt.

What is a PTO switch on a riding mower?

The PTO is a switch or lever found on tractors and mowers and stands for Power Take Off. This can be an electric switch or mechanical engagement that takes engine power to operate the mower deck or an implement. The PTO can run mowers by either a belt or a shaft.

How do you engage the blades on a riding lawn mower?

Find the plunger at the top of the attachment lift lever. Press the plunger inward with your thumb, and move the attachment lift lever back, or toward you, to lower the cutting blade. Release the plunger and attachment lift lever. Pull the attachment clutch switch outward to “Engage” to make the cutting blade rotate.

Why is my lawnmower blade not turning?

If your mower blades will not turn after the blade controls have been engaged, your deck belt may be broken. The deck is located directly under the operators seat. This belt spins the mowers blades and runs through a pulley system of idlers. … If the belt has snapped, it will need to be replaced.

Article first time published on

How do I know if my PTO clutch is bad?

Activate the PTO engagement lever, then disengage it. Turn it on and off several times. If you do not hear a disengagement noise or see the power takeoff pulley stopping or slowing down at any time, it indicates the clutch and plates have galled together from excessive heat, or the slip ring has jammed.

Why won't my riding lawn mower move forward or reverse?

A blocked fuel filter can keep gasoline from flowing to your mower’s engine in adequate supply, resulting in a lawn mower that isn’t drivable. Damaged or clogged air filters also can prevent your lawn mower from going forward or in reverse simply because the engine will overheat quickly.

Which way does a tractor PTO turn?

“From the tractor seat?” “From the front of the tractor.” “It has to turn clockwise when you are facing it from the operator’s seat. Your pto actually turns counterclockwise.”

Why does my PTO keep turning off?

@mattk ,Matt, Something as simple as a low battery/bad connection or not charging could cause this. Possibly bad seat/reversing safety switch, faulty/loose wire/plug to clutch/PTO/switch, clutch faulty. Trouble shooting/parts/manual links below may help.

How does PTO switch work?

When the operator pulls the lever and engages the clutch, the pulley wheel springs outward and tightens the blade against the drive shaft pulley. The belt causes friction and grips the pulley. Because the drive shaft pulley is turning, it spins the PTO pulley and the lawnmower blade.

How much does a PTO clutch cost?

This item Lawn Mower Electric PTO Clutch Replaces AYP/ROPER/SEARS 106316X8TEN Gen 3 Electric PTO Clutch for Craftsman Exmark Ferris Warner 5215-14 D18000 106316X 109550X 1-541353Price$12999$154.83$154.83Sold ByThe ROP ShopCOMFY STRAP

How do you adjust the clutch on a John Deere riding lawn mower?

Push the mower lift lever on the right side of the fender deck all the way forward and set the mower deck in its lowest position. Slide the belt off from the bottom of the PTO clutch located under the engine. Locate the three adjustment nuts around the clutch, above the brake plates.

What happens when a PTO clutch goes bad?

“Normally” when a clutch is going bad it will start to show when you engage the PTO. A common symptom would be for the clutch to be slow to engage if it’s been running for a while and is hot. Once engaged they usually stay engaged until you shut them off.
