To enter privileged EXEC mode, enter the enable command. Privileged EXEC From user EXEC mode, enter the enable command. disable command. To enter global configuration mode, enter the configure command.

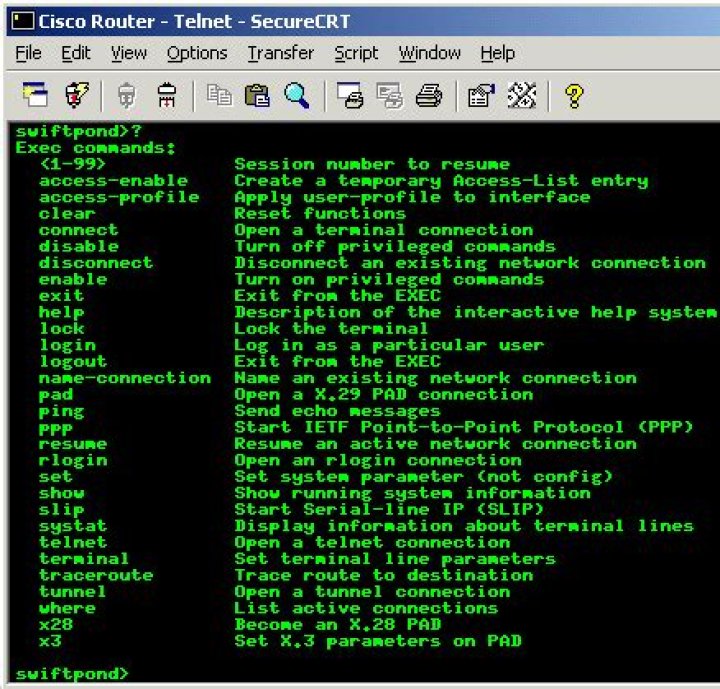

What is EXEC mode in Cisco?

User EXEC level allows you to access only basic monitoring commands; privileged EXEC level allows you to access all router commands. … There are five command modes: global configuration mode, interface configuration mode, subinterface configuration mode, router configuration mode, and line configuration mode.

What is the command we need to enter in CLI to execute privileged EXEC mode?

Privileged mode (Privileged EXEC Mode) Privileged mode can be identified by the # prompt following the router name. From the user mode, a user can change to Privileged mode, by running the “enable” command. Also we can keep a enable password or enable secret to restrict access to Privileged mode.

What is the router prompt for user EXEC mode?

Introduction. To get into Privileged Mode we enter the “Enable” command from User Exec Mode. If set, the router will prompt you for a password. Once in Privileged Mode, you will notice the prompt changes from “>” to a “#” to indicate that we are now in Privileged Mode.

How do I access Cisco command line?

1. Under Category, choose Session.
2. Under Connection type, choose Serial.
3. In the Serial line, enter the COM port on your laptop that is connected to the console port on your router, using the console cable.
4. Click Open.

How do I find my config register?

To view the current setting of the configuration register, establish a console or Telnet session with the router. Issue the show version command, and input the contents into the Output Interpreter.

Which EXEC mode allows the execution of configuration and management commands?

The execution of configuration and management commands requires that the network administrator use the privileged EXEC mode or a more specific mode in the hierarchy. This means that a user must enter user EXEC mode first, and from there, access privileged EXEC mode.

What happens when the exit command is entered in privileged EXEC mode?

If you press exit in privileged EXEC mode what happens? The session ends. How do you move from any of the sub modes of the global config to the mode one step above it? To move from any submode of the global configuration mode to the mode one step above it in the hierarchy of modes, enter the exit command.

How do I get back to privileged EXEC mode?

To return to privileged EXEC mode, enter the end command, or press Ctrl-Z.

Why do you think the commands available in user EXEC mode are limited?

For security purposes, only a limited subset of EXEC commands are available in user EXEC mode. This level of access is reserved for tasks which do not change the configuration of the router, like checking the router status. … Global configuration mode is also used to enter specific configuration modes.

Article first time published on

Which command defines the password that you had to enter to access privileged mode?

Which command defines the password that you had to enter to access privileged mode? B (enable secret) . If both commands are configured, IOS accepts only the password as configured in the enable secret command.

What is user mode and privileged mode?

User mode is used to just view the configurations of the router and Privileged mode is used to view all configurations on the router and also allow to change some less important configuration.

Which of the following commands sets the privileged mode password to Cisco and encrypts the password?

The _enable secret [password] command enables an encrypted password and overrides the enable password if it is set. The _enable password [password] command adds a plain text password to the privileged mode.

How do I access the command-line interface?

1. Go to the Start menu or screen, and enter “Command Prompt” in the search field.
2. Go to Start menu → Windows System → Command Prompt.
3. Go to Start menu → All Programs → Accessories → Command Prompt.

How do you go into or get out of the different modes in a switch?

Switch(config-line)# ? To exit line configuration mode and to return to global configuration mode, use the exit command. To exit line configuration mode and to return to privileged EXEC mode, enter the end command, or press Ctrl–Z.

How do I log into a Cisco switch?

Enter the IP address of the switch that you are configuring in the address bar on the browser, and then press Enter. For example, When the login page appears, choose the language that you prefer to use in the web-based interface and enter the username and password.

How do I enter Juniper configuration mode?

1. When you log in to the device and type the cli command and press Enter, you are automatically in operational mode: …
2. To enter configuration mode, type the configure command or the edit command in CLI operational mode.

What are some properties of privileged EXEC mode?

privileged EXEC mode is the system administrator mode. In this mode configuration files can be read, the router can be rebooted, and operating parameters can be changed. global configuration mode is used to modify system-wide configuration parameters, such as routing tables and routing algorithms.

What are the 4 types of mode in a router?

• Router (A) — main mode;
• Adapter (B) — connect Ethernet devices to a Wi-Fi network;
• Repeater/Extender (C) — Wi-Fi extension;
• Access point/Extender (D) — expansion of the Wi-Fi area with Ethernet connection.

What is Cisco config-register?

Configuration Register is a special 16 bits value that can be configured in Cisco routers. It is mainly used in three cases; To determine how the router boots. To determine boot options. To set console speed.

How do I change the configuration register on a Cisco router?

1. Connect a terminal or PC to the router console port. …
2. Configure your terminal or terminal emulation software for 9600 baud (default), 8 data bits, no parity, and 2 stop bits.
3. Power on the router.

Would you like to enter the initial configuration dialog Yes No Cisco?

Would you like to enter the initial configuration dialog? [yes/no]: The setup command facility prompts you for basic information about your router and network, and it creates an initial configuration file. … Press Ctrl-C, and enter the setup command at the privileged EXEC mode prompt (Router#).

What is the Cisco IOS version that the switch is running?

Here is a brief description of the most important information: Version 15.0(2)SE4 – the IOS version that the device is running. Switch uptime is 39 minutes – the uptime of the device.

When the router boots up which mode will display?

The configuration file has an enable secret password but no console password. When the router boots up, which mode will display? Explanation:If a Cisco IOS device has a valid IOS and a valid configuration file, it will boot into user EXEC mode. A password will be required to enter privileged EXEC mode.

Does service password encryption encrypt future passwords?

A proprietary Cisco algorithm based on a Vigenere cipher (indicated by the number 7 when viewing the configuration) allows the service password-encryption command to encrypt all passwords (except the previously encrypted enable secret password) in the router configuration file.

What key is used to return to the exec prompt at the more prompt?

KeysFunctionCtrl-WDeletes the word to the left of the cursor.Ctrl-YRecalls the most recent entry in the delete buffer. The delete buffer contains the last ten items you have deleted or cut. Ctrl-Y can be used in conjunction with Esc Y.Ctrl-ZEnds configuration mode and returns you to the EXEC prompt.

What does Ctrl-Z do in Cisco?

Ctrl-Z: When in a config mode, ends the config mode and returns you to privileged EXEC mode. When in user or privileged EXEC mode, logs you out of the router. Ctrl-Shift-6: All-purpose break sequence.

What shortcut command can be used to enter the global configuration mode?

use the exit command to enter into global configuration mode or use the end command to enter into privilege mode. press ctrl+break key while boot process or use reload command in privilege mode.

How do I enter global configuration mode?

To enter global configuration mode, enter the configure command. Global configuration From privileged EXEC mode, enter the configure command. To exit to privileged EXEC mode, enter the exit or end command, or press Ctrl-Z. To enter interface configuration mode, enter the interface configuration command.

What are the four types of passwords in Cisco IOS?

Service password encryption is applied to all passwords, including username passwords, authentication key passwords, the privileged command password, console and virtual terminal line access passwords.

What would happen if you were to type TE tab at the prompt?

What would happen if you were to type te<Tab> at the prompt? ‘te’ does not provide enough characters to make the command unique so the characters will continue to display prompting the user for additional characters to make the command unique. … Enter the enable command and press ENTER.
