The FDD connector contains 34-pins, and uses a FDD ribbon cable to connect to a 3 ½” floppy disk drive. Identify this cable by the twist between the first and second set of connectors, which allocates the drive at the end of the cable as FDD A, and the drive in the middle as FDD B.

What is a FDD cable?

A floppy cable is a ribbon cable found in PC’s that allow one or more floppy disk drives to connect to a computer. … The floppy channel, FDD header, or floppy connection is where the floppy drive connects to the computer motherboard.

What is 4 pin FDD connector?

the four-pin polarized Berg connectors used to connect 3½-inch floppy disk drive units to the power supply unit, usually referred to as simply a “floppy power connector”, but often also referred to as LP4. This connector has a 2.50 mm (0.098 in) pitch (not 2.54 mm).

How will you differentiate an IDE cable to a FDD cable?

Floppy drive cables look a lot like IDE cables except that they are a little narrower, have only 34 conductors, and have a twist at the end of the cable that attaches to the drives.

What is FDD on PSU?

Of those only the FDD (floppy disk drive) power will work for that adapter.

Do floppy drives use IDE?

Floppy drives don’t use a normal IDE (PATA) connection; they use a special 34-pin connector. If your motherboard does not have this connector then you’ll need to get a USB floppy drive instead.

Are all Molex connectors the same?

There are three typical pin sizes: 1.57 mm (0.062 in), 2.13 mm (0.084 in), and 2.36 mm (0.093 in). The 1.57 mm pin can carry 5 A of current, while the 2.36 mm can carry 8.5 A. Because the pins have a large contact surface area and fit tightly, these connectors are typically used for power.

What does an IDE connector look like?

IDE consists of a 40-pin connector attached to a ribbon cable. 80-pin connectors were also introduced later. The connectors are black in a 40-pin connector while in an 80-pin connector, they come in 3 colors: blue – controller, gray – slave drive, and black – master drive.

What does an IDE cable look like?

An IDE cable has a red stripe along one edge, like you see below. It’s that side of the cable that usually refers to the first pin. If you’re having trouble comparing an IDE cable to a SATA cable, refer to the image below to see just how large IDE cables are.

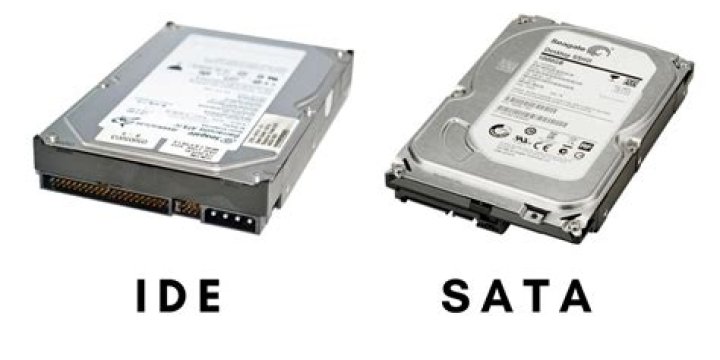

Do I have SATA or IDE?

Look for the “Interface” option in the specifications. SATA drives generally will be referred to as “SATA,” “S-ATA” or “Serial ATA,” while PATA drives may be referred to as “PATA,” Parallel ATA,” “ATA” or, on older drives, simply as “IDE” or “EIDE.”

Article first time published on

Where do I connect FDD?

Adding A Floppy Disk Drive First, connect the data cable that runs between the drive and the FDD connector on the motherboard, and then plug in a free power connector from the power supply into the drive. You then need to go into the computer’s BIOS settings and enable the drive.

What is 4-pin Molex connector?

The Molex 4-pin power supply connector is one of the standard peripheral power connectors in computers today. … This power connector is the standard connector for all PATA based hard drives, many high-end video cards, and some older optical drives and other internal devices.

What is the function of 4-pin Molex connector?

The Molex connector is used for power connections for a disk drive in a computer as well as for other computer components such as CD-ROM’s, graphic cards etc. The Molex connectors bring DC power to the drives inside a PC case.

What are the 3 main form factors for power supplies?

Today’s power supply form factors are ATX, ATX12V v1. x, ATX12V v2. x, and micro-ATX.

What are PCIE 6 2 pin connectors for?

6+2 connectors are considered 8 pin. They manufacture it as 6+2 so that you have the ability to accomodate a GPU that requires either a 6 or 8 pin, or multiple connections.

Which wire of SMPS is optional?

Wire colourDC VoltagePurple+5V StandByOrange+3.3VBrown/Orange+3.3V SenseWhite-5V (optional)

How do I identify a Molex connector?

The Molex connector is one where the male/female terminology is a bit odd. The female connector is usually found on the end of a cable, and it slips inside of a plastic shell which surrounds the male pins on the male connector.

Do I need a Molex cable?

Molex connectors are necessary when you don’t have any 3 pin headers left on your board to connect fans. Then you use molex connectors to connect the fans to your power supply rather than the motherboard.

How do I connect my laptop to a floppy drive?

You can connect it to a generic floppy-to-USB adapter. You can rig an external power supply for the floppy drive with the proper adapter. Another option is to mount the drive and adapter internally in a computer case, and then use a SATA power adapter there.

What is a SATA cable?

SATA Cables Explained. … SATA (also referred to as Serial ATA) stands for Serial Advanced Technology Attachment, an industry-standard bus interface for connecting a computer’s host bus adapter to storage devices such as hard disk drives (HDD), optical drives and solid-state drives (SSD).

What cable is used to connect a monitor to a computer?

Most computers have the VGA, DVI and HDMI connection ports with some laptops coming with thunderbolt, USB ports and an HDMI adapter only. So, for example, if your monitor has a VGA connection, and so does your computer, then use a VGA cable to connect the two.

How do I connect my IDE device?

In single drive configurations, connect the primary drive to the end connector on the 40-pin 80-conductor cable. IDE devices use a ribbon cable to connect to each other. Ribbon cables have all of the wires laid flat next to each other instead of bunched or wrapped together in a bundle.

How many wires does an IDE cable have?

IDE ribbon cables have either 40 or 80 wires. There is a connector at each end of the cable and another one about two-thirds of the distance from the motherboard connector.

Are IDE cables still used?

No one manufactures them anymore. Seagate stops shipping them: When the cable DVR manufacturers switched from IDE to SATA, it was (finally) the last nail in the coffin for IDE.

When did IDE become obsolete?

IDEs are known for their high level of compatibility. You can use an IDE with nearly any type of system. But because of the technology’s age, IDE has limitations in modern computing and has become obsolete. Western Digital and Seagate stopped manufacturing IDEs in 2013.

How do I know if my windows is IDE or SATA?

1. Press the Windows logo and “R” keys simultaneously to display the “Run” dialog box. …
2. Double-click the “Disk Drives” category to expand it. …
3. Record the model number displayed for the hard drive, e.g. “Hitachi HTS721010G9SA00.”

How do I know SATA 2 or 3?

On the left in the device selection panel go to the Motherboard section. The right side of the window will show which SATA ports are available. If 6 Gb / s is written near the port, it means that it is SATA 3 standard. If 3 Gb /s is written near the port, it means that it is SATA 2 standard.

How do I know if I have SATA or PATA?

Method 1: Simply open your cabinet’s side panel. If you see a bulky and very wide cable attaching your hard disk to Motherboard, it is PATA. If you see a compact and lightweight cable connecting your disk, it is SATA hdd. This is a PATA cable.

How can I read a floppy disk without formatting it?

1. Insert your floppy disk to the floppy drive on your computer.
2. Double click “This PC” to open the disk and view the floppy drive data.
3. Copy and paste the files and folders to another computer drive.
4. Insert a blank CD to the CD-Rewriteable drive and transfer the pasted files from a floppy disk.

Can you convert floppy disk to CD?

To copy a floppy disk to a CD, you need a floppy disk drive and a CD Rewriteable drive. Both of these drives can be externally connected drives, if necessary.

What are Molex cables for PC?

Molex is the name of the company who develops computer and other related connectors and products. Also known as a Molex power connector (pictured), it connects your computer power supply to drives and devices inside the computer.
