When you are fixing the newel posts, using timber locks or ledger locks would be a better option than using screws and bolts. This is because they are stronger and they make the newel posts sturdier.

Are newel posts structural?

As you say the newel posts usually do form a structural part of the staircase. It is usually possible to replace the bottom post but it is tricky. The other posts are a definite no go on the removal front.

How do you reinforce a banister?

1. Start by stabilizing the newel posts. …
2. Remove any molding around the bottom of the post. …
3. Replace the molding and patch any nail holes with caulk or wood filler. …
4. Add L brackets to at least two sides, between the post and the stair tread, to secure severely loose newel posts.

How do you fix a wobbly banister?

1. Steps: …
2. Remove all loose spindles and the banister. …
3. Drill new holes for draw bolts on the bottom side of the banister using the template provided by the manufacturer. …
4. Tighten banister pieces together with draw bolts. …
5. Tap spindles for one step into place, and then secure with polyurethane glue and brads.

What is Newal?

1 : an upright post about which the steps of a circular staircase wind. 2 : a post at the foot of a straight stairway or one at a landing.

How many Newels do I need?

Therefore, if you have a sixteen-foot balcony, you will need three newel posts, one at the beginning, one in the middle, and one at the end. But if the balcony is eighteen feet, then it would require four newel posts as the distance between each post would be greater than eight feet if only three newel posts were used.

Are newel posts hollow?

Newel posts are the large supporting posts that occur intermittently or at corners or ends of a balustrade to which the handrail is attached. They provide the greatest structural support of the balustrade. … There is one feature of most box newels that is almost always unappreciated, the hollow void within the post.

What are Newels and balusters?

Newels and balusters are the centerpiece for your new set of stairs. … Newels have added weight and are seen as the support system for your staircase. The thicker posts support the handrail, while the balusters fill out the rest. Balusters are used in succession to create a balustrade, or a line of balusters.

How much does it cost to replace newel post?

Cost to Install Newel Post The average price to install a newel post is $365, including labor costs and mid-range materials. Single posts cost $35 to $550. The price depends on the dimensions and type of material. One post is used at each end of the rail.

What is a half newel post?

A half newel post cap is exactly that—a newel cap that’s been cut in half so it can fit on top of a half newel post. As with regular newel caps, half-size newel caps come in a range of designs so you can match the newel caps on your full-size newel posts.

Article first time published on

How do you tighten a round newel post?

Using a hammer, tap your screw until there is roughly 30mm of it left stuck proud of the newel base. Then use a screwdriver to tighten the screw down into the newel base. Don’t be afraid of taking the screw out and trying again a few times to insert a new plug and get the screw to hold tight—these don’t always bite!

How much does it cost to get a new banister?

Average Cost$900High Cost$10,000+Low Cost$700

How do you reinforce spindles?

1. Dry-fit a wooden shim to ensure it fits snugly into the gap between the top of your loose spindle and the handrail.
2. Spread wood glue lightly over the shim.
3. Insert the shim into the gap at the top of your loose spindle and gently tap it with a hammer to set it firmly into place.

How do you reinforce handrails?

To tighten up handrails with spindles, apply a metal corner bracket to reinforce the structure from below. For even more stability, apply wood glue to the handrail’s end edge (flush with the wall of the house) before you install the bracket.

How do you fix a gap between riser and tread?

1. Place the cove molding face up across two sawhorses. …
2. Measure the width of the stair tread where it meets the riser. …
3. Apply a bead of construction sealant to the back of the molding. …
4. Apply colored silicone caulking to stringer gaps. …
5. Cut the tip off of a tube of colored silicone with a utility knife.

What goes on top of a newel post?

Cap—the cap that sits on top of a newel post.

What height should a newel post be?

The handrail should set 900mm above the pitch line where the post meets the string. The top of the post should be 50mm above this.

What is the newel at the bottom of the stairs called?

The post (also called a newel) is the vertical structure that connects the stair or floor to the railing system. Spindles, which are vertical wood or metal structures, are interspersed between posts to provide a safety barrier along the stair system. Shoe is the bottom plate that spindles (or glass) are set into. 3.

How do you tighten a wooden banister?

1. Secure the newel posts — the upright posts located at either end of the banister and on landings. …
2. Replace joinery on the rail. …
3. Reattach wall brackets, if present; add them to help steady rails. …
4. Tighten rail bolts that attach the rails to the newel posts. …
5. Glue or replace balusters.

How do you fix loose iron balusters?

You just need a small wedge to hold the baluster securely, so it can’t move and rattle as you walk by. Although any toothpick will do, the best type is the flat version. Simply add a little wood glue to the toothpick (on the side facing the wood rail if you have iron balusters) and then push it into place.

Are newel posts solid wood?

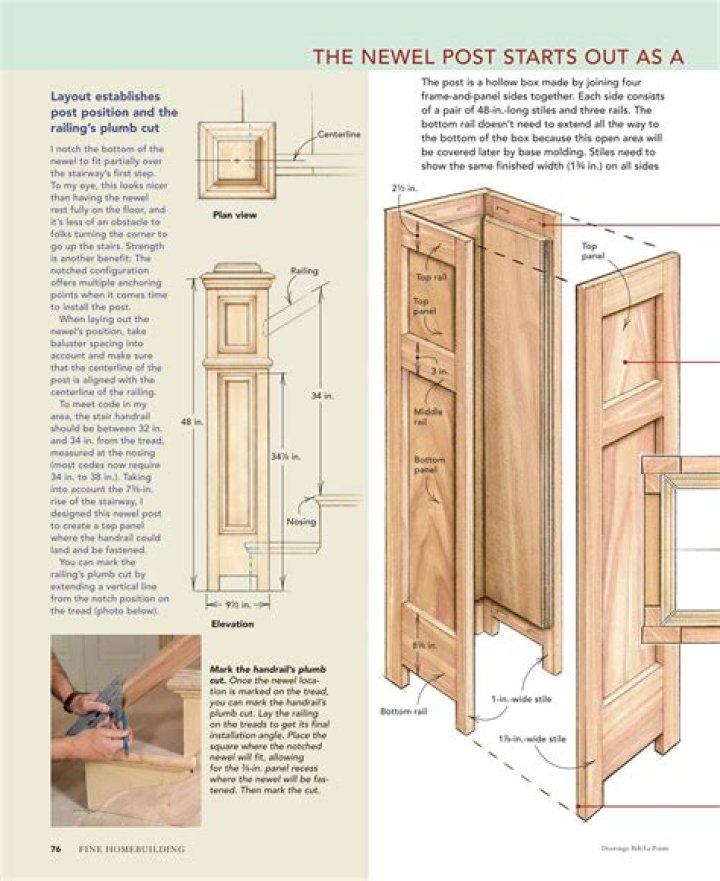

Box newel posts are manufactured using 3/4″ thick solid hardwood for all four sides. These posts are constructed with lock miter joints at the corners. The flat panel and raised panel versions are made using true stile & rail construction, not just a routed out pocket.

Are Box Newels hollow?

Box newels are usually constructed like a box, often having a hollow center and are usually square rather than turned on a Lathe.

What is the difference between newel and baluster?

is that baluster is (architecture) a short column used in a group to support a rail, as commonly found on the side of a stairway; a banister while newel is (architecture) a sturdy pillar at the top or bottom of a flight of stairs, supporting the handrail.

How wide should a newel post be?

WIDTH: The size of a standard newel (that used for interior railings) is typically between 2 3/4″ and 3 1/2″ square. Box Newels (as shown in the picture to the left) can be significantly larger as a function of your interior decorating preferences..

How far apart should balusters be?

Balusters are the vertical guards that support the handrail. They must be installed close enough that the space between them is less than 4 inches. Most city inspectors carry a 4-inch ball with them to test the spacing. Installed balusters should withstand 50 pounds of pressure exerted over a 1-sq.
