Be careful not to overtighten the packing nut; it should be just tight enough to stop leaking around the stem. If too tight, the handle will be hard to turn; if too loose, it will allow water to leak out around the stem.

Can you overtighten a packing nut?

Be careful not to overtighten the packing nut; it should be just tight enough to stop leaking around the stem. If too tight, the handle will be hard to turn; if too loose, it will allow water to leak out around the stem.

How do you remove a stuck packing nut?

1. Tighten the nut. Moving the nut in any direction is progress. …
2. Tap with a hammer. Jarring the nut can break its bond to the bolt. …
3. Apply heat. Metal expands slightly when hot, which may be enough to crack the nut free. …
4. Soak the nut.

What is packing washer?

Outdoor and utility faucets, as well as bath or kitchen ones with two handles, have compression valves. … A seat washer on the end of the valve makes the seal, and on some models, a packing washer just under the packing nut stops water from spraying from the handle when the faucet is open.

What is the cap on top of an outdoor faucet?

The vacuum cap is circular and about an inch in diameter, and it either slips or screws onto the top of the faucet. The device underneath it is known as a vacuum breaker or an anti-siphon valve.

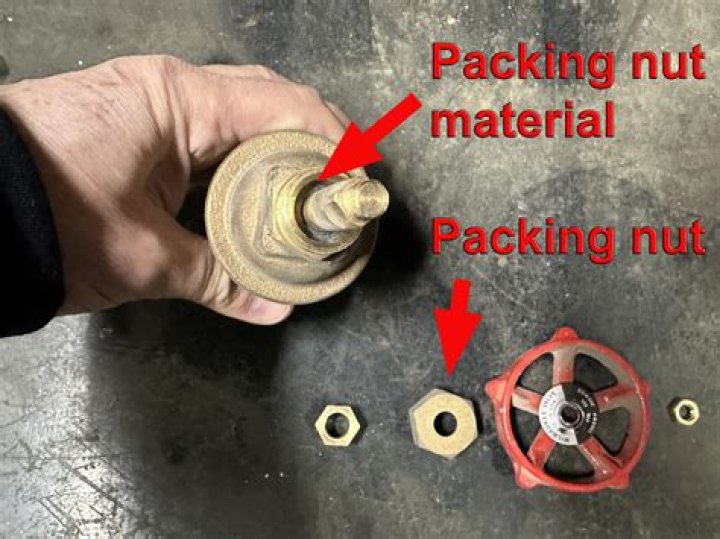

What does a packing nut do?

A packing nut is a nut that is threaded onto a plumbing shaft. The purpose of the packing nu is to hold packing in place, thereby creating a tight seal in the plumbing. Faucet leaks are often caused by loose packing nuts.

How do you replace an outdoor faucet handle?

1. Turn off the water supply at the shutoff valve. …
2. Remove the faucet handle. …
3. Wiggle the handle while pulling straight up to remove the old faucet handle from the stem, according to the Bob Vila website.
4. Set the new handle in place and replace the fastener.

Why is shut off valve leaking?

Since cut-off (shut-off) valves are rarely used, the washer inside the valve can become hard or covered with mineral deposits over time. When you close the valve then open it again, the washer on the valve stem may not seat properly, causing it to leak around the valve stem nut.

How much does it cost to tighten a packing nut?

Tighten the packing nut First try tightening the packing nut one-eighth to one-quarter turn with a wrench. On a new water valve, this almost always stops the leak. If it doesn’t, the packing washer is probably damaged and will need replacement. Here’s how.

Which is better graphite or Teflon packing?

Graphite packings can be treated with PTFE to get better benefits such as preventing colour contamination, gaining better stability etc. Both graphite, as well as PTFE packings, are cost-effective as they bothare durable and require low maintenance.

Article first time published on

What is a plumbing packing nut?

What is a Packing Nut? … The packing nut is the part of the valve that provides a watertight seal around the valve stem, and usually, a leaking shut-off valve is the fault of a problem with the packing nut.

How do you loosen tight plumbing nuts?

Apply a penetrating lubricant such as Liquid Wrench or WD-40 to the fixture or nut and allow it to soak in for at least two hours. Apply more penetrating lubricant and allow it to soak in for another two hours. Turn the fixture or nut to loosen it.

Why is my outdoor spigot leaking?

Outdoor spigot leaks are often due to worn-out washers. Besides wear and tear of the washers and packing around the handle, other causes of outdoor faucet leaks can include damaged, frozen or clogged pipes. Pipes can become clogged over time due to mineral deposits and other buildup.

Why is water coming out of my anti-siphon valve?

When an anti-siphon valve leaks, it could be because dirt has gotten into the valve and is preventing the poppet from seating completely when the water is turned on. … Either condition allows pressurized water to spray out of the valve when the faucet or sprinkler is on.

Will outside faucets freeze?

What happens if outside faucets freeze? When temperatures dip to 28 degrees or below, and the outside faucets freeze, ice can form in the water supply pipes that lead to those exposed outdoor faucets. If your outdoor faucets aren’t properly prepared for winter, water damage from frozen pipes may occur.

How do you fix a stripped faucet handle?

1. Turn off the water (and cover the drain!) …
2. Turn off the water (and cover the drain!) …
3. Remove faucet handles or cover plates. …
4. Remove locking nut. …
5. Remove faucet cartridge. …
6. Replace and retrace.

How much does it cost to replace outdoor spigot?

Outdoor Spigot Installation PricesAverage range$200 – $600Low-end$100High-end$1,000

How do you tighten a spigot packing nut?

Tighten the packing nut on the spigot with an adjustable wrench until snug. Turn the faucet handle clockwise to close it off. Use the cut-off key to turn the water back on at the meter. Turn it slowly about 180 degrees anti-clockwise to turn the water supply back on.

What is a globe valve?

A globe valve regulates flow in a pipeline. It is used to control or stop the flow of liquid or gas through a pipe. Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. … Globe valves are also known as throttle valves.

What is a valve packing?

Valve packing is a component in a valve that forms pressure seal between the inside of the valve and the outside of the valve, keeping the process fluid from leaking out. Over time, the packing will wear in, relax, or loosen up with process temperature, or even seasonal ambient temperatures, and begin to leak.

Can a water shut off valve go bad?

You can spend time rebuilding the old valve, but the problems will just reappear years from now. The best way to deal with bad valves is to replace them with modern quarter-turn ball valves. They rarely lock up, leak or wear out and best of all, they’ll take just an hour or so to install.

Where do you find graphite?

Graphite is most often found as flakes or crystalline layers in metamorphic rocks such as marble, schist’s and gneisses. Graphite may also be found in organic-rich shale’s and coal beds.

What is the difference between Teflon and PTFE?

What’s the Difference Between Teflon™ and PTFE The simple answer is that they are the same thing: Teflon™ is a brand name for PTFE and is a trademark brand name used by the Du Pont company and its subsidiary companies (Kinetic which first registered the trademark & Chemours which currently owns it).

What is graphite packing?

Graphite packing is a highly resistant sealant used in systems with valves, faucets, and stuffing boxes, as well as other machines with watertight mechanical parts. It can be applied either to static valve stems or to moving joints. … Its resilience makes it the perfect sealant for the fuel, chemical, and gas industries.
