An outfeed table that is too low can lead to a different kind of problem — snipe. In this case, the jointer will work just fine through most of the cut.

What happens if the outfeed table of a jointer is too low?

An outfeed table that is too low can lead to a different kind of problem — snipe. In this case, the jointer will work just fine through most of the cut.

Why am I getting snipe on my jointer?

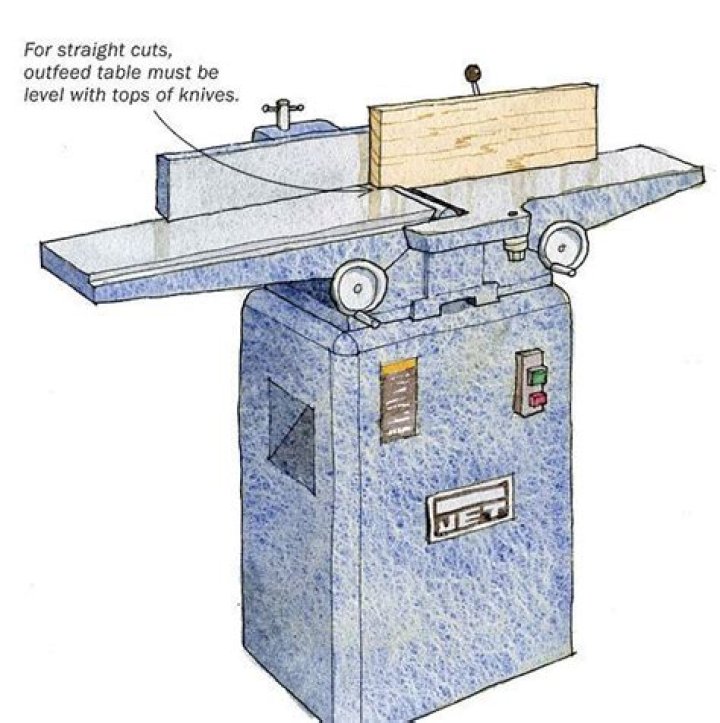

Jointer snipe occurs when the outfeed table is positioned below the jointer knives. In most jointers the height of the outfeed table is adjustable, and that makes the fix to jointer snipe a relatively easy one. Ensure that the knives are set properly.

What should you never adjust on a jointer?

Don’t adjust out-feed table. Don’t try to remove more than 1/16” at a time. Don’t joint stock less than 1/4” thick. Don’t joint material shorter than 10”.

Where should your eyes be when using the jointer?

For stability when feeding, place the concave face or edge against the jointer tables. When face-jointing, this means you should orient the cup or bow downward. When edge-jointing, the crook should be at the bottom.

What controls the depth of cut on a jointer?

The jointer has a fence for guiding stock through its blade. … A guard covers the blade to protect the user’s hands, and an adjustable depth gauge sets the depth of the cut. Cuts should be no deeper than 1/8 inch per pass. To use the jointer to smooth edges, feed the wood into the tool with the rough edge facing down.

What type of Guard should be used on a jointer?

Each one of these machines has an ideal guard match. For example, jointers should be fitted with self-adjusting guards.

What angle are jointer blades sharpened at?

If I remember correctly the angles for the planners and jointers are usually between 40 and 50 degrees, but Jeff was right different manufactures may choose different angles based on the machine characteristics and blade thickness and width so it would be safer.

What is jointer planer snipe?

Snipe on a jointer is caused by the outfeed table being set too low or too high relative to the cutter head. … Snipe on a planer is caused by a multitude of scenarios dictated by which machine you have. It can be the bed rollers are set too high, chip breakers or pressure bar not set properly, etc.

Is my table saw blade dull?

How Do I Know When a Circular Saw Blade is Dull? … The blade will cut slower than usual or may completely bind mid-cut; The blade will create more tears or chipping than usual; The blade will produce burn marks on the wood and may start smoking.

Article first time published on

How sharp should planer blades be?

We recommend sharpening to roughly 600 grit. Any finer and the resulting edge gained will only last a short time.

When cutting short pieces of wood they should be held?

Small pieces should be held in a clamp or jig. 3.

What is the margin of safety for a jointer?

Maintain at least a 6” margin of Safety!!! 9. Use a push stick or push block when planning a flat surface (face).

What should you do before using a jointer?

Remove all wrenches and tools used in the set up from the table. Provide a minimum clearance of at least 1 m (3 ft) greater than the length of the longest stock being worked. Construct hold-down push blocks to do bevelling and surface operations. See Woodworking Machines – Push Sticks for more information.
