Mount the doors by clipping the hinge arms onto the mounting plates. All measurements are in millimeters. Turning this screw clockwise adjusts the door down; counterclockwise, up. Turning this screw clockwise adjusts the door inward; counterclockwise, outward.

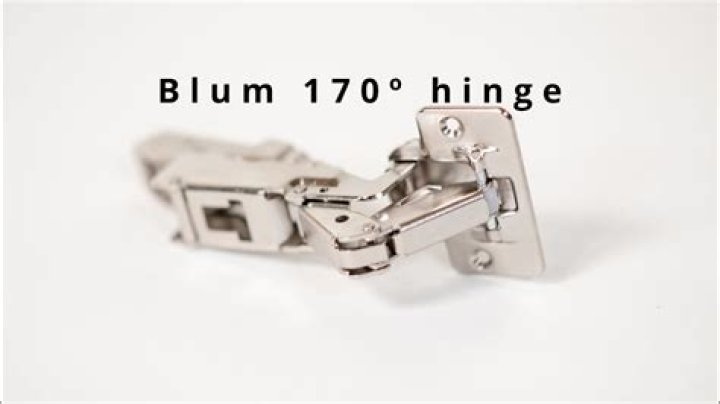

What is a 170 degree hinge used for?

The unique design allows the hinge to open at a 170° angle. Designed to be used in applications where the door sits in front of the carcass of the cabinet. The larger opening angle of this hinge means the door can fold almost flat against the adjacent door allowing much wider access into the cabinet.

How do you adjust a 170 degree cabinet hinge?

Mount the doors by clipping the hinge arms onto the mounting plates. All measurements are in millimeters. Turning this screw clockwise adjusts the door down; counterclockwise, up. Turning this screw clockwise adjusts the door inward; counterclockwise, outward.

How do you adjust non adjustable cabinet hinges?

Cabinet Doors Rubbing Against Each Other You can correct the problem by adjusting the hinges on each of the doors. Look for two screws on the hinge. Loosen the screw nearest to the cabinet door a bit — enough to allow you to adjust the hinge to the left or to the right. You’ll have to try one direction per time.

What does degree mean in cabinet hinges?

One element of these hinges that’s always specified but rarely explained is degree of opening. Think of the degree of opening as the cabinet door’s range of travel from a closed position (0°) to a fully open position (anywhere from 90° to 170°), and then choose based on the application.

How do you identify Blum hinges?

Distinguishing feature of BLUMOTION for doors You will find the Blum logo embossed on the housing of clip-on BLUMOTION.

How do you adjust external cabinet hinges?

Open the door and hold it open with one hand. When the door is in the open position it will expose two screws on each hinge. These are slightly recessed into the body of the hinge. Use a screwdriver to turn them both clockwise one-quarter turn at a time to add tension to the internal spring.

What is Blum mounting plate spacing?

Blum CLIP Cruciform Cabinet Mounting Plate – Screw On – 3mm Spacing – Pressed Steel – Pair.

How do you adjust a 165 degree hinge?

1. To adjust door up and down, turn the screw in the centre of the hinge (located on the plate)
2. To adjust door in and out, turn the screw at the rear of the hinge.
3. To adjust the door from side to side, turn the screw to the front of the hinge arm.

What are 165 degree hinges used for?

This Titus clip on, 165 degree hinge is ideal for standard kitchen cabinet doors. For an added bonus these hinges are soft close, so you can say goodbye to slamming kitchen cabinet doors.

Article first time published on

What is Lazy Susan hinge?

This hinge is used to attach two Lazy Susan doors together in the middle to swing out. When using this hinge, one long side of each door should have a square 115 edge profile where this Lazy Susan hinge mounts. … One side of the door should be bored for our 170 degree hinge* to mount the doors to the cabinet.

How does a 270 degree hinge work?

This entertainment center hinge allows doors to open 270 degrees. The holes on the door side of the hinge and holes on the frame side of the hinge are elongated for adjustment. … The wrap around the back of the door is 1-3/8″.

How do you measure for cabinet hinges?

1. With the door closed, part of the thickness of the door fits inside the opening of the cabinet and is called the inset.
2. Inset is measured on the edge of the door. Possible inset dimensions include 3/8″, 1/2″, 5/8″ and 3/4″.

Do all hinges need to be soft close?

In general one soft hinge is sufficient on majority of the door and closing habits. … However, if you close the door normally, or even with slightly harder manner than usual, one and two soft hinges would give you identical results.

Does Blum make a 90 degree hinge?

Clip-On Hinges, Pair.

How do you stop a cabinet door at 90 degrees?

Insert one of the wedges, flat-side-down, behind the cabinet door on the hinge side, on the face of the cabinet just below the hinge. Open the door to 90 degrees. If the wedge doesn’t stop the door from opening farther than 90 degrees, choose a thicker wedge.

How do you adjust traditional cabinet door hinges?

1. Open the cabinet door.
2. With a screwdriver, tighten and adjust the screws on the cabinet door hinges.
3. Close the door to check tension and alignment.
4. Continue adjusting screws on the cabinet and then the door until the door is no longer loose and closes appropriately.

How do you fix a misaligned door?

1. Tighten the Hinge Screws. …
2. Replace the Hinge Screws. …
3. Drive a Screw or Two Into the Door Jamb. …
4. Tighten the Strike Plate. …
5. Move the Strike Plate Incrementally. …
6. Move the Strike Plate Farther. …
7. Inset the Strike Plate Deeper Into the Jamb.

What's the difference between sprung and unsprung hinges?

The difference between a sprung multipoint door handle and an unsprung multipoint door handle is that a sprung handle has a spring cassette in the rear of the handle (usually fixed into the backplate) and an unsprung handle does not. The purpose of the spring is to return the handle to it’s original position after use.
