The water temperature from my Moen shower system is not hot enough. To adjust the Temperature Limit Stop,with the handle removed, loosen the adjustment hex screw with a 7/64″ hex wrench and slide the screw to the highest position (See Figure A) on the metal stop tube sleeve. Tighten the hex screw.

How do you adjust anti scalding?

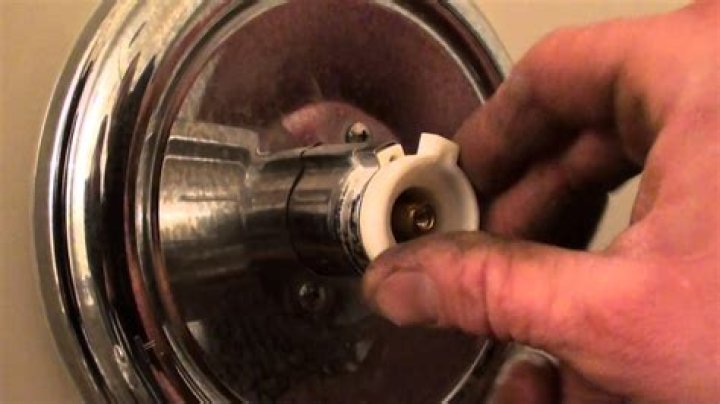

Slide the shower handle off the stem to expose the “Rotational Limit Stop” anti-scald valve. Grab the center of the “Rotational Limit Stop” and pull it toward you. Turn the Delta anti–scald valve to the left to increase the maximum temperature of the water, or turn it to the right to decrease the water temperature.

How do you adjust the temperature on a single handle shower faucet?

Grip the front of the cartridge and pull it out. Rotate it toward the hot side, which is usually counterclockwise, to increase the maximum temperature. Rotate it the other way to decrease the temperature. It should snap into place when you let it go.

How do you adjust the water temperature on a Moen kitchen faucet?

To increase water temperature, either turn the hot water screw counterclockwise or turn the cold water screw clockwise. To decrease water temperature, either turn the hot water screw clockwise or turn the cold water screw counterclockwise.

How do I increase the water flow in my Moen kitchen faucet?

The aerator is a small disc located on the tip of the water faucet that looks like a little screen. Moen instructs consumers to unscrew the aerator by turning it counterclockwise to remove it. Rinse the screen to dislodge any debris that’s trapped in it, which should increase the overall water flow.

How do I adjust my mixing valve wattage?

To adjust the setting of the valve, loosen locking cap screw with hex wrench, see Figure 2. Cap must be lifted 1/4” to adjust temper- ature. To increase the tem- perature, turn counterclockwise. To decrease temperature turn clockwise.

How do you adjust an anti scald valve on a bathtub UK?

To adjust the temperature supply remove the plastic cap on top of the valve and adjust with a close fitting spanner. To increase the temperature turn anti-clockwise To decrease the temperature turn clockwise To set the valve to a maximum recommended mixed water temperature, see table below.

Why does my faucet take so long to heat up?

There are several reasons; the distance from the water heater, the diameter of the piping, and the flow rate of the water. The further the hot water has to flow, the longer it takes to heat up the shower faucet. This is especially true with a larger home.

Why is there a mixing valve under my bathroom sink?

The basic function of a mixing valve is to mix the hot water and the cold water so that it comes out of the faucet at a comfortable and safe temperature. … This setup prevents dangerously hot water from scalding you whenever there is a surge of water in your shower.

How do I adjust the hot water on my shower faucet?

1. Remove the handle. You may need a screwdriver to do this.
2. Take off the metal cover beneath the handle, exposing the valve stem. …
3. Turn the RSL two notches in whichever direction desired, then put the RSL back in place.
4. Replace the faucet handle, then test the mixture of hot and cold water.

Article first time published on

Should faucet handle be on left or right?

Cold water should always be on the right side of the faucet and hot on the left. This is an industry standard throughout North America, and applies to single lever as well as dual faucets. When indoor plumbing was first introduced, there was one option that came out of the hand pump: cold water.

Do kitchen faucets have anti scald?

One-handle hot and cold faucets can also come with something called a scald guard, controlled by an adjustable knob. This prevents water becoming dangerously hot. However, if this scald guard is set too high or is malfunctioning, your one-handle kitchen faucet can end up feeling far too hot.

How do I change the temperature limit on a Moen stop?

Unscrew the screw holding it to the top of the cartridge sleeve and pull the ring out far enough that the teeth of the ring disengage. This temperature limit stop can be adjusted clockwise to increase the temperature or counterclockwise to decrease the temperature.

How do you know if your mix valve is bad?

1. Your water temperature isn’t right. If a TMV valve stops working correctly, then you may notice that your hot water suddenly starts to run hotter than it should. …
2. Your water doesn’t flow normally. …
3. You have leaks or drips.

Do I need a mixing valve on my hot water heater?

Thermostatic mixing valves on your water heater are essential to prevent scalding and control water temperature at the delivery point. It allows you to increase the heater temperature, killing off harmful bacteria.

What temperature should a mixing valve be set at?

These valves should never be set to exceed a maximum temperature of 49C (120F). (Watts recommends the maximum temperature of 43C (110F) for shower and bathing fixtures.)

How do you remove a Moen faucet restrictor?

1. Pull out the spout and clamp the hose to prevent it from retracting.
2. Grip the collar at the end of the hose with pliers and unscrew the spray head.
3. Look for the aerator inside the collar or the spray head. …
4. Work out the aerator gently, using a flat-head screwdriver.

Where are flow restrictors located?

Flow restrictors are usually found in the neck or threaded end of the shower head exposed when the shower head is removed from the shower arm as shown in the image below. They would appear in the opening of the aerator when it is removed from a lavatory or kitchen faucet.

Why is shower water not hot enough?

The reason why you’re not getting enough hot water from your shower could be because the mixing valve isn’t working. The rubber parts found in the mixing valves get worn down over time, and you will need to replace it.

Why is my shower mixer not mixing?

The usual suspects for this problem are a blocked shower head, kinked or damaged shower hose, or blocked inlet filters in the shower itself. It could also be due to faulty non-return valves. Permanently running either hot or cold.

How do anti-scald shower valves work?

These devices have a chamber in which they mix hot and cold water before it flows out through the faucet. A thermostatic element inside the chamber expands and contracts with changes in the water temperature. As the temperature rises, the element expands to limit the hot water entering the mixing chamber.

Are anti scald valves required?

Many reported incidents of serious burns and shocks received while showering have prompted the requirement for anti-scald shower valves, thermostatic mixing or pressure-balancing shower control valves (see Figure 408.3a). Both types of valves regulate the water temperature by tempering hot water with cold water.
