Proper flashing to a house frame.Cut the flashing with tin snips. … Score with a utility knife. … Bend flashing with a block and framing square for a 90 degree bend to fit inside the house corner wall. … Measure carefully to cut around the door. … Cut flashing. … Slip flashing under siding.

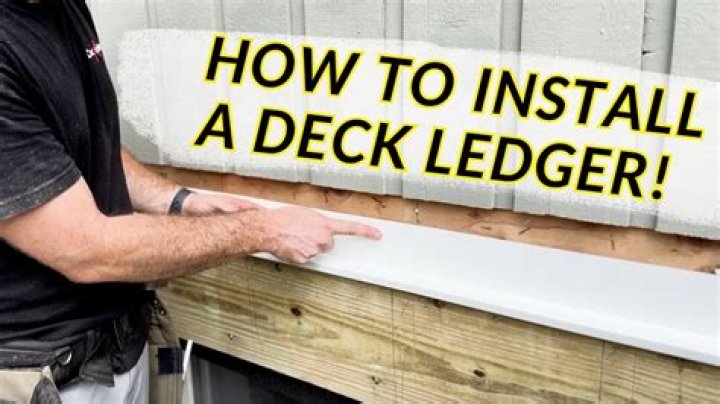

How do I attach flashing to ledger board?

1. Proper flashing to a house frame.
2. Cut the flashing with tin snips. …
3. Score with a utility knife. …
4. Bend flashing with a block and framing square for a 90 degree bend to fit inside the house corner wall. …
5. Measure carefully to cut around the door. …
6. Cut flashing. …
7. Slip flashing under siding.

How do I attach ledger to vinyl siding?

Nail J-channel along both sides of the cutout. Then tack the ledger into place with 16d nails. Next, slide drip flashing behind the vinyl so the lip fits over the top of the ledger as shown at right. Install undersill trim along the edge of the vinyl, over the flashing at the top and bottom.

How do you attach flashing to wood?

Install a tube of construction adhesive in a caulking gun. Apply a generous amount of adhesive along the back of both fins of the flashing. Reposition the flashing at the deck-to-wall intersection and align the cuts at the lower edge with the sides of the corresponding joists. Press the flashing firmly into place.

How do you attach a ledger board to a concrete foundation?

Use a wood bit to drill ½” pilot holes through the ledger board. Next, use a concrete bit to drill into the concrete wall. Install two bolts at the end of each ledger board. Hammer the sleeve anchor through the ledger board into the concrete wall.

What kind of nails do you use for flashing?

Copper Ring Shank Slating & Flashing Nails These solid copper nails are the type recommended for use with many major brands of tile and slate roofing – and are the most compatible nails for use with copper flashing. The full 3/8” head gives good bearing pressure on roofing and flashing material.

How do you attach a roof ledger to a house?

Attach the ledger with 1/2-inch-diameter lag screws or bolts every 16 inches (or as specified by local building codes). Slip stainless-steel washers between the ledger and the siding to allow water to flow behind the ledger. If you can’t get behind the joist to cinch down nuts, use lag screws.

How many lag bolts do you put in a ledger board?

Since 2009, every edition of the IRC (including the anticipated 2021 edition) requires the deck ledger to be connected to the house floor band joist with ½” bolts or lag screws as shown in Table 507.9.

What can I use to secure flashing?

Use roofing cement and two nails to secure it to the roof deck. Place the nails on the base of the step flashing piece, so you’re nailing into the deck. Also place the nails high, so the next course of shingles will cover them.

Can I install a ledger board over siding?

In order to install the ledger board, you usually need to remove the house’s siding. Never install a ledger board over the top of siding no matter what you hear, this can weaken the connection. … Set the blade depth so you won’t cut into the house sheathing below the siding.

Article first time published on

How do you install exterior wall flashing?

Install flashing at bottom of all exterior walls and properly integrate the flashing with other wall water management details to direct water down and out of the wall. Install flashing under the bottom edge of the house wrap or other weather-resistant barrier shingle fashion to direct water out of the wall.

Can you attach a ledger board to studs?

MiTek’s WSWH Washer Head Structural Wood Screw can be used to attach a ledger to studs directly, through 1/2″ APA rated sheathing or through one or two layers of 5/8″ gypsum wallboard (drywall).

How long should ledger screws be?

Your bolts or screws should be long enough to extend at least ½” past the board you are attaching to. They are usually installed in a zig-zag pattern.

How do you seal flashing to shingles?

Seal the seam between the cap and step flashing with urethane roofing cement or silicone caulking compound, as shown at right. If you are working with valley flashing, lift the edges of the surrounding shingles, and spread roofing cement on the flashing about 6 inches in from the edge of the shingles.

How do you attach a hollow block to a ledger board?

When attaching a ledger to hollow masonry block, use adhesive anchors, such as the Epcon A7 from ITW Red Head (800/348-3231, ) or the Hilti HIT HY 20 system (866/445-8827, ).

Can you attach a ledger board to concrete block?

Yes, there are products available for anchoring a ledger board to hollow concrete block foundations (concrete masonry unit, CMU). There are a handful of manufacturers that produce epoxy and other adhesive anchors that are tested for use in hollow CMU.

Can you use Tapcons for ledger board?

It probably did not equate to us getting many new products but there was a lot of good information regarding fasteners and joist hangers. Titen HD anchors (Tapcons on steroids as some call them) even in galvanized finish are not to be used in exterior application. Never to be used to attach Ledger Boards.

How do you attach a ledger board to a two story house?

If you own a two-story home, you can tie the ledger into a band joist. Find the band joist by measuring down from the 2nd story window. When you attach the ledger boards to the fascia, they should be held securely with bolts through the wall, or you can use lag screws.

Should you use screws or nails for joist hangers?

Outdoors use 16d double-dipped galvanized nails (or stainless steel when called for) for installing hangers. … The manufacturers agree: Never use galvanized deck screws or drywall screws to install joist hangers. Those screws don’t have the shank size and toughness to support joist loads.

Can you nail flashing?

If you nail step flashing to the wall and to the roof, you’re asking for trouble. Most of the time, I like to avoid putting any extra holes in the roof surface, so I nail step flashing to the sidewall only, where both the next piece of flashing and the siding will cover the nail head.

Can you use galvanized nails on aluminum flashing?

Nail manufacturers recommend that you go with aluminum or stainless steel fasteners when you’re using either of these woods—and whenever you’re using pressure-treated wood. … Also, never use galvanized nails with copper flashing.

Can I nail through aluminum flashing?

Aluminum should be nailed with aluminum nails. Copper should be nailed with copper nails.
