For application of vertical siding to gables, use the same method described in Fig. 58 for a balanced appearance. Begin by fastening J-channel along the inside edge of the roof. Install an upward-facing J-channel as a vertical base on top of the previously installed J-channel at the base of the gable, as shown in Fig.

Can you join vertical siding?

For application of vertical siding to gables, use the same method described in Fig. 58 for a balanced appearance. Begin by fastening J-channel along the inside edge of the roof. Install an upward-facing J-channel as a vertical base on top of the previously installed J-channel at the base of the gable, as shown in Fig.

Can you nail into siding?

To make your home more beautiful or to celebrate different holidays or seasons, you may want to hang decorations on the side of your house. This can be tricky with a vinyl-sided house because you shouldn’t drill or nail through the siding. Holes can cause water to seep behind the vinyl, creating problems for your home.

Do you need furring strips for vertical siding?

While typical siding installation require furring strips to be installed vertically, this is not the case when it comes to vertical siding installation. If vertical siding was set onto horizontal furring strips, any water that intrudes would have no place to go.

Can you use roofing nails for siding?

Galvanized Roofing Nails Are Your Best Bet for Siding Success. It’s not surprising to hear that you need a galvanized nail on your home’s exterior—after all, regular fasteners could rust when exposed to the elements.

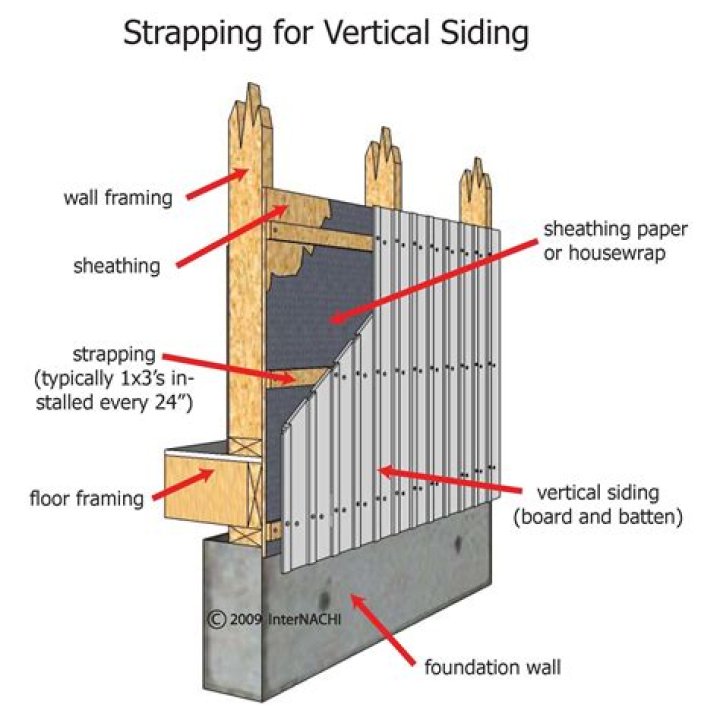

How do you nail vertical shiplap siding?

For vertical channel shiplap, nail through siding into each blocking line. Alternatively vertical siding can be nailed to 1”x 3” furring strips and solid wood sheathing. In both these vertical siding applications, nailing should not exceed 24” centers in the vertical plane.

Can you hang vinyl siding vertical?

All vinyl siding can be installed horizontally or vertically, and each has its own advantages and disadvantages. Obviously, most homeowners opt for the horizontal setup, but vertical isn’t completely unheard of.

What nails do you use for vinyl siding?

Use aluminum, galvanized steel, or other corrosion-resistant nails, staples, or screws when installing vinyl siding. Aluminum trim pieces require aluminum or stainless steel fasteners. All fasteners must be able to penetrate a minimum of 1 1/4” (32mm) into nailable material, such as wood sheathing and framing (Fig.

Should I put foam board behind my vinyl siding?

Basically, in order to get a good insulation value out of foam board, it has to installed directly on the sheathing of the house. … Basically, if you want extra R-value for your walls but do not want to tear off your siding, don’t bother with the foam board.

Should you drill into siding?

If you want to attach items to the exterior of a home covered with vinyl siding, you must drill through the siding first and then into the structure of your home to properly secure them. While special tools aren’t necessary to drill into your siding, you must exercise caution when doing so to prevent damage.

Article first time published on

How do you attach siding?

Siding Hooks The easiest and safest way to hang something from vinyl siding is to use a siding hook. It slips into the groove between adjoining slats, and once it clicks into place, you can hang items as heavy as 12 pounds.

Where do you nail siding?

Start nailing vertical siding and trim pieces in the top of the uppermost slots to hold them in position. Place all other nails in the center of the slots. Space nails a maximum of 16 inches apart for horizontal siding panels, every 12 inches for vertical siding panels, and 6 to 12 inches for accessories.

Do you have to nail siding into studs?

Horizontal Siding If the sheathing is solid plywood or OSB, you may be able to attach siding to it. In most cases, however, nails should be driven into the studs. At the bottom of the installation, a wood strip, additional layer of siding, or special starter strip makes the bottom piece flare out a bit.

What does vertical furring behind siding create?

Furring strips will create the air gap needed to ensure uninterrupted ventilation and drainage behind the siding. Remove any materials that may hinder airflow or drainage behind the siding.

What is the difference between roofing nails and siding nails?

Siding nails are longer than roofing nails since they have to hold up more weight. They’re not designed to be removed, so they have smaller diameter heads and ringed shanks that grip the wood better.

Can framing nail gun be used for siding?

The answer is, yes. Framing nail guns can be used for siding installation, if the nail being used is long enough to attach the siding firmly to your exterior wood sheathing. While it’s recommended to always use a siding nail gun for siding installation, in a pinch, you may be able to use a framing nailer instead.

What size roofing nails do you use for siding?

Use only corrosion-resistant nails (aluminum, stainless or galvanized roofing.) Nails should have a minimum head diameter of 5/16″. CertainTeed recommends the use of stainless steel nails or other corrosion-resistant fasteners when installing siding in coastal areas.

Is vertical siding more expensive?

When considering the cost of installation, vertical siding is more expensive and time-consuming to install than horizontal siding because furring strips are placed underneath first to ensure that the siding is aligned properly and smoothly.

Which is easier to install vertical or horizontal siding?

Furthermore, most homeowners prefer the appearance of horizontal siding as opposed to vertical siding. It’s also much easier to install, so the project can be done in about half the time required for a similar vertical siding installation project.
