On the conduit, measure from the free end to be bent up the calculated number and mark the conduit. As an example, to bend 3/4” EMT conduit have a free end height of 8.5”, the table indicates to subtract 6” from the 8.5” which leave 2.5” from the end to bend up to make the mark.

How do you bend 3/4 offset?

On the conduit, measure from the free end to be bent up the calculated number and mark the conduit. As an example, to bend 3/4” EMT conduit have a free end height of 8.5”, the table indicates to subtract 6” from the 8.5” which leave 2.5” from the end to bend up to make the mark.

What is the best conduit bending app?

• Conduit Bender Elite™
• QuickBend.
• Electrical Conduit Bender – FREE (Android Only)
• Master Bender Gold – iPhone.

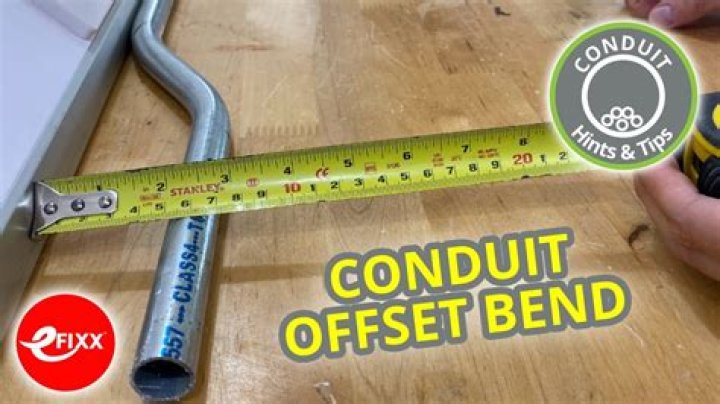

Why is an offset bend done in the conduit?

One of the more common bends made in electrical conduit is the offset bend: a technique used to move a run of conduit a set distance to one side, up or down. … Fewer degrees of bend also result in an easier pull when it comes time to pull wire into the conduit—always a good thing.

What is the multiplier for 10 Bend?

This is where the multipliers of 6 for 10 degrees, 2.6 for 22.5 degrees, 2.0 for 30 degrees, 1.4 for 45 degrees, and 1.2 for 60 degrees come from. This method is an approximation and is not mathematically correct, because it does not use the length of the arc of the bend.

How many inches do you deduct for a 90 degree bend?

Bender SizeDeduct1/2″5″3/4″6″1″8″

What is the multiplier for a 22 degree bend?

Degree of BendMultiplier10 degrees6.022 degrees2.630 degrees2.045 degrees1.4

How do you bend PVC conduit without a bender?

Method 2: Using the Oven or Stove-Top If you don’t have a hairdryer, you can simply pop some sand into the oven or on the stove. The sand will transfer heat to the pipe, making it flexible enough to bend.

What offset bend means?

Offset bends are used to move a run of conduit from one plane to another. An offset is normally used to bend the conduit around an obstruction, or to relocate the conduit close to a structural member to make it easier to fasten the conduit.

Can you bend conduit without a bender?

So you have some pipe that needs to be bent but you don’t have a pipe bender. … The point of using sand is to support the pipe (keep it round) so that it does not buckle when bent. It worked for me! Plan ahead – the end closest to the bend will likely have to be cut off and discarded.

Article first time published on

Does electrical conduit bend easily?

The right angle, or 90°, bend will be the first bend. Anyone can quickly learn to bend a 90 in electrical conduit and then cut the conduit to fit, but the professional will not need the cut. … Work the bender onto the conduit and line the arrow on the bender up with the mark; place the bender and conduit on the floor.

What is the take up for a 90 degree bend in 1/2 EMT?

5 Steps to Bend a 90 Degree Using 1/2 Inch EMT Conduit For this example we’ll use a stub up length of 8 inches (8″). Using the table above we know the take up for 1/2 inch EMT is 5 inches.

How do you calculate a tube bend?

1. OD = Outer diameter.
2. π = Pi.
3. CLR = Bend radius.

What is the combination of bends between pull points?

National Electrical Code or NEC limits the total number of bends in one continuous run to 360 degrees or four 90 degree bends. It specifically states, “There shall not be more than the equivalent of four quarter bends (360 degrees total) between pull points, for example, conduit bodies and boxes.”

When making a saddle bend where does your first mark need to be?

To recap: The first bend is made with the conduit mark at the customized “center of 22°” mark you made on the bender. Each of the other bends are made with the conduit mark at the normal arrow used for making a 90° bend with the toe of the bender pointed towards the center mark.

What is the name of the Bender used to bend only rigid conduit?

Another way to bend rigid or IMC conduit by hand is to use a full sweep bender for rigid or use an EMT bender. To use an EMT bender, the electrician would use a ¾” EMT bender for ½” rigid or IMC and for ¾” rigid or IMC, he would use a 1” EMT bender. The hickey bender is only used for Rigid or IMC.

How do you calculate rolling pipe offset?

1. Determine the horizontal and vertical offsets of your pipeline.
2. Take the square root of the sum of the horizontal and vertical offsets’ squares. This will be the true offset of your rolling offset.
3. Finally, multiply the true offset by 1.4142 or divide the true offset by sin(45°).

What is PVC offset bend?

PVC Bendit is a tool that uses heat to soften PVC pipe from the inside. … It is primarily used to bend PVC pipe, though it can also be used to bend other thermoplastic tubes and sheets. It works by bringing up the temperature of the pipe or sheet to the softening point of 176 degrees or higher.
