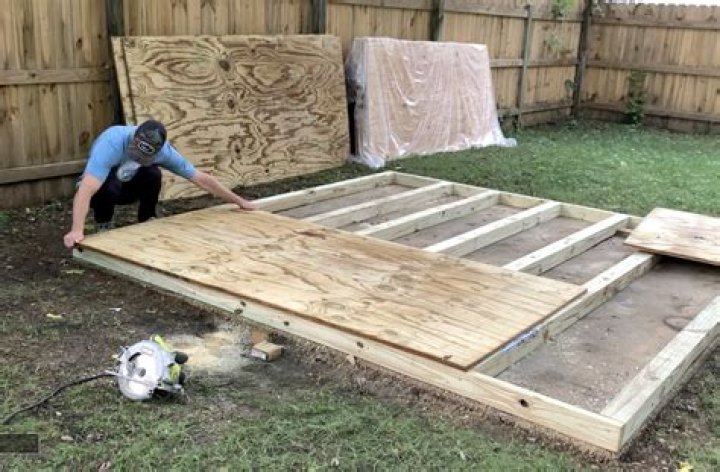

Make an 8 by 8 foot floor framework using 2”x6”x8′ pressure treated lumber. … Use your completed floor as a work surface to build your walls. … Build front and back walls 89″ wide by 72” tall in the same fashion. … Use 2”x4”x8′ lumber for the roof framing. … Roof the shed by nailing ½” plywood to the rafters with 8D nails.

What should I put down on my shed floor?

1. Epoxy Floor Coating. Save. …
2. Concrete Paint. Save. …
3. Concrete Sealer. Save. …
4. Timber Tongue and Grooved Planks. …
5. Oriented Strand Board (OSB) …
6. Pressure-Treated Plywood. …
7. Wood Shed Floor Protection Paint. …
8. Wood Stain and Sealer.

Should a wood shed have a floor?

Keeping your firewood off the ground will prevent moisture from soaking into the bottom row of wood. … It will also help prevent insects from contaminating your wood stack. If your shed has a cement floor, it may not be necessary to stack it off the ground.

How far apart should shed floor joists be?

In many circumstances, 16 inches would be your standard spacing for shed floor joist, but this is just a rough guideline. Two options that arise could be your wider 24”’ and your narrower 12” options for spacing. 2x8s are used frequently for these projects. 2×8’s come standard at 1-¾ inch thick.

How high should a shed be off the ground?

While the measurements vary slightly for exactly how high off the ground a shed should be, it is recommended to build your shed at least 4 inches off the ground to allow for air to circulate underneath it.

How thick should plywood be for a shed floor?

The recommended shed floor plywood thickness is 3/4 inch pressure-treated exterior-grade CDX plywood. This type of plywood won’t sag when used on a 12 inches joist structure. It is rot resistant with knots replaced with football shaped plugs to give it a smooth moisture-resistant surface.

How do you make a floor for a shed?

1. Measure and cut rim joist and floor joist boards from 2×6 treated lumber.
2. Set rim joists on shed foundation.
3. Nail outer floor joists to rim boards.
4. Attach the joist hangers to rim joists.
5. Install the rest of floor joists.
6. Make sure the floor framing is square.

Can I use 2x4 for shed floor?

If building on a foundation other than a treated wood frame, you will need to acquire 7 units of 10 ft long pressure-treated 2x4s to put under the shed for floor joists, and shorten them to 9′ 2 3/8”.

How do I keep my shed floor from rotting?

1. The place where your shed’s floor system meets the ground is at the greatest risk of rotting.
2. Your storage building should be slightly elevated to allow for better air circulation.
3. For best results, the entire floor frame should be built with weather-resistant materials.

Can you use OSB for shed floor?

A tongue-and-groove style of OSB is best for shed flooring. These panels have a protrusion, or tongue, on one edge, which fits into a slot or groove on an adjoining panel, adding strength to the connection and also reducing the chance of moisture penetration.

Article first time published on

Do I need joist hangers for a shed floor?

The best shed-floor framing is simple and sturdy If the joists are set atop a plate (see picture) then you won’t need joist hangers to reinforce the ends of each joist. If no plates are used, you must use joist hangers. … Don’t forget to use galvanized nails for constructing this portion of the shed frame!

How do you waterproof plywood on a shed?

When sealing a plywood shed floor, you can treat it like particleboard or metal. Opt for a modern, water-based nano sealant that mimics the style of oil sealants for a good view of the natural wood and excellent permeation. Alternately, you can use a rubber sealant that is low in VOCs to lock everything out safely.

What is the best material to put under a shed?

• Gravel is the best shed foundation, especially for portable buildings that come with a wood floor.
• Concrete is the ideal foundation for a garage or a shed without a pre-built floor.

Do I need a vapor barrier under my shed?

Your shed does not need moisture or vapor barrier unless you plan to heat or cool it. The plastic should be 6 mil poly, but 10 mil to 20 mil is better. If you heat your shed, the barrier goes on the inside of the wooden frame. If you cool your shed, the moisture barrier goes on the outside of the building.

Do you need to put gravel under a shed?

Having the area beneath and around your shed free from vegetation will prevent the base of your shed becoming damp and prone to decay. Drainage – Having the stone beneath the shed will make it easy for any rain or ground water to quickly disperse.

Can you build a shed without a floor?

Without a foundation there is no need for a floor. Where a traditional shed might have been built upon a block foundation or have a concrete floor this type utilises the natural dirt floor (A floor of crushed stone, concrete or timber can be added later as and when the budget allows).

What kind of wood should I use for a shed floor?

plywood for your shed floor. Ordinary exterior-grade plywood is made with weather-resistant glue, but the wood itself is not particularly rot resistant. This is why pressure-treated plywood is best for a shed floor.

What do I use for a subfloor?

Plywood is considered the most popular material used for subflooring, it has been used since the 1950s and remains one of the top choices for contractors. Standard plywood works perfectly fine as a subflooring material, but the best option is ¾” tongue-and-groove plywood subflooring.

Is OSB better than plywood?

Osb is stronger than plywood in shear. Shear values, through its thickness, are about 2 times greater than plywood. This is one of the reasons osb is used for webs of wooden I-joists. However, nail-holding ability controls performance in shear wall applications.

Do I need treated plywood for shed floor?

It will resist decomposition from being exposed to wetness from either rain, dripping outdoor appliances like snow blowers, or tracked-in mud and moisture. In wet, foggy and moist conditions, a pressure-treated plywood floor is a must to maintain the integrity of the shed and the shed floor.

What thickness OSB for shed floor?

18mm. Everything else just sags. OSB will always have a tendency to sag imo, if you want to lay something on top I would go for 15 or 18mm moisture-resistant chipboard T&G flooring. And in 2400mm X 600mm it’s probably easier to lay than sheets of 1220mm X 2440mm OSB too.

What is better for shed floor OSB or plywood?

OSB is good for a shed floor construction because it is flat and free of knots. It is also more consistent than plywood and other flooring materials because every sheet is the same.

Is OSB cheaper than plywood?

OSB is less expensive than plywood. To build a typical 2,400-square foot home, OSB may cost $700 less than plywood. OSB is considered by many to be a “green” building material because it can be made from smaller-diameter trees, such as poplars, that are often farmed.

Can I use nails instead of joist hangers?

The joists are supported by the hangers, which are themselves fastened to the ledger boards. You can use either specialized galvanized bracket screws made specifically for joist hangers or simply use 8d or 10d nails, as indicated by the bracket manufacturer.

What is the maximum span for a 2x6 floor joist?

The maximum distance a 2×6 can span, according to the 2018 IRC, for a floor joist, is 12′-6”, ceiling joist 20′-8”, rafter 18′-0”, deck board 24”, deck joist 9′-11”, deck beam 8′-3”, and 6′-1” as for header. Always check the codes for determining factors or consult a Structural Engineer.

Can you nail floor joists?

But for floor joists, stick with “common” nails — they are thick enough for the job and designed to support more weight than other nail types. Common nails are standard for floor joist installations. These facts help determine which nails are appropriate for which toenailing job.

Should I paint floor of shed?

Painting the shed floor helps protect and seal the wood, it reduces splinters, makes it easier to clean, and it looks so much better. Caulk any seams or gaps, patch any holes or gouges, and use exterior grade oil based paint for decks or floors. A primer-sealer as a first coat is a good idea too.

Why is the floor of my shed wet?

Moisture, caused by damp, wet conditions can get trapped inside sheds, especially if they are not used often. If the outside temperature drops, any moisture inside the shed will cause condensation on the inside of the shed panels, roof, floor and possibly other items stored in the shed.

How can I protect my wooden floor from shed?

To combat this, you need to make sure your shed is raised off the ground. People often use an impermeable material such as concrete, as it makes a strong sturdy base, to put the shed on. However, you can use a treated wood base such as an EzeBase or a plastic base such as an EcoBase.
