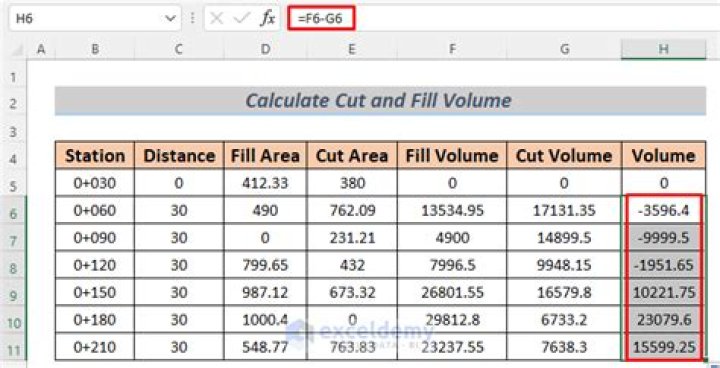

Once the cut or fill depth is calculated, multiply the value by the area of the grid cell. Do this for each square of the grid, then add the volumes together to determine the total cut and fill volumes for the project.

How do you calculate area and fill?

1. Measure the length, width and depth of the area you want to fill with dirt. …
2. Calculate the volume of dirt needed to fill the area you measured by multiplying length (120 inches) by width (60 inches) by depth (30 inches). …
3. Convert cubic inches to cubic yards by dividing by 46,656 cubic inches.

What is cut fill ratio?

The cut/fill ratio is determined by the type of material being moved and what percentage of it will “settle” or “shrink” once compacted. … Example: Setting the Cut/fill ratio at 1.2 means that you are moving at the rate of 1.2 cubic yards of cut to get 1.0 cubic yards of compact fill.

How do you calculate earthwork in a filling?

Volume = Sum * 100 (Area of Each block) = 4.6225 * 100 = 462.25 (Filling).

How do you calculate a filling?

Area of the plot = Length x Width = 40 x 30 =1200 sft. Suppose we need to fill the plot by 3’5” = 3.41 feet. ∴ Depth of the plot = 3.41 feet. Volume of plot to be filled = 1200 x 3.41 = 4092 cft.

What is cut and fill in construction?

In earthmoving, cut and fill is the process of constructing a railway, road or canal whereby the amount of material from cuts roughly matches the amount of fill needed to make nearby embankments, so minimizing the amount of construction labor.

How do you calculate cut and fill by hand?

This method involves drawing horizontal and vertical lines over your site plan to divide it into grid cells of equal size. You then include the existing elevation and proposed elevation for each corner of the grid cells, and work out the difference between the two, as this will be cut or fill depth for that spot.

What is a cut fill analysis?

The Cut Fill tool summarizes the areas and volumes of change from a cut-and-fill operation. By taking surfaces of a given location at two different time periods, it identifies regions of surface material removal, surface material addition, and areas where the surface has not changed.

How is Earthwork calculated?

To calculate the earthwork estimate requires multiplying the area by the difference between the average of two sets of levels. Formula: Volume = Area * Difference between the average of two sets of levels.

How do you calculate backfill and excavation?

1. Backfill volume = excavation volume – footing volume – wall volume. …
2. (Note that only the portion of the wall that is in the trench is deducted, so the height of wall in the trench is the average trench depth minus 2′-0” for the footing: 6′-0” – 2′-0” is 4′-0”)
3. Backfill volume = 207.4 cubic yards.

Article first time published on

How do you calculate sand fill?

1. Measure number of square feet in the area.
2. # of square feet x depth in feet = # of cubic feet.
3. # of cubic feet /divided by 27 = # of cubic yards.
4. # of cubic yards x (unit weight in pounds / 2000) = # of tons needed.

How do I calculate how much soil I need?

1. Determine the length and width of the area you want to cover with soil. …
2. Calculate the area, multiplying the length by width. …
3. Establish the depth – thickness of the topsoil layer. …
4. Multiply the area and dirt layer thickness to obtain its volume: 56 * 0.5 = 28 yd³ .

How do you do earthwork in Civil 3d?

1. Click Analyze tab Volumes and Materials panel Earthwork Plan Production Find. …
2. Select the existing ground TIN surface.
3. Select the finished ground TIN surface.
4. Optionally, select a grid point. …
5. Optionally, select a 2D polyline as a boundary.

How is cut off marks calculated?

Cutoff marks are calculated by converting the Maths marks to 100, Chemistry marks to 50, Physics marks to 50 and then adding them up. The cutoff total marks will be a maximum of 200.

What are the methods of calculating volume?

The formula for the volume of a rectangular solid is Volume = length * width * height, or V = lwh.

What is cut factor and fill factor?

n Cut factor: Compensates for the expansion factor of the material left after the cut. n Fill factor: Compensates for the compaction factor of the fill material. For example, for a material that expands 15 percent, type the value 1.15.

What is cut factor in Civil 3d?

For example, a 1.2 cut factor would mean that for every 1.0 cubic meter of material removed, 1.2 cubic meters of volume would need to be accounted for transport.

What is the slope of a cut and fill called?

Side slope (Figure 5-2) is defined as the slope of the cut or fill expressed as the ratio of horizontal distance to vertical distance.

What is cut and fill slope?

Cut and fill slopes means a portion of land surface or area from which soil material is excavated and/or filled forming a slope or embankment.

How do you calculate backfill material?

For example, find the cubic footage volume of a backfill area that is 8 feet wide, 6 feet deep and 50 feet long. The volume of a rectangular cubed shape is found by the formula v = l x w x d, where v represents volume, l is the length of the trench, w is the width and d is the depth.

How do you calculate topsoil excavation?

To calculate how much topsoil you need, simply measure the dimensions of the area you wish to cover and multiply this by the depth required. Measuring in metres is simplest, as this will give you the volume of topsoil you need in cubic metres. For example: A site has an area of 10m x 15m and needs a coverage of 150mm.

How do I calculate my construction grade?

Grade can be found by measuring the horizontal length of an elevation, the run, and the vertical height of the elevation, the rise. Grade is expressed as rise/run, so if the rise is 25 and the run is 80 the grade is 25/80.

How do surveyors mark property lines?

In a modern survey, property lines are marked with orange flagging tape and at regular intervals trees are blazed then sprayed with reflective paint. Surveyors mark corners with a large wooden post and a metal pin driven in at the base.

What is cut soil?

Seeding & Cutting Soil is an enriched soil mixture that is very suitable for sensitive cuttings and seedlings. It is a fine and even mix based on peat and sand. … Especially made for sensitive cuttings and seedlings.

How do you calculate excavation volume and slope?

Now, what if we have a column footing that is 3 feet x 3 feet and all four sides are sloped? Many would calculate the volume as the average width * the average length * the depth, or 10*10*5 = 500 cf, or 18.5 cy.

How do you calculate backfill gravel?

Multiply the length of the wall by the desired height, then divide this number by 81 to determine the amount of backfill gravel needed. Add the backfill amount to the base amount to determine the total cubic yards of gravel necessary for completing the wall.
