A dimmer switch can be installed anywhere that an existing on or off switch is in place. Replacing the current toggle switch with a dimmer switch will allow you to change the lights’ brightness, so long as you are using a light bulb that is compatible with the dimmer you have chosen.

Do dimmer lights need special wiring?

Remember: Dimmer switches don’t work on most fluorescent fixtures, and low-voltage lighting requires special low-voltage dimmers. … Remove the wires from the old switch. Dimmer switches are usually connected to the house wiring by short lengths of wire coming out of the switch body rather than by screw terminals.

How do you know if a light is dimmable?

Check The Light Bulb Check if the light bulb you are about to use is dimmable. Dimmable light bulbs work fine on a non-dimmable circuit; however, non-dimmable light bulbs will not work on a dimmable circuit. You can find this information on product packaging or on our product listing pages.

How do I install a dimmer switch without a ground wire?

In that case, an exception in article 404.9(B) of the current National Electric Code (NEC) allows a dimmer without a connecting ground wire to still be installed if it is a replacement. Simply remove the dimmer wire, or cut it short and cap it with a wire nut.

How do you know if a light fixture is dimmable?

LEDs that are dimmable are typically labeled as such on the box. If it isn’t labeled as dimmable, it’s safe to assume it isn’t. Use only dimmers designed for LED to dim LED light bulbs! Please note that dimmable LED lamps currently have a lower dimming range than a filament lamp.

Do dimmers need a neutral?

Since most Insteon-compatible wall switches and dimmers require a neutral wire connection to operate, you need to know if you have one of these in place. … It’s not just Insteon switches and dimmers but most smart lighting in general that call for this neutral wire.

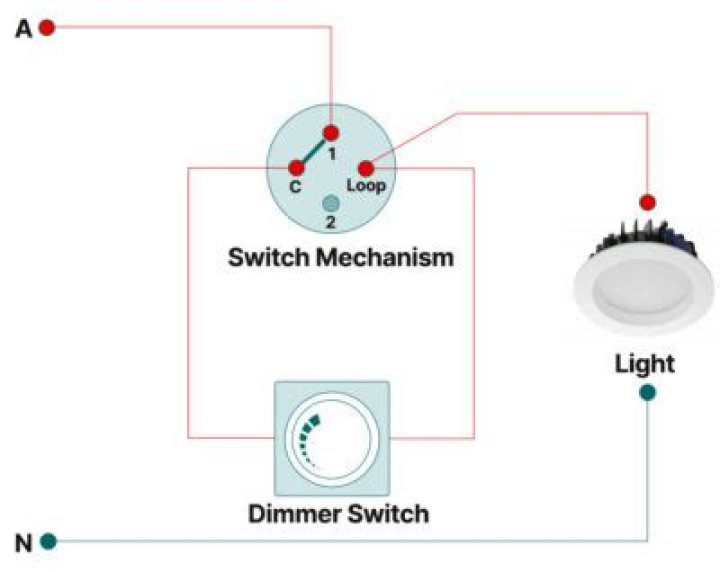

Where does the red wire go on a dimmer switch?

1. Black is the common terminal, and is attached to the ungrounded (hot) conductor feeding the switch.
2. Red is the switched lead (or a traveler in a 3-way installation), and is attached to the switched hot going to the light.
3. Red with white is a traveler, used for 3-way installations.

How does a light dimmer switch work?

A dimmer switch changes the direction of electrical flow every time that it is used to dim or brighten the lights. … Ultimately, the dimmer switch controls the electrical cycle for dimming a light. When the switch is turned down low the cycle takes longer to complete, and the light emits a lower level of brightness.

Can you add a dimmer switch to LED lights?

A standard dimmer switch cannot be used with an LED light as you will never be able to dim the LED light either completely or not very well. LED lights need their own special electronic dimmer switch to have a fully functioning and dimming light.

What happens if a light switch doesn't have a ground wire?

Grounding light switches have become commonplace, used as a preventative safety measure. It is perfectly legal to wire a light switch without the inclusion of a ground.

Article first time published on

Is there a ground wire on a light switch?

-A ground wire connects to a switch to safely carry additional electrical current away from the switch box to prevent dangerous electrical buildup or shock. -It is usually attached to a green screw terminal on the existing light switch. -It is usually green or bare copper without insulation.

Why is dimmer switch not working?

A dimmer switch that is not working is often caused by a loss of power or a faulty dimmer. First, check to see if you have a tripped circuit breaker causing you to lose power in the room. … However, a dimmer can fail due to age, repeated use, or loose wire connections that cause them to short circuit.

Do you need special light bulbs for a dimmer switch?

How does a Dimmer Switch work? … These switches are designed to work with CFLs, Halogens, and Incandescent light bulbs. But the bulbs need to be of the latest technology and must have the feature of dimming to allow it to be used with a dimmer switch.

What is the dimmable symbol?

The Dimmable Symbol, when you see this displayed on a LED lamp box it means the lamp can be used on a dimmer switch so that the light can be adjusted from dim to bright.

What dimmer switch do I need?

Choose a dimmer with a wattage rating that meets or exceeds the total wattage of all the light bulbs the dimmer will control. For example, if the dimmer controls a fixture with ten 75-watt bulbs, you need a dimmer rated for 750 watts or higher.

What happens if you put a non dimmable LED bulb in a dimmer?

So what happens if you use non-dimmable LEDs on a dimmer? Well, at best the bulb just won’t dim properly. … But non-dimmable LEDs are only designed to be either fully powered ON or OFF, which means the circuitry inside won’t be able to handle low or pulsing current levels and will eventually become damaged.

How do I make my ceiling light dimmable?

All you have to do is change a light bulb in your house and place the switch plate on the wall. The dimmer has a sticky pad on its back side that you can stick to anything, like the original light switch or the wall next to the light switch.

Do you need 4 wires for dimmer switch?

Things You’ll Need Wiring a three-way dimmer switch uses four wires and allows you the convenience of dimming the light from separate switches at opposite ends of a room.

What's the yellow wire on a dimmer switch?

You need to identify which black on the new switch is “always hot” or “line in” and connect that to these two wires with a wire nut. The yellow wire is the switched hot on the new switch – that should be the other black.

Can I connect red and black wires together?

Red Electrical Wires These wires are typically used for switch wiring as well as the interconnection between smoke detectors hard-wired into the power system. You can link two red wires together, or you can link a red wire to a black wire. Since red wires conduct current, they are considered hot.

Is the neutral wire the same as ground?

a ground and a neutral are both wires. unless they’re tied together with other circuits, and not a ‘home run’ back to the panel, there is no difference between the two where they both end up on the same bus bar in the box.

Which wire is ground?

The white wire is the “neutral” wire, it takes any unused electricity and current and sends it back to the breaker panel. The green wire (or it can sometimes be uncolored) wire is the “ground” wire, it will take electricity back to the breaker panel, then outside to a rod that’s buried in the ground.

How many recessed lights can you put on a dimmer switch?

A general rule of thumb when it comes to LED recessed lighting is to allow for roughly 100 watts per recessed light fixture. Therefore if you have a 600W dimmer, you should have around six lights on the switch and no more.

What bulbs are best for dimmer switches?

Incandescent light bulbs are the dimmer-friendly bulbs, as they work well with any dimmer switch. When using incandescent bulbs, make sure not to crank up the voltage too high, or the bulb will burn out more quickly, lessening the lifespan.

Does a light dimmer save electricity?

Not only do modern light dimmers save you energy, but they also extend the life of your light bulbs! Dimmers use a “Triac Switch” to rapidly turn a light circuit on and off to reduce the energy flowing to a light bulb. This switch will cut the energy running to the fixture up to 120 times in one second.

What are the two basic types of dimmers?

The two basic types of dimmers are electronic and autotransformer.
