Evacuate the entire AC (vacuum out all R-22 refrigerant)Flush out any trace of R-22 then wait for the system to dry completely. … Replace the compressor, accumulator and expansion valve with ones that can handle the higher temperature and pressure of R-410A refrigerant.

Are evaporator coils interchangeable?

Most manufacturers specify that if you replace either the evaporator coil or condenser coil, it must be the same size (and SEER rating). Otherwise, they’ll void any remaining time on the warranty. This is because manufacturers specifically design both coils to work synergistically.

What refrigerant can be mixed with R-410A?

You can mix R-22 and R-410a refrigerant in the same system.

Are R-22 and R-410A fittings the same?

R-22 and R-410A, while intended for the same type of appli- cations, are indeed very different refrigerants. … This also explains why many of the tools, accessories and components used for R-22 cannot be used with R-410A. Pressure gauges and hoses need to be rated for the higher pressures, or they can be damaged.

Are R22 coils still available?

As of January 1, 2020, production and import of R22 refrigerant will be illegal in the United States. Of course, continued use of your air conditioner (AC) or heat pump system using R22 refrigerant is allowed.

What is the difference between an evaporator coil and a condenser coil?

Evaporator Coils vs. Condenser Coils. The evaporator coil is the part of an air-conditioning system that removes heat and moisture from indoor air to cool it. The condenser coil takes that heat and releases it outside.

Can you undersize an evaporator coil?

So the next time you’re tempted to replace one coil and not the other, or you want to undersize or oversize one coil, the consensus is: don’t do it.

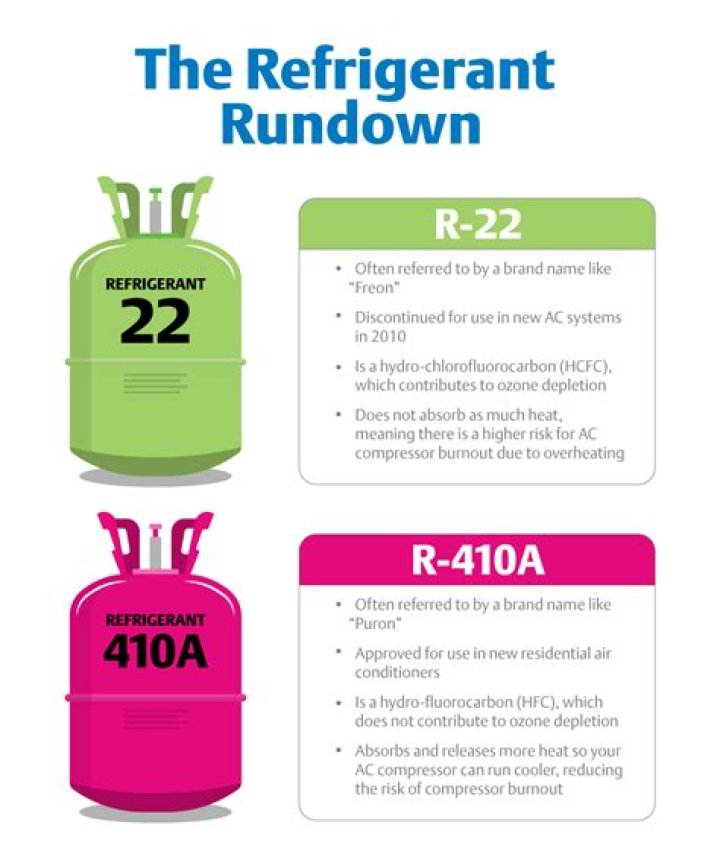

What cools better R-22 or R410A?

Improved efficiency: R410A is able to absorb and release heat better than R22, making it more energy efficient. Plus, because it’s more fluid in temperature changing abilities, it does a better job heating or cooling your house quickly.

What refrigerant can you mix with R-22?

The most commonly mixed refrigerants in the field are the replacements for R-22 — R-427A, R-438A, R-422D, and R-407C — which are often combined with the remaining R-22 in the system, said Maiorana.

What refrigerant is compatible with R-22?

The best replacement for R-22 Freon is usually R-407c. It has a very low loss in capacity (0 – 5%) relative to R-22 and is less expensive than many other R-22 replacement refrigerants. If a system has R22 in it already you cannot use a replacement refrigerant to simply add to the R22.

Article first time published on

Can I use a 3 ton coil with a 2.5 ton condenser?

The short answer is, you can’t. A good tech might be able to get it to work with like a TXV, but you are going to be bottle-necked at the 3-ton. There is no way you will get 5-ton capacity after that. It will mess up your warranty and your efficiency will be off.

Will a 3 ton coil work with a 2.5 ton condenser?

The main reason is for slightly better efficiency. I have the exact situation in my house as you mentioned…a 2.5 ton AC with a 3 ton coil. You won’t notice any improved performance, but the SEER of the total system will be somewhat improved.

Can I use a 5 ton condenser with 4 ton coil?

You do see 4 ton coils as an AHRI match on a 5 ton condenser. Usually though this is not the best match. Customer should get better dehumidification only if sized correctly.

Is the evaporator coil inside or outside?

An evaporator coil is the part of an air conditioner or heat pump that absorbs the heat from the air in your house. It is located inside the air handler or attached to the furnace.

How do you match a condenser and evaporator?

Evaporator Coils Further to this explanation, in an ideal HVAC unit the two sets of coils are designed to match one another. The evaporator coil should be ideally sized to soak up the same amount of heat that the condenser coils are able to dump into the air outdoors.

Is evaporator coil part of furnace?

The furnace evaporator coil plays one of the most critical roles in an HVAC system. It can sometimes be found inside your air handler but is commonly located within the furnace itself. The evaporator coils job is to help the refrigerant in the HVAC absorb heat from the surrounding air.

Can you put a 410A condenser on a R22 coil?

Can I use an R410A condenser with an R22 air handler? No, you cannot. To make a short story long, R410A and R22 are refrigerants. They are both good refrigerants and they both work, but they have to be charged in the system at different pressures.

What happens if you mix R134A and R22?

If you add R-22 to an R-134a system, you will not get close to the rated cooling capacity of the A/C system. In conclusion, do not mix R-22 with R-134a refrigerants, you will ruin the charge, and possibly seriously damage or destroy your A/C system. NEVER mix refrigerants.

What happens if you mix R22 with MO99?

Mixing refrigerants is never recommended. However, based on the similar operating conditions of Freon™ MO99 and R-22, system damange would not be expected.

What happens if you put R-22 in a 410A system?

Understand this: The mineral oil in a compressor has a vapor pressure. … If that’s so, then what R22 there is in the system can never evaporate under the higher suction pressure of R410a. It will just flood back to reduce the compressor life and will greatly reduce the system capacity.

Why is R-410A so expensive?

The first is due to the current worldwide shortage of R125. As R125 is one of the two component refrigerants of R410a (the other is R32), any shortage of this gas significantly affects the production and consequently the price of R410a.

Is 410A the same as R-410A?

R-410A, sold under the trademarked names AZ-20, EcoFluor R410, Forane 410A, Genetron R410A, Puron, and Suva 410A, is a zeotropic but near-azeotropic mixture of difluoromethane (CH2F2, called R-32) and pentafluoroethane (CHF2CF3, called R-125) that is used as a refrigerant in air conditioning applications.

Is it illegal to mix refrigerants?

Due to the destructive effects of the compositions of refrigerants on the environment, the EPA has banned the use of certain refrigerants altogether. These banned refrigerants were to be replaced with new ones, and mixing refrigerants became totally illegal.

Can you top off R22 with 427A?

Can I mix Forane® 427A and R-22? Mixing refrigerants is not recommended as it creates a new refrigerant that is not EPA approved. In addition, it contaminates the R-22. Proper calculation of superheat and subcooling becomes extremely difficult, which could result in damaging the compressor.

Can a 2 ton outdoor unit be installed with a 1.5 ton indoor unit?

A straightforward answer for your question would be YES. You can use any indoor unit for any outdoor unit. Because all the cooling comes from the outdoor unit only.

Can you use a 5 ton condenser with a 4 ton air handler?

A 5 ton outdoor unit will not work with a 4 ton indoor coil and air handler or furnace. The freon won’t boil off correctly.

Can you mix and match AC units?

The short answer is that a handler and condenser can be different brands and the unit will function properly. … To conclude, a mixed combination of different brands of condenser and handler will work, but they always produce some side-effects that can otherwise be avoided with a professional matched installation.

Is a larger AC condenser better?

If you upgrade to a larger or more efficient condenser, the system will run at a lower head pressure and therefore the compressor will run at a lower compression ratio. With all else being equal, this means an increase in efficiency and cooling capacity similar to operating the system on a cooler day.

How do I know what size evaporator coil I need?

Multiply the answer by your proposed volumetric flow rate, measured in gallons per minute. If the evaporator must move 400 gallons per minute: 14 x 400 = 5,600. Multiply the answer by 500: 5,600 x 500 = 2,800,000. This answer is the evaporator’s size, measured in BTUs per hour.

How much does a 3 ton AC coil cost?

The typical price to replace your evaporator coil by unit size is: 2 ton: $550. 2.5 ton: $675. 3 ton: $825.

Can I install a different brand of AC indoor and outdoor unit?

Different brand equipment can almost always work fine. However, because manufacturers design their components to work optimally together, the potential exists for some loss in efficiency when mixing and matching. … The older system’s level of wear and loss of efficiency will have some impact on the new system.
