Open a view that displays the reveal, and select the reveal. Click Modify | Reveals tab Reveal panel Add/Remove Walls. Select the walls to continue adding to or removing from the reveal. Click Modify to exit the tool.

How do I delete part of a wall in Revit?

1. In the drawing area, select the part.
2. Press Delete , or click Modify | Parts tab Modify panel (Delete). A Revit warning displays stating “Edits to the model will cause some Parts to be deleted.”
3. Click Delete Element(s) in the warning dialog to remove all parts.

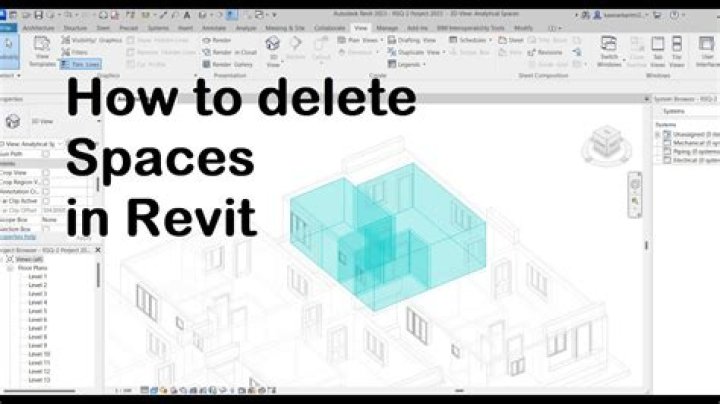

How do I delete a space in Revit?

1. If the project does not include a space schedule, create one.
2. In the Project Browser, under Schedule/Quantities, double-click the space schedule to open it.
3. Do one of the following: …
4. On the Options Bar, click Delete. …
5. At the warning message, click OK.

How do you delete something in Revit?

1. Select the elements to delete, and then click Modify | <Element> tab Modify panel (Delete).
2. Click Modify tab Modify panel (Delete), select the elements to delete, and then press Enter .

How do I delete a pinned object in Revit?

1. Select the elements to be unpinned, and then click Modify | <Element> tab Modify panel (Unpin).
2. Click Modify tab Modify panel (Unpin), select the elements to be unpinned, and then press Enter .

How do I delete a floor in Revit?

Select the modified floor. Click Modify | Floors tab Shape Editing panel Modify Sub Elements. Click on the shape edit element to select it. Press Delete or right-click the element and select Delete.

How do I delete a section in Revit?

Click on the shape edit element to select it. Either press Delete or right-click the element and select Delete.

How do I delete a redundant space in Revit?

In the Project Browser, under Schedule/Quantities, double-click the space schedule to open it. Do one of the following: To delete one space, select the row that contains the space that you want to delete. To delete multiple spaces, drag the cursor across the rows that contain the spaces that you want to delete.

How do you cut concrete beams in Revit?

Beams and columns ends can be cut at a certain angle using Reference Planes and Cut Tool (Modify tab > Geometry Panel > Cut). That is very useful, and will work for every beam and column except for those with Concrete Material Behavior (Family Parameter).

Where is pin in Revit?

Select the elements to be pinned, and then click Modify | <Element> tab Modify panel (Pin). Click Modify tab Modify panel (Pin), select the elements to be pinned, and then press Enter .

Article first time published on

How do I delete a plan view in Revit?

1. Click View tab Graphics panel View Templates drop-down Manage View Templates.
2. In the View Template dialog, under View Templates, use the Discipline filter and the View type filter to limit the list of view templates.
3. In the Names list, select the view template to delete. …
4. Click (Delete).

How do I delete a view category in Revit?

To delete a category, right-click the category name, and click Delete Category.

How do you delete a section in Autocad?

Right-click the Section Remove workflow. Click Execute. Specify the sections to remove. Press ESC.

How do I delete a ceiling in Revit?

easiest way to delete your ceiling is to draw a section through your model select the ceiling and hit delete on your keyboard if you want to place 2 different ceilings in the one room, choose ceiling sketch option on your properties bar sketch first ceilng then do the same for the second one.

How do I edit a floor in Revit?

1. In a plan view, double-click the floor, or select the floor and click Modify | Floors tab Mode panel Edit Boundary. Watch the tooltip and the status bar to be sure you select the floor, not another element. …
2. Use sketching tools to change the boundaries of the floor.
3. Click Finish Edit Mode.

How do I delete a slab line in Revit?

1. Select an existing slab edge. …
2. Click Modify | Slab Edges tab Profile panel Add/Remove Segments.
3. Click edges to add or remove segments of the floor slab edge.

How do you cut structural framing in Revit?

1. Create Generic Model family.
2. Inside family place Void.
3. In Void properties mark “Cut with Voids When Loaded”.
4. Save As family.
5. Load to you project.
6. Place family on structural beam which should be cut.
7. Go to Revit Ribbon Tab Modify -> Cut Geometry.
8. Select element to be cut or host wall.

How do you cut a wood beam in Revit?

1. Open a section view containing the timber beams.
2. From the Architecture tab Work Plane panel (Reference Plane)
3. On the Draw panel, click (Pick Lines).
4. Pick the timber beam line and extend it to cut the other one.
5. From the Modify tab, Geometry section, click Cut.
6. Select the beam to cut and the extended line.

Can we cut a beam?

Also post constitution, cutting may disturb the concrete in the adjoining area. For pre construction, ask the engineer to design the beam as per your requirement. Yes of course it is safe to cut a 7″ core in the beam. But it should be done carefully with causing any cracks in the surroundings of the core in the beam.

Can you cut concrete beams?

Beam = usually something that is structural/supporting something = DO NOT CUT IT without talking to an engineer. Structural concrete beams can have high-tensioned cables internally.

How do I pin a link in Revit?

Select the elements to be pinned, and then click Modify | <Element> tab Modify panel (Pin). Click Modify tab Modify panel (Pin), select the elements to be pinned, and then press Enter .

How do you put an object on a wall in Revit?

1. In a Revit project, open a 2D view or a 3D orthographic view. …
2. Click Insert tab Link panel Decal drop-down (Place Decal). …
3. From the Type Selector, select the type of decal to place in the view.

How do you pin a grid line in Revit?

1. On the ribbon, click (Grid). Architecture tab Datum panel (Grid) Structure tab Datum panel (Grid)
2. Click Modify | Place Grid tab Draw panel and select a sketch option. Use (Pick Lines) to snap the grid to an existing line, such as a wall. …
3. Click when the grid is the correct length.
