What are the required materials for proper foundation drainage?Step 1: Dig the trench.Step 2: Create a proper slope.Step 3: Level the soil.Step 4: Add geotextile and gravel.Step 5: Place the pipe.Step 6: Finish.

How does a foundation drain work?

A foundation drain works by attracting water in the soil around the property from rain, melting snow, or rising groundwater. Once collected, the water is carried away from the structure which prevents flooding and most importantly, residual water damage.

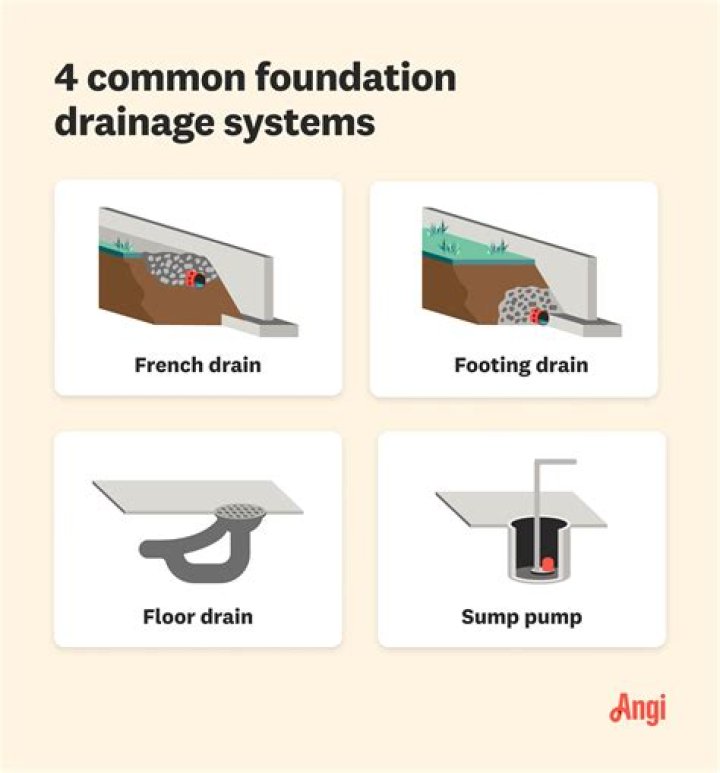

What is a foundation drain system?

Foundation drains are pipes that are installed under your foundation or basement floor to collect water and move it off-site to prevent your basement from filling with water.

How deep should foundation drain be?

For a slab foundation, you want the pipe below the slab or about ​2 feet​. If you have a basement, you can install the French drain ​6 feet deep​ or more depending on the depth of your basement.

Does foundation drain need to be sloped?

ABOUT FOUNDATION DRAINAGE The solid pipe should be sloped at a minimum pitch of 1/4 inch per foot, although a steeper slope is better. If there is more than 200 linear feet of foundation, add a second outlet or increase the size of the outlet pipe from 4 inches to 6 inches.

How far should a French drain be from a foundation?

We recommend installing the french drains between 2 and 5 feet away from the foundation. There are a few variables that impact the exact distance to dig the new drain lines to carry water away from your home. Finding the right distance: Check where water is pooling naturally during heavy rains.

Do you need a foundation drain?

Per most building codes, foundation drainage is required around all concrete or masonry foundations that retain earth and enclose habitable or usable space that’s located below grade. There is one exception to this requirement however.

Where does a foundation drain go?

To carry water away from the foundation, a footing drain system should be installed consisting of a perforated drain pipe (also called drain tile) that is located underground on the exterior side of the footings at a depth below the level of the basement slab or crawlspace floor.

How much does it cost per foot to install a French drain?

According to Fixr, the average French drain costs $4,500. An exterior drain located fairly close to the surface could cost as little as $1,000, or $25 per linear foot on average. Drains installed under your basement floor could cost $2,000 or more. Expect to pay $60 to $70 per linear foot for installation.

Why do French drains fail?

Over time, a French drain may become clogged. Tiny soil and clay granules slip through the pores of the landscape fabric and gradually build up inside the pipe. Another common cause of French drain clogs is root intrusion from grass, shrubs, and trees.

Article first time published on

How do I keep water from coming under my house?

1. Install French Drains. A French drain is a trench that holds a perforated drain pipe surrounded by gravel. …
2. Install a Moisture Barrier. Moisture barriers hinder or stop moisture from moving from one place to another. …
3. Install Area Drains. …
4. Install Swales.

How much does a perimeter drain cost?

TypeCost Per Linear FootAverage Total CostExterior Drain Tile$15 – $30$1,500 – $4,000 per side of house

Where do footing drains drain to?

When you have a footing drain installed, it generally drains to either a storm sewer, sump pump, or to the surface.

How do you do drainage around the house?

1. Clean Your Gutters. This task is both simple and free. …
2. Extend Your Downspouts. …
3. Create A Rain Garden. …
4. Install A Rain Barrel. …
5. Seal The Driveway. …
6. Install A French Drain. …
7. Improve The Grading. …
8. Install A Sump Pump.

Do French drains need an outlet?

A properly designed French drain system does not require an outlet. The water will simply soak into the soil as it flows along the perforated pipe. In fact, a French drain doesn’t require an inlet on just one end either.

Can drains run under house?

Manholes & Junctions On a public drain you cannot have a junction under a floor. The water authority will not accept this as there is a risk of blockage. All drains from the house or extension will need to pass to the external area where they enter a manhole.

Can you make a French drain without a pipe?

Installing a French Drain Without a Pipe When you omit the pipe from a French drain, you’ve basically got a trench drain. … If your soil drains well, you can simply dig the trench and cover the bottom with 3 to 4 inches of 3/4-inch drainage rock, depending on the depth of the trench.

How do you install an outdoor French drain?

1. Plan the Location. Figure out where the excess water is pooling and where you want it to go. …
2. Dig a Trench. …
3. Line the Trench with Filter Fabric. …
4. Pour the Gravel Bedding. …
5. Hook Up the Pipe Connections. …
6. Set the Pipe Drain in the Trench. …
7. Cover with Gravel and Filter Fabric. …
8. Backfill with Topsoil.

How do I make good drainage around my house foundation?

Proper drainage is the best way to keep water away from your home’s foundation. Install a French drain system around the house foundation – Dig a trench around the foundation, line it with gravel, and place a drain with perforations in it to pull the water away. Cover the drain with gravel and add soil over it.

Can you cover a French drain with dirt?

Can I cover a French drain with dirt? Because a French drain has holes throughout the pipe which allow it collect water, you should not install dirt on top of the drain pipe. Installing dirt will clog the pipe and the holes, rendering it useless.

Should French drain be next to foundation?

It’s important to install French drains around foundations because a French drain can prevent water from causing foundation damage.

How do you French drain a house?

1. Call the 811 hotline to have underground utilities marked.
2. Dig the trench system.
3. Line the trench with landscape fabric. …
4. Add 2 to 3 inches of gravel to the bottom of the trench.
5. Lay the drain pipe in the trench, with the drain holes facing down.

How shallow can a French drain be?

Add a Layer of Topsoil to Drainage Ditch Dig a trench along the outside of your footing. The trench should be at least 2 feet wide, and can be as deep as 6 feet for a basement or as shallow as two feet for a slab-on-grade home.

How long do French drains last?

Properly installed drains use advanced plastic sheeting called geotextile to protect the drainpipe from a blockage. French drains can last decades before needing maintenance. If your home requires a sump pump, a high-quality model will last around ten years before needing replacement.

How do I know if my foundation is drained?

1. Sign #1: Gushing Gutters. …
2. Sign #2: Downspouts That Dump. …
3. Sign #3: Water Stains in the Basement. …
4. Sign #4: Cracks in the Foundation. …
5. Sign #5: Flaking and Deposits on Walls. …
6. Sign #6: Mildew in the Attic. …
7. Sign #7: Migrating Mulch.

How far from house should water be drained?

Today’s building codes generally recommend that water should be diverted 10 ft. away from the house foundation. The further away the water flows, the safer the home. This can be accomplished with downspout extensions, splash blocks or downspout drains.

What is better than a French drain?

If you have a negative sloped yard (which slopes toward your foundation), a surface drainage system is a better choice than a French drain. Sloping of more than 1”-1-1/2” on a 10′ run can result in excessive amounts of water seeping beneath your house.

Where do French drains end?

Which End is Up? The two ends of a French drain system are: The drain field, or high end, where excess ground water enters the drain pipes. The drain exit, or lowest point, where water leaves the system.

Is a French drain a good idea?

French drain systems are incredibly effective because, unlike typical surface drains, they collect water over the entire length of the drain as opposed to one dedicated area. The force of gravity helps to guide water along a reliably smooth path to a desired discharge point.

How do you dry out under a house?

Using fans in your crawl space drain system will help dry out the area thoroughly and quickly, and will help prevent the growth of mold. Afterward, be sure and have a dehumidifier in place to keep the area dry. Sandbags are also a great way to help dry out a basement that is below ground level.
