Attach the extractor bit firmly to a T-handle or grip it with locking pliers. Place the extractor bit into the pilot hole in the damaged screw. Using a hammer, tap the extractor firmly into the pilot hole. Apply downward pressure on the extractor while turning it counterclockwise to remove the damaged screw.

What kind of drill bit do I need to drill out a bolt?

The Essential Tools Screw Extractor is the simplest and most effective solution to eliminate all your stubborn screws and bolts with minimal effort. All you need to do is use a drill bit that is smaller than the size of the screw head, drill a hole in it, and then reverse your drill to pull it out.

What is the best way to extract a broken bolt?

1. STEP 1: Hammer the center punch in the middle of your broken bolt. …
2. STEP 2: Slowly, use a left-handed drill bit to create a pilot hole. …
3. STEP 3: Switch to an extraction bit. …
4. STEP 4: Reverse-drill slowly to remove a broken bolt. …
5. STEP 5: Remove any metal shavings left behind by the broken bolt using a magnet.

Do you need a drill to use a screw extractor?

How to use a screw extractor will depend on the particular model you’ve chosen, but you’ll likely employ either a wrench or drill to turn the tool counterclockwise. As you turn the screw extractor, its threads will draw it in until it bites into the hole.

How do you use a bolt extractor drill bit?

Attach the extractor bit firmly to a T-handle or grip it with locking pliers. Place the extractor bit into the pilot hole in the damaged screw. Using a hammer, tap the extractor firmly into the pilot hole. Apply downward pressure on the extractor while turning it counterclockwise to remove the damaged screw.

How do you use a straight screw extractor?

1. After drilling a hole into the fastener, tap the screw extractor into the hole using a hammer.
2. Turn the extractor either clockwise or counter-clockwise (depending on the fastener threads), using the wrench of your choice. The flutes will bite in and provide a secure grip for removal.

Can you drill out a broken extractor?

Broken EZ Outs, various brand spiral extractors, taps and drill bits are virtually impossible to drill out. … An EZ Out and other tools like taps and drill bits we already mentioned have very hard metal compounds. This makes them very brittle and susceptible to breaking easily when too much force is applied.

How do you use Irwin straight screw extractor?

Guide for Using Screw Extractors Drill a hole in the threaded part or fastener to be removed. Drill deep enough for the extractor to grip without bottoming out. For best results, use a left-handed drill bit. Insert the extractor and turn with a wrench or drive tool.

What happens if a screw extractor doesn't work?

If a screw extractor doesn’t work, try twisting the screw with pliers to remove it. If you can’t get something out with the extractor, you may be able to drill the bolt out completely and re-thread the hole with a larger bolt.

Why did my drill bit break?

There are mostly two reasons why a drill breaks. Deflected breakage is caused by the radial force, the drill bit is broken at the end of flute. Twisted breakage is caused by the large torque, the drill bit is normally broken at the middle of the flute.

Article first time published on

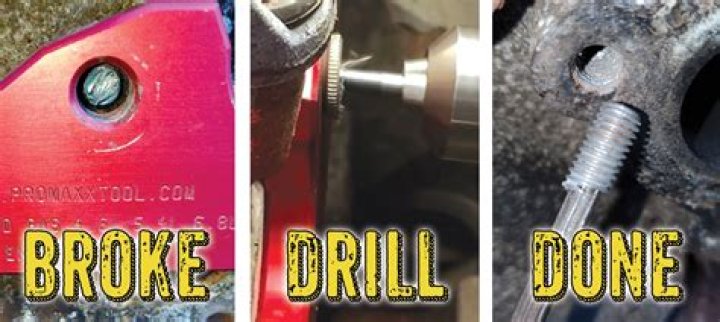

Can you drill out a bolt?

When you twist the head off a bolt, break a screw shank or mangle a screw head, you have a few options: In metal, you can completely drill out a bolt and restore the damaged threads with a tap. Likewise, you can drill out a wood screw and replace it with a larger one.

What is a left hand drill bit?

Left hand drill bits are ideally used for removing broken bolt and studs. KnKut left hand drill bits may loosen the broken stud while also preventing further tightening of the broken piece and possibly eliminating the need for a screw extractor.

Do stripped screw extractors work?

Rounded out and stripped screws can throw a real wrench in your productivity, but they don’t have to bring your work to a grinding halt. Keep a relatively inexpensive screw extractor on-hand. It will let you quickly remove those pesky worn and weathered fasteners with a minimal amount of frustration.

Will heating a bolt loosen it?

Use a Bernzomatic torch and a little elbow grease to loosen frozen, rusted or stubborn nuts and bolts. For stubborn bolts, heat the bolt, then move the flame away and apply WD-40 against the heated bolt threads. The melting wax pulls itself into the threads to create a slippery surface.
