Place a junior cone 03 (“sitter” or “small” cone) in the sitter as you load your kiln. … In the evening, set timer to maximum time, then turn on bottom switch ONLY to low. … The next morning, reset timer for 30 minutes – 1 hour longer than firing time and turn all switches to low for 3 to 4 hours.

How does a kiln sitter work?

Kiln sitters are mechanical devices that turn a kiln off after pottery has been fired. It uses a pyrometric cone to measure the temperature and time a kiln has taken to heat up. When the cone softens and bends, the kiln sitter turns off the power supply to the kiln.

What is the temperature for bisque firing?

The bisque firing normally reaches temperature between 900 degrees and 1100 degrees Celsius. A bisque firing is a very slow gradual firing, generally firing no more than 100 C per hour. If the climb or the ramp rate of firing is too fast in the early stages of bisque, the work may crack or explode.

How long does it take to fire a kiln to Cone 6?

Program the kiln to run a Cone 06, Medium Speed, ConeFire Program. This will take about 8 Hours to fire to temperature and another 12 hours to cool (depends on size of kiln).

What Cone is 2300 degrees?

Cone Temperature Conversion ChartConeTemp at 108F/hrWare and Glaze Types10*2345Stoneware Glaze, *Some Decals fire to Cone 109230082280

What is a cone sitter?

Kiln Sitters are the control boxes on electric (or manual) pottery kilns that utilize pyrometric cones to dictate a kiln’s firing. … Once the kiln reaches a specific temperature, the cone will start to bend, causing a lever to drop, switching the kiln off.

What is a cone sitter kiln?

The KILN-SITTER is a mechanical control that fires your kiln by the TIME and TEMPERATURE method of heat treatment using a small cone or bar. The cone or bar, after being exposed to the proper time and temperature, softens and bends to a predetermined angle, shutting off the kiln.

Why is my kiln Underfiring?

Small or wrong cones used. Fired to the wrong cone. Firing a Vary Fire program to too low a temp for the rate of climb. TC offset adjustment needs to be set lower.

How do you calibrate a kiln temperature?

There are two ways to calibrate your thermocouples. One way is to fire your kiln, inspect the cones afterwards, and then make a guess as to how to offset your TC’s. This can take anywhere from a few to several firings. I hear of many who do it this way, and honestly- I’ve never understood why.

Why is my kiln not reaching temperature?

One of the most common causes of kiln deterioration is moisture. … The most common is when all of a sudden, your kiln simply will not reach temperature and you must figure out why. At fault could be a coil (or two), a switch, the interbox plugs or outlets, the power cord, the fuse box, or any of the wiring in between.

Article first time published on

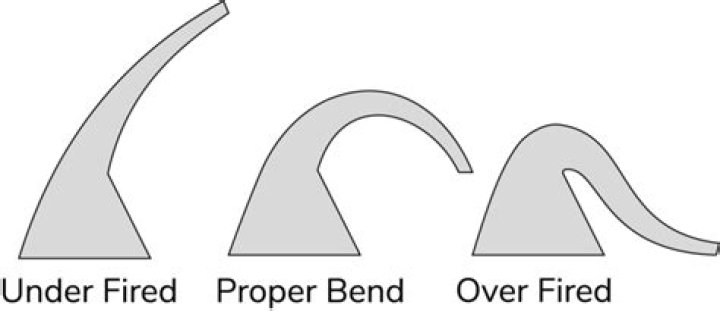

How should a cone look after firing?

These cones are set deep in the kiln, yet should be visible through a peephole. When the Guide Cone starts to bend, the ware is approaching maturity. The bending of the Firing Cone indicates firing is at the correct point. If the Guard Cone has bent, you have exceeded the best time-temperature relationship.

What cone do you fire glass?

For reference, Cone 04 is about 1900 degrees F and Cone 10 is about 2350. Because of the lower temperatures involved, all ceramic kilns are capable of firing glass.

How long should a bisque firing take?

A bisque firing takes on average around 10 hours. However, bisque firing can take more or less time depending on the size, age, type, and make of kiln. It also depends on the firing schedule and how tightly packed the kiln is. Using a preheat also lengthens a bisque fire.

Why do kilns take so long to fire?

If your kiln is loaded unevenly it can cause the 3-zone control to slow the kiln down to compensate. Try evening out the load. A common mistake is to put too much heavy work in the bottom of the kiln. Also try to space the bottom shelves so that there are two elements inbetween the shelves.

What temperature can I open my kiln?

A Pottery Kiln can be opened once it has cooled to around 125° F (51° C). Experts recommend keeping it closed until then to avoid injury and ensure the piece doesn’t crack from thermal shock. You can open all the peepholes to let the heat out, but only the top one is typically recommended.

Which is hotter cone 05 or 06?

Cone 6 is about 400 degrees hotter than cone 06! … Therefore cone 05 is cooler than cone 04 whereas cone 5 is hotter than cone 4. For the most reliable results, it is best to match your clay with your glazes. If your clay’s recommended firing temperature is cone 06-04, then you should use low-fire glazes.

What is the difference between cone 6 and cone 06?

Think of the 0 in a cone number as meaning “minus”. So 06 is much cooler than 6 because it is like a “minus 6”.

What temp does cone 6 fire to?

Many potters are now discovering a lower stoneware firing temperature at cone 6 (2232°F).

What Cone Do you bisque fire stoneware?

Generally, bisque firing is done between cone 08 and cone 04, no matter what the maturation temperature of the clay and of the glazes that will be used later. By cone 08, the ware is sintered and has become a ceramic material. At the same time, the clay body still is quite porous and absorbent enough for easy glazing.

What Cone is 1280 degrees?

Cone No.FahrenheitCentigrade622321222722641240823051263923361280

What Cone do you fire porcelain?

The acceptable cone range to ensure porcelain clays mature is between Cone 10 and Cone 13.

Can I Refire a glazed piece?

Since these firings need a lack of oxygen in order for the glazes to develop, you can’t refire them in an oxidation firing (electric kiln) or all the reduction you did will be reversed. … Reduction and Raku glazes may or may not look good re-fired in oxidation, but they will probably look different.

What does fire to cone 6 mean?

This refers to the medium temperature range (or middle fire) that most potter’s work in. Orton cone 6, about 2200F or 1200C. The term “cone 6” normally implies oxidation firing in a hobby kiln (most fire to this range).

What temperature do you fire clay?

Clay becomes pottery at temperatures at about 1,000 degrees F (the beginning of glowing red heat – about 540 C). Traditionally, tribal earthenware is fired to about 1,400 degrees F (760 C). Heat removes the molecular water in the clay.

What is a cone in ceramics?

Cones are pieces of ceramic that help you gauge whether a kiln has reached sufficient temperature and whether the pottery will have been fired the correct amount. Cones measure ‘heat-work’, which is a combination of the temperature reached, and the time it took to become that hot.

How many relays are in a kiln?

Most kilns will have at least two relays. Relays have a limited life that is determined by the number of times they cycle on and off. Excessive heat can shorten the life of relays so make sure your kiln room is well ventilated.

How long do kiln elements last?

The average number of firings a set of elements can survive is 100-200. So, when firing mainly at lower temperatures, you are likely to get 200 firings or more. As a result, if you are firing your kiln twice a week, you can expect the kiln elements to last around 2 years.

How do I know if my kiln relay is bad?

If a section of your kiln reads 0 amps, most likely you have a bad relay. If the amperage reads significantly low, it is likely you have 1 element in the kiln that is broken. If the amperage reads slightly low it is likely your elements are wearing out or you have a voltage problem.

Where does the thermocouple go in a kiln?

Placement ofthe thermocouple is important. When installed through the wall ofthe kiln it should extend about 2″ into the kiln from the inside wall. In large kilns 3 to 4 inches is better. On thin wall kilns it may be necessary to shorten the thermocouple so that it does not extend too far outside the kiln.

When should I replace my kiln thermocouple?

They can recommend the type of cone you will need when you purchase your clay and glazes. Place the pyrometric cone on a shelf about 2 inches from your thermocouple, brick and any ware you have on that shelf. When the cone bends over and touches the shelf, you should change your thermocouple.

What do thermocouples do?

A thermocouple is a sensor that measures temperature. It consists of two different types of metals, joined together at one end. When the junction of the two metals is heated or cooled, a voltage is created that can be correlated back to the temperature.
