Also known as Gas Metal Arc Welding (GMAW), uses a shielding gas to protect the base metals from contamination.

Does arc welder use gas?

Also known as Gas Metal Arc Welding (GMAW), uses a shielding gas to protect the base metals from contamination.

What are the three methods of gas metal arc welding?

The three transfer modes in GMAW are globular, short-circuiting, and spray. There are a few recognized variations of these three transfer modes including modified short-circuiting and pulsed-spray.

Which gas is used in gas metal arc welding?

Gas metal arc welding (GMAW) is an arc welding process in which the source of heat is an arc formed between consumable metal electrode and the work piece with an externally supplied gaseous shield of gas either inert such as argon and /or helium [5].

What kind of gas does a wire feed welder use?

The most common of the reactive gases used in MIG welding is Carbon Dioxide (CO2). It is the only one that can be used in its pure form without the addition of an inert gas. CO2 is also the least expensive of the common shielding gases, making it an attractive choice when material costs are the main priority.

How arc welding is different from gas welding?

The primary difference between Arc Welding and Gas Welding is that Arc Welding uses electricity while Gas Welding uses flammable gases for generating heat. Also, Arc Welding generates higher temperatures as against Gas Welding. Arc Welding uses electricity for generating heat to weld metals together.

What welder does not need gas?

Similar to MIG, flux-cored arc welding (FCAW)* is a wire-feed process but differs in that self-shielded FCAW does not require shielding gas. Instead, flux-cored wire shields the arc from contamination. This is a simple and efficient approach, especially when welding outdoors, in windy conditions or on dirty materials.

What is the best gas mix for MIG welding?

A 75/25 argon and CO2 blend is typically considered to be the best overall option for MIG welding, so that’s our top recommendation at Vern Lewis Welding Supply. A “tri-mix” of helium, argon, and CO2 is also sometimes used.

What does the 70 in 7018 mean?

For example, the number 70 in a E7018 electrode indicates that the electrode will produce a weld bead with a minimum tensile strength of 70,000 psi. The third digit represents the welding position(s) for which the electrode can be used.

Is Tig A arc welder?

Tungsten Inert Gas (TIG) welding, also known as Gas Tungsten Arc Welding (GTAW) is an arc welding process that produces the weld with a non-consumable tungsten electrode. Tungsten inert gas (TIG) welding became an overnight success in the 1940s for joining magnesium and aluminium.

Article first time published on

What does MIG stand for in welding?

Metal Inert Gas (MIG) and Metal Active Gas (MAG) welding are gas metal arc welding (GMAW) processes that use heat created from a DC electric arc between a consumable metal electrode and a workpiece which melt together to create a weld pool that fuses to form a join.

Where is the specific application of gas metal arc welding?

Applications of GMAW The automotive industry uses GMAW for both production and maintenance. Robotic assembly lines use GMAW for time-efficient manufacturing processes. Pipefitters use GMAW during the welding of pipe joints. The rail industry uses GMAW for fast, durable repairs or construction of railroad track.

Can you weld steel with 100% argon?

In summary, it is possible to stick steel together using a MIG welder with 100% Argon shielding gas. But, you end up with a shoddy-looking, weak, brittle weld. If you need a strong, quality weld, 100% Argon is NOT a good choice for MIG welding steel.

Can you weld mild steel with argon?

Can you MIG weld mild steel with straight argon? Yes, you can use 100% Argon to MIG weld steel but this welding gas comes with many pros and cons. It is best to use a combination of the MIG welding gases in order to get the best results for your specific project. Argon is one of the four gases used in MIG welding.

How much is a tank of gas for MIG welding?

The Cost of Welding Cylinder and Gas For a new R cylinder (20 cubic feet), you can expect to pay roughly $112, with the cost of gas adding up to $18. Exchanging these cylinders costs $16. A new Q cylinder (90 cubic feet) will cost around $ 212 and the gas cost is $33.

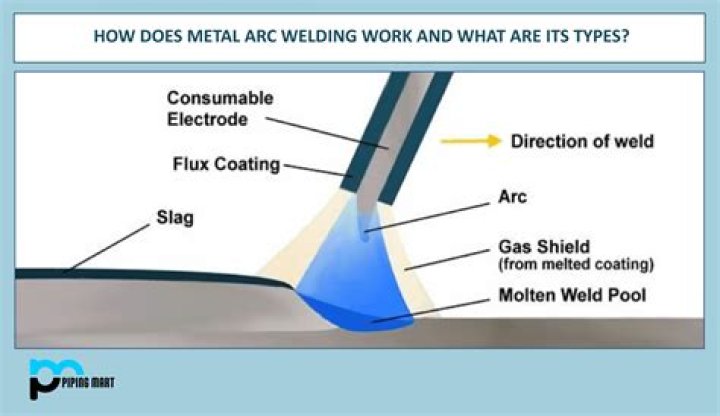

Is arc welding the same as stick welding?

Arc welding is also known as shielded metal arc welding (SMAW), manual metal arc welding (MMAW), or stick welding. … In contrast, in arc or stick welding, the electrode is consumable. Unlike in TIG welding, the electrode acts as the filler metal rod and melts to form part of the weld joint itself.

Which is better MIG or arc welding?

For example, if you are going to work outside, the stick welding would be the better option as it allows you to create a powerful enough arc that would not be affected by the wind condition. However, if you are working on delicate metal that is less than 1/8th of an inch, then MIG welding is the better option.

Which is stronger gas welding or arc welding?

The resultant arc temperature is around 6000C whereas gas welding produces only around 3600C. Due to this, your metals will melt quickly as well as have a strong bond and better penetration. Arc welding creates a stronger joint as compared to gas welding.

Is gas welding harder than arc welding?

Electrical arc welders generate higher temperatures at the weld site resulting in deeper penetration, a better fusing of the metals, and less distortion in the materials being welded. Gas welding requires a higher level of skill than arc welding in most cases.

At what temperature do most arc welders work?

While different metals require different temperatures, arc welding is usually performed with an arc temperature of roughly 10,000 degrees Fahrenheit. Of course, this still cooler than plasma torch welding, which can reach up to 50,000 degrees Fahrenheit, but electric arcs are incredibly hot nonetheless.

How do you close down a gas welder?

1. Extinguish the flame by first closing the acetylene valve on torch, then closing the oxygen valve.
2. Close both oxygen and acetylene cylinder valves.
3. Open torch valves one at a time to release pressure in the regulators and hoses.
4. Re-set regulators to zero outlet pressure by unscrewing adjusting screw.

What does 6010 mean on a welding rod?

The “60” in 6010 means 60,000 pounds’ tensile strength (the ability to resist being pulled apart) per square inch. The “1” means it can be run in any position—flat, horizontal, vertical, or overhead.

Do you weld 7018 AC or DC?

The 7018 welding rods are used for pipe welding and structural steel welding and repair welding. This low-hydrogen, usually DC, all-position electrode can also be used with AC, which not many welders may know. The 7018 provides a good bead appearance and smooth, strong welds. It also works on higher strength steels.

What shade of lens should be worn when arc welding?

For example, shielded metal arc welding requires at least a Shade 7 and up to a Shade 14 depending on the electrode size and arc current. For gas welding and oxygen cutting operations, a Shade 3 up to a Shade 8 is required depending on plate thickness.

Can I use straight CO2 for MIG welding?

Yes, the low cost of operation is the leading reason for MIG welding with straight CO2, also called C100. … Also known as C25, it’s considered the best all-around gas blend for MIG welding on mild steels.

What kind of tank do I need for MIG welding?

But the three main sizes a homeowner, or hobby welder will most likely use is the 40, 80, or 125 cubic feet (“cf”) tanks of Argon or MIG gas mixture (75% Argon, 25% CO2). The largest of the three sizes provide plenty of use time without sacrificing too much portability.

Can I use the same gas for MIG and TIG welding?

An Argon and Helium mixture can be used in MIG as well as TIG welding.

What type of welding is the hardest?

TIG welding is the hardest form of welding to learn for a variety of reasons. The process of TIG welding is slow and takes time to get used to as a beginner.

What type of welding is the easiest?

MIG Welding (Beginner) MIG welders are among the best type for beginners, as they’re designed with a wire welding electrode on a spool that is fed at a pre-selected speed through a welding gun. As a semi-automatic or automatic process, gas metal arc welding (GMAW or MIG), is the easiest to learn.

What type of welding is strongest?

Bottom Line. TIG welding produces cleaner and more precise welds than MIG welding or other Arc welding methods, making it the strongest. That said, different welding jobs may require different methods, while TIG is generally stronger and higher in quality, you should use MIG or another method if the job calls for it.
