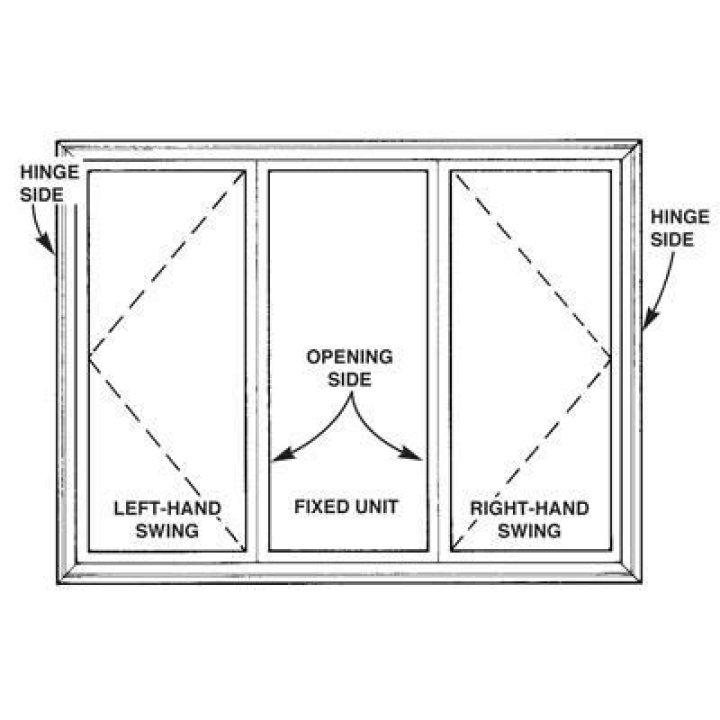

Casement windows are hinged on the side and are Left, Right or Stationary. The easiest way to determine the handing of your casement window is from the interior. All casement locks, operators, and hinges are handed based on the location of the lock when viewed from the interior.

What does handing mean on a window?

Handing refers to the direction a window or door opens. When determining window handing, always envision the window from the exterior of your home. Casement windows are labeled in one of two ways. FCL refers to a left-handed window, where the hinges are located on the left and the locking mechanism is on the right.

Which way does a right hand casement window open?

From the inside of your home a casement window with the crank on the right and the lock on the left will open from the left to the right while a casement window with the crank on the left and lock on the right will open from right to left.

How can you tell the hand on a casement window?

The direction a casement window opens is called the handing. Casement windows are labeled either FCL (From the Curb Left) or FCR (From the Curb Right). If you’re looking at a window while standing outside, an FCL window will have the hinges on the left and an FCR will have the hinges on the right.

What is a left hand opening window?

For example, if a hinge is located on the left-hand side of the window unit as viewed from inside of the home, the hinge is left-handed. Lock mechanisms are handed from the INTERIOR of the home. For example, if a lock in on the right-hand side of the window as viewed from INTERIOR of the home the lock is right-handed.

What does a casement window look like?

Casement windows are hinged at the side and open outward like a door. It looks like a picture window because unlike double hung or sliding windows, a casement window has no rail. Some casement windows are simply pushed open, but most have a hand crank.

Can casement windows open inward?

In-swing casement windows open inwards, as the name implies. This feature makes them quite easy to clean. They are also energy-efficient, safe and secure.

What is a right hand sliding window?

Terminology. “Handedness” of a sliding door is expressed as seen by an observer outside the building. A left-handed door opens on the left side, and a right-handed door opens on the right. These relationships are sometimes described with the letters O and X, where O is the fixed panel and X is the sliding panel.

Do casement windows swing in or out?

Casement windows are hinged at the sides and swing outward. They provide a clear view to the outdoors plus open and close easily with the turn of a handle.

How far out does a casement window open?

Casement windows open out sideways up to 90 degrees.

Article first time published on

What is a Push Out casement?

Push-out windows are casement windows that are pushed out by hand instead of operated with a crank. They consist of a sash (which is a pane of glass in a window frame) that is attached to your home with a hinge.

What are crank out windows called?

Casement windows are hinged on the side and crank open outward to the left or right allowing for full top to bottom ventilation.

What is a tilt turn window?

A tilt and turn window can both tilt inwards at the top, like a hopper window, or open inwards from hinges at the side. The tilt position provides draft-free ventilation and rain protection. In the turn position, Tilt & Turn windows act as casement windows, swinging their full glass area open.

How can I flash windows without nail flange?

1. Measure the dimensions of the window with a tape measure and frame the rough opening to be 1/2 inch wider and 1/2 inch longer. …
2. Seal the sill with tarpaper or with a vinyl sill sealer. …
3. Close the window you are going to install.

What is window flashing?

Window flashing is a thin continuous piece of material that is installed to prevent water from getting into a structure from an angle or joint near windows. … It is typically used on roofs, around windows and doors, and around any opening for pipes or electrical lines. Window flashing can be exposed or concealed.

How do you waterproof a casement window?

1. Remove all old caulk around the casement window; scrape it out with a putty knife.
2. Place a tube of silicone caulk into a caulk gun, and push the plunger up until it rests on the end of the tube.

Can you put 2 casement windows together?

2) How can the homeowner choose the direction in which the casement window can open? … Casement window pairs: While placing two casement windows together, make sure they open like doors rather than a book. This implies that one window must be left hinged while the other must be right hinged.

What is a French casement window?

Similar to a hinged French door, a French casement window has two sashes that extend outward from the center of the window to create a wide opening. With no central post in the window frame, French casement window panels crank open simultaneously for twice the ventilation and an unobstructed view.

What are the disadvantages of casement windows?

• Mechanical Parts That Break.
• Window Air Conditioner Units Difficult to Install.
• Casement Frames Are More Exposed to the Elements.
• Open Casement Sashes Can Break.
• Sun Reflection From Open Sashes.
• Side-By-Side Casements May Conflict.

How do crank windows work?

Most casement windows are opened and closed by means of a crank mechanism that is mounted against the frame on the inside. Turning the handle on this causes a control arm to move, pushing the window open or pulling it closed, depending on which direction the handle is turned.

Can you open a casement window from the outside?

Casement windows are impossible to open from the outside unless the glass is broken, hence they have a higher safety level overall. Some types of double-hung windows can be opened with the help of a crowbar or any other piece of flat equipment that can fit under the latch.

How can you tell which way a window swings?

To determine the swing on a casement window, picture yourself outside the building looking at the window. If the hinges are on the right, it’s a right-hand window; on the left—it’s a left-hand window.

Is my sliding patio door right or left-handed?

All gliding patio doors are handed based on the location of the operating or sliding patio door panel when viewing from the outside of your home. If the operating patio door panel is on the left side, your patio door is a left-handed unit.

What does XO mean on a window?

Horizontal Slider ( XO ) typically called an XO or OX meaning the X is the sliding or vent portion and the O being the fixed.

What are French windows?

French windows feature two panels of glass that are side hung and open either inward or outward, creating an uninterrupted view.
