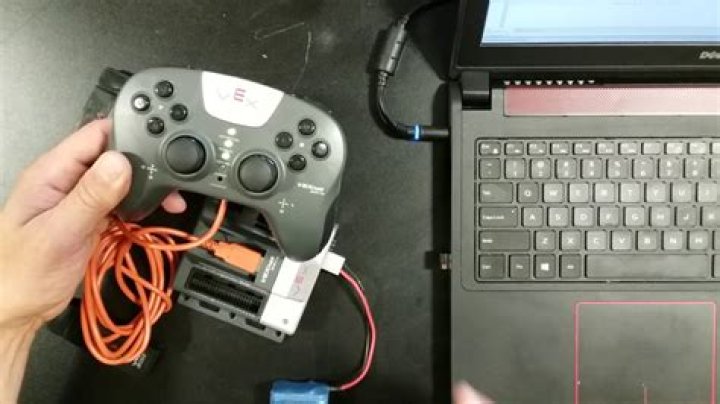

Tether the USB port on the VEXnet Joystick to the USB port on the Cortex using a USB A-to-A cable. 3. Power the Cortex ON. After a few seconds, ROBOT and VEXnet LEDs will blink green, indicating that the Cortex and VEXnet Joystick have successfully paired.

How do you set up a VEX joystick?

Tether the USB port on the VEXnet Joystick to the USB port on the Cortex using a USB A-to-A cable. 3. Power the Cortex ON. After a few seconds, ROBOT and VEXnet LEDs will blink green, indicating that the Cortex and VEXnet Joystick have successfully paired.

How do I connect my vex V5 controller?

Connect a Smart Cable to one of the Smart Ports on the rear of the V5 Controller and to any Smart Port on the V5 Robot Brain. Power on the brain. The controller should automatically turn on when the brain is powered on and they are connected via a Smart Cable. Wait for the devices to indicate they are connected.

How does the VEX controller work?

The VEXnet Joystick allows a human operator to control a robot in real-time using the VEXnet wireless link. The joystick has two 2-axis analog joysticks, 4 trigger buttons and two 4-button directional pads.

How do you fix a frozen VEX controller?

1. You will need a long, thin tool. A hex key, a VEX shaft, or even a paper clip can work.
2. The reset button is a white button that is located at the bottom of the hole closest to the center of the controller. …
3. Use the tool from the first step to press and hold the reset button for 5 seconds.

How do you run the driver control program on the robot brain?

After powering on the Brain, highlight and press the Check button to select Driver Control. Highlight and press the Check button to Run the program. Use the Controller to move the robot.

How do you charge a VEX V5 controller?

The Controller’s integrated 3.7v Li-ion battery can provide up to 10 hours of life on a single charge. With its USB port, the Controller can be charged in multiple ways such as a wall socket, laptop or USB power bank.

How do you update a VEX Cortex controller?

cable connect the microcontroller to the computer. The LEDs should start flashing. Click SEARCH Computer Control Panel Devices and Printers Default Programs Help and Support Waiting for Device … Moster 3755 Connect a VEXnet Device Click SEARCH Upgrade required Click DOWNLOAD now.

How do you enter a vex code?

1. Step 1: Open VEX Coding Studio and open (or create) your program. …
2. Step 2: Connect the V5 Robot Brain to your computer using the provided USB A to Micro Cable. …
3. Step 3: Download the program to the V5 Robot Brain. …
4. Step 4: Run your program on your V5 Robot Brain.

How do I use a VEXnet key?

Tether the USB port on the VEXnet Remote Control to the USB port on the Cortex using a USB A-to-A cable. 3. Power the Cortex ON. After a few seconds, ROBOT and VEXnet LEDs will blink green, indicating that the Cortex and VEXnet Remote Control have successfully paired.

Article first time published on

What type of connector is used on the V5 brain for motors?

The V5 brain has 3 different types of ports – 20 motor ports (labeled ports 1-21), a single radio port (port 21), and 8 3-pin analog sensor ports (labeled ports A-H). These analog ports support 3-pin cortex-era sensors and (although not competition legal) 393 3-pin motors.

How do I connect my vex V5 brain to my computer wirelessly?

Select the ‘Brain’ icon in the Toolbar. A list of available V5 Robot Brains will appear. Select the name of the Brain you want to connect to. Once a Brain is chosen, select ‘Connect.

How do I reset VEX EDR cortex?

1. Turn the Cortex off.
2. Disconnect the orange USB cable from the computer.
3. Disconnect the orange USB cable from the Cortex.
4. Disconnect the battery from the Cortex.
5. Disconnect all motors, sensors, and LEDs from the Cortex.
6. Leave the Cortex for 10 seconds before reconnecting everything.

How do I update my V5 controller?

1. Connect a V5 Smart Cable to your V5 Controller. …
2. Connect your V5 Controller to your V5 Robot Brain. …
3. Power on your V5 Brain, if it is not already powered on. …
4. Confirm the firmware update.

How long does it take for a VEX IQ Controller to charge?

Plug it into any USB wall adapter or PC. Additionally, when the Controller is tethered to the robot, it automatically charges the Controller. A complete recharge only takes 2.5 hours.

How many trigger buttons are on the V5 Controller joystick?

The V5 Controller packages two analog joysticks and 12 buttons into a familiar video-game style design. With its Monochrome LCD screen, the V5 Controller provides users with instant feedback from the Robot Brain. It is used to control the robot and communicate wirelessly to the brain using either VEXnet or Bluetooth.

How long does it take to charge a V5 battery?

Allow the V5 Robot Battery to charge uninterrupted Keep the V5 Robot Battery connected to the V5 Robot Brain while charging if necessary, and it will fully charge in approximately 90 minutes.

How many ports does a VEX brain have?

Overview. The VEX IQ Robot Brain has 12 identical Smart Ports. Plug any VEX IQ device into any port and the device is automatically detected – there are no dedicated input or output banks. Smart Port devices include: Smart Motor, Distance Sensor, Color Sensor, Gyro Sensor, Touch LED, and Bumper Switch.

How do I connect my vex V5 to my computer?

1. Step 1: Connect the V5 Battery to the V5 Brain. Connect the V5 Brain to the V5 Battery using the battery cable. …
2. Step 2: Connect the Micro-USB cable to the V5 Brain. …
3. Step 3: Connect the Micro-USB Cable to a Device. …
4. Step 4: Confirm a successful connection.

How do I start a project Toolbar?

From the Toolbar To start a project, select the “Start” button. The Playground window will open automatically if it is not already open. Once the “Start” button is pressed, the project will run and the VR Robot will perform the programmed actions in the Playground.

Is vex hard to learn?

It’s not for beginners but it’s a great follow-on after you’ve gone through the learning paths outlined above. Each vex wrangle in the tutorial is concise and single-purpose as opposed to some vex tutorials that get very verbose and complex.

What programming language does vex V5 use?

VEXcode Pro is a text-based programming language based on the standard C++ programming language. Using VEXcode Pro V5 to code your V5 robot is an engaging way of understanding some fundamental programming concepts.

What is Vex V5?

VEX V5 represents our fifth generation of education robotics systems developed with 20 years of experience using robotics to teach STEM principles. V5 electronics are approachable, flexible and powerful, using state of the art technology to ensure relevant education outcomes.

What is VEX IQ?

VEX IQ is a snap-together robotics system, making it fast and easy to build an endless variety of robots. Watch code come alive on a physical robot and apply key STEM skills.

What is VEXos utility?

VEXos is a robotics operating system that harnesses the flexibility and power of VEX hardware for the rigors of competition and the diverse needs of education.

How do I reset my vex V5 brain?

1. Make sure that the V5 Robot Brain is on. Have your V5 Robot Battery charged and connected to the V5 Robot Brain so that you can power it on.
2. Tap the Settings icon. …
3. Tap Reset settings. …
4. Tap OK on the Confirm screen.

How do I update my vex brain firmware?

1. Step 1: Gather the required components. …
2. Step 2: Connect the USB cable to the V5 Robot Brain. …
3. Step 3: Connect the USB cable to a computer. …
4. Step 4: Open VEX Coding Studio and then open the Select Brain menu. …
5. Step 5: Click to Update Now and wait for a success message.
