You could always install the part yourself to save money, but a mistake could make things much worse. A new oil pump will cost you anywhere from $100 to $300, depending on the make and model of your car.

Can you replace an oil pump yourself?

You could always install the part yourself to save money, but a mistake could make things much worse. A new oil pump will cost you anywhere from $100 to $300, depending on the make and model of your car.

How much oil does a 5.8 liter Ford engine take?

6 quarts. . . . (with filter)When refilling, remove dipstick to provide adequate venting and allow oil to flow into crankcase.

Will a 302 oil pan fit a 351W?

No the 302 will not fit a 351W.

Where is an oil pump located?

Oil Pump Location Your vehicle’s oil pump is typically located inside your vehicle’s oil pan. It generally sits towards the top of the pan and uses a pickup tube to take oil from the pan and push it through the engine. In some engines, it is also located around the crankshaft at the front of it.

How you change the oil pump?

Remove the oil pan gasket using a gasket scraper tool. Clean the engine block mounting surface with a rag and scraper tool. Using the proper tools, locate and remove engine oil pump. Install new engine oil pump and torque to the manufacturer’s specifications.

Does a high volume oil pump increase oil pressure?

According to Osterhaus, “the increased internal clearances found in a high-mileage engine create a higher demand for oil. A high-volume pump will provide assistance in increasing the oil flow to fill the larger internal clearances. This results in increasing the oil pressure.

Can I drive with a bad oil pump?

A faulty oil pump could also be the culprit. … You will need to top up your oil, and again, you can safely drive home. Make sure to get the oil seals or gaskets replaced, though, because if they give out all at once you could end up with a seized motor and very expensive repairs.

What are the signs of a bad oil pump?

• Low Oil Pressure.
• Increased Engine Temperature.
• Hydraulic Lifter Noise.
• Noise from the Valve-Train System.
• Noise at the Oil Pump.
• Stop Driving.
• Check the Oil Pressure Measurement Unit on the Engine.
• Check the Engine Oil Port Pressure Using A Gauge.

What happens if you don't prime your oil pump?

It’s also a good idea to prime the oil pump before it is installed. … Unprimed, an oil pump could run for several seconds before picking up oil. Or worse, it might not pick up oil at all.

Article first time published on

Are 302 and 351 oil pumps the same?

Does that mean I cannot use a 351w shaft or are both the 302 and 351w oil pump the same? … The length on the oil pumps and oil pump driveshafts are different between the 302 and 351 so they must be matched for proper fitment.

How much horsepower does a 5.8 engine have?

Chamber head compositionCast IronInternal combustion engine (type)Naturally articulatedCompression ratio11.0:1 -1969 8.8-1 – 1971 onwardsPower300HP at 5400 rpm – 1969 161HP – 1972Torque380 lb.-ft @3400rpm 325 lb.-ft @ 2800 rpm

Is the 351 Windsor a good engine?

Ford’s 351W engines are virtually bulletproof. The blocks, even on the 1975+ models, are very stout and will not give any problems until serious power is added. The rods, pistons, and other internal components are rock solid as well. Overall, the 351 Windsor is a tough engine and is built to take a beating.

What type of oil does a 351 Windsor take?

He recommended using 15w40 for when I had the engine on the dyno machine and change it after the dyno/tuning session. He said to then run it for a couple hundred miles on the new 15w40 synthetic oil and then go down to 10w30 synthetic and change the oil as needed.

Which oil pump is driven directly by the crankshaft?

Fixed positive displacement pumps Most oil pumps are driven directly off the nose of the crankshaft or indirectly from the camshaft or crankshaft, using the distributor/blind shaft drive, a cogged belt, a chain drive, or a series of gears, just to name a few of the most common designs used over the years.

What runs the oil pump?

Oil pumps are usually either inside the oil pan and driven by a camshaft or outside the pan and driven by a crankshaft. When those engine parts start moving, the pump starts working at the same time to pump oil to reduce friction and wear between moving parts and prevent the engine from seizing.

How many types of oil pumps are there?

There are two primary types of oil pump used in automotive wet-sump systems: The gear pump and the gear-rotor pump. Most American engines designed prior to the 1990s use gear-type pumps, with two spur-type gears mounted inside an enclosed housing.

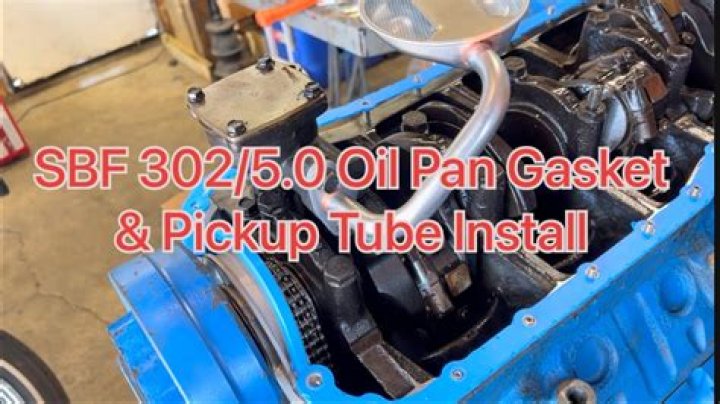

What is a oil pickup tube?

An oil pick-up tube for carrying oil from an oil reservoir to an oil pump, comprises an oil pick-up end disposed in the oil reservoir, a pump end disposed in the oil pump, and a transporting tube portion to deliver oil from the oil pick-up end to the pump end.

Where is the oil pump and strainer located?

Wet and dry sump systems It is generally located inside the lower part of the engine, usually below and/or to one side of the crankshaft.

What is the normal oil pressure in lubrication system?

The ideal oil pressure varies depending on the car brand and model, but generally, the ideal oil pressure is between 25-65 PSI.

Should you run a high volume oil pump?

A High-Volume Pump will push more oil through the system. It has larger gears to move more oil per revolution. These pumps are good for performance engines with larger bearing clearances. … A high-volume pump may also be required to lubricate add-on engine parts.

Can you use a high volume oil pump with stock pan?

Most of the stock automobile engines are designed to operate from idle to 4500 RPM. The original volume and pressure oil pump will work fine in this type of application. As the demands on the engine increase so does the demands on the oiling system and pump.

How do I increase oil pressure?

1. Prepare the car. Open the hood and apply the parking brake. …
2. Drain the oil. …
3. Loosen the oil pan. …
4. Replace the oil pump. …
5. Replace the oil pan. …
6. Add the oil.

Should I replace my oil pump?

Conclusion. You can change oil pump if it starts showing wearing signs. It should last somewhere between 60,000 and 70,000 miles in a properly maintained and regularly serviced vehicle.

What causes oil pump failure?

Low Oil. … If the oil level is too low, the oil pump will have to deal with extra friction due to lack of lubrication. This will cause mechanical problems and warping of various parts in the pump, which will eventually cause the pump to fail.

What noise does a bad oil pump make?

In rare cases, a bad oil pump will make noise, normally a loud whining or whirring sound that can be heard when a vehicle is idling. As an oil pump’s internal gear mechanism deteriorates and wears, the oil pump will make noise as it begins to fail.

Can a bad oil pump cause knocking?

Engine knock can be caused by several different issues. Even with the oil full, if it is not being sent to the places in the engine that need it. Low oil pressure can be caused by a clogged line, a bad pump, or a clogged filter. The low oil pressure would rob the engine of the oil it needs and produce a knocking sound.

What does it mean when oil pressure fluctuates?

Q: why does oil pressure gauge go up and down with rpm of engine? oil pressure gauge started fluctuating the other day.. … This is normal operation for your oil pressure. The faster the motor spins, (RPM, revolutions per minute) the faster the oil pump spins creating higher oil pressure.

How long can a bad oil pump last?

Keep in mind that it’s either time or the number of miles, whichever comes first. If you use 12,000 miles per year as a guide, a typical oil pump should last between 5 and 5.84 years. However, yours may last shorter than that if you drive more than 12,000 miles a year.

How far can you drive with low oil pressure?

Generally speaking, you have about 2 weeks or 500 miles of driving before a flashing oil light turns into a legitimate problem. But once it hits that point, things can go downhill fast, leading to serious mechanical damage. So, try to get your vehicle into a mechanic sooner rather than later.

Can low oil pressure cause rough idle?

All the oil pump does is pump oil. The only condition that would cause a rough idle is not enough oil. Most vehicles built in the last 50 years use hydraulic lifters which (guess what) depend on oil to work correctly. With insufficient oil they start to fail which causes a weak or lumpy idle.
