Turn off the water to the supply line. … Remove the old float ball and connecting float rod. … Thread and screw the new float ball onto one end of a new connecting float rod. … Turn the water on and allow the tank to fill. … Turn off the water to the supply line.

Where does the fill tube go in the toilet tank?

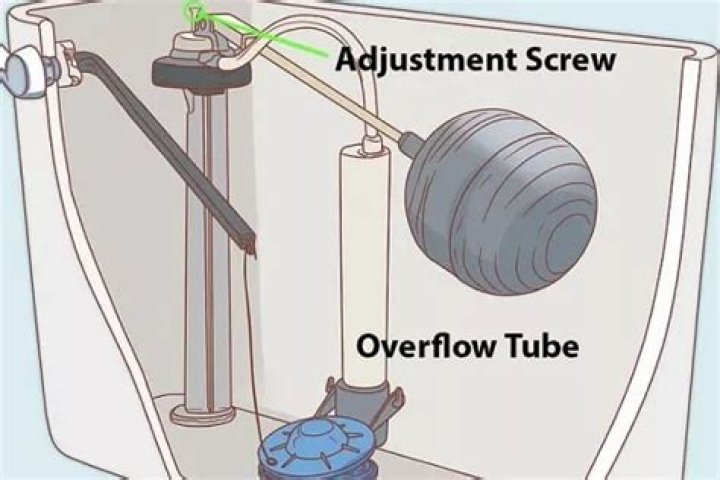

The Overflow Tube empties directly into the toilet bowl. This water raises the water level in (refills) the bowl. If it weren’t for the Refill Tube there would be only a small amount of water in the bottom of the bowl. The Refill Tube must be located above the Overflow Tube.

What is the difference between fluidmaster 400A and 400h?

The Fluidmaster 400a and 400h are very similar pumps. The main difference is that the 400h is designed for larger toilet bowls than the 400a.

Are flush valves universal?

No. Toilet flush valves come in a variety of sizes, and there are also several types, including standard, tower- or canister-style, and dual flush valve.

Does fluidmaster work on Toto?

Toto does not use the Fluidmaster 400A as original equipment, although Fluidmaster now makes a version of the 400A that has an adjustable refill rate so that it can be installed in Toto toilets as a replacement (but only that version.)

How do you fix a leaky valve seal?

1. Turn off the Water Supply. …
2. Remove the Old Flapper or Tank Ball Assembly. …
3. Remove Remaining Tank Water. …
4. Clean the Valve Seat. …
5. Install the Sealant Ring. …
6. Position the Flapper Assembly. …
7. Attach the Lift Chain. …
8. Turn on the Water and Fill the Tank.

Can you replace a float valve with a fill valve?

Most older toilets have older-style fish and ballcock for toilets. But they are prone to fault, like running and constant water. Replacing them with a newer-style fill valve will save water and frustration now and later on. … It’s a little more efficient and it’s pretty straightforward, so see how to replace your valve!

How do bottom entry fill valves work?

The fill valve fills the toilet tank with water from the water supply line after it has been emptied by a flush. It replaces the ballcock and is more efficient and easy to install. This is an anti-siphon design-fill valve with adjustable height from 9″ to 14″. The most popular valve in the world.

Why does my fill valve keeps running?

Adjust the Fill Height by Checking the Float The water level in the tank is controlled by an adjustable float. A float that’s set too low produces a weak flush; if it’s set too high, water spills into the toilet overflow tube and the fill valve won’t shut off. The toilet keeps running.

Why is my toilet tank filling up so slowly?

Depending on your water pressure, a tank usually refills in about three minutes. If it’s slow to fill or it’s not filling at all, try the shut-off first. Make sure the water shut-off is completely open for maximum water flow. If it’s not completely open, that may account for your slow-fill issues.

Article first time published on

How long does a fluidmaster fill valve last?

A: Most of Fluidmaster’s fill valves, flappers and flush valves have 5-7 year warranty and typically last beyond these years when not exposed to the harmful effects of drop-in bleach tablets. Drop-in bleach tablets can degrade these toilet parts so they do not function properly (e.g., seal leaks) within a year or two.

Why do fill valves fail?

A misadjusted float is the most common cause for a fill valve that doesn’t shut off all the way. Before you try unscrewing the ball to lengthen the float arm, adjusting the rod length on a cup float or adjusting the valve tension with a screwdriver, hold the float up as far as it will go.

When should a fill valve be replaced?

The manufacturer recommends replacing either the entire valve or parts every five years to avoid flooding that could damage your home.

Is the fill tube supposed to go into the overflow tube?

The refill tube is an integral part of the system, as it tells the overflow tube how much water to input into the bowl. … Most importantly, the refill tube must always stay above the overflow tube, otherwise the water will flow backwards and keep the tube full.

What is tank refill tube?

The refill tube is a flexible plastic tube in the center of the toilet tank that trickles water into the toilet bowl when the toilet is refilling. Toilets must have a small amount of water standing at the bottom of the toilet bowl as a trap that seals the bathroom against sewer gases.
