Conclusion. To sum things up, the main reason for drilling pilot holes in deck boards is to prevent the wood from cracking or splitting. Pre-drilling holes is often the only way to successfully drive screws into the ends of deck boards without wrecking the wood.

Can you screw straight into decking?

Conclusion. To sum things up, the main reason for drilling pilot holes in deck boards is to prevent the wood from cracking or splitting. Pre-drilling holes is often the only way to successfully drive screws into the ends of deck boards without wrecking the wood.

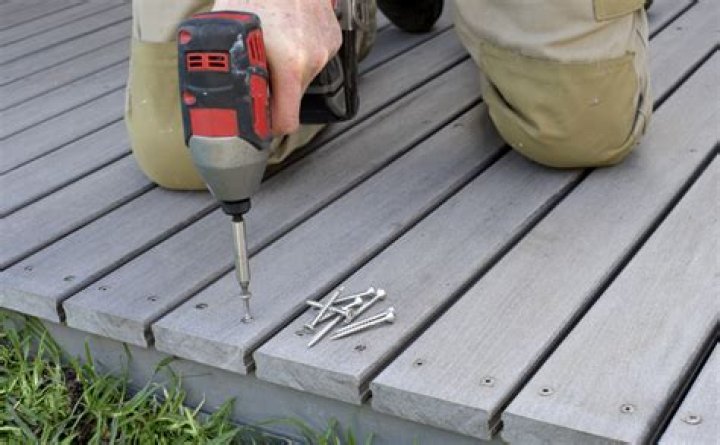

Where do screws go on a deck?

You want to place your deck screws 1 inch to the inside of the edge of the board. If the deck screws are installed too close to the edge you risk splintering the boards. Set your drill at the lowest level so that you can have complete control over how deep the deck screw will go.

Should decking screws be flush?

Conclusion: Deck Screws Should Be Counter Sunk Never Flush Installing deck screws slightly below the surface accommodate the shrinking of the decking as the boards dry. Doing this will create a clean surface for the decking for walking on while minimizing the visual effect of the screw heads.

Should decking be screwed or nailed?

The Consensus: For a deck build it’s best to use a combination of nails and screws. … Screws are superior for laying down the decking. They hold things flush better and have a better fastener/tensile strength, which keeps boards from popping up over time.

How long should deck screws be?

Most decking screws are 8-gauge and, while 2 1/2 inches is the minimum length needed to hold decking boards to the joists, 3-inch screws are commonly used to provide extra holding power against the upward pressure of shrinking or warping boards. Specialty decking materials have different requirements.

Why are my deck screws breaking?

The most likely cause of deck screws snapping is a combination of the boards and the screws. Simply, if the boards shift, it alters the pressure on the screws, and they may snap. … So, a good screw will hold and tight and hopefully survive a bit of warping, and a poor-quality screw will snap.

How many screws do I need for decking?

The general rule of thumb for standard deck fasteners is 350 screws for every 100 square feet of decking, which is based on standard 6″ wide boards (5-1/2″ actual), and 16″ joist spacing.

Should I Gap My deck boards?

Proper wood deck board spacing should have at least a 1/8 inch gap after the decking has dried out. If you install your wood or treated deck boards while they are still wet boards, then they should be attached without a gap between them.

How deep should a screw go?

The general rule of thumb is that the screw should enter at least half the thickness of the bottom material, e.g. 3/4″ into a 2 x 4. The other factor is the screw’s diameter, or gauge.

Article first time published on

Which side of a deck board goes down?

The main thing to know is how to place the deck boards properly. This then leads us to the most debated question about installing deck boards: crown up or down. The direction affects how the boards shape over time – cupping or crowning. Deck boards should crown up – bark side down.

What screws to use on a deck?

You need a different type of screw for each part of your deck. An 8 gauge, 2.5” coated deck screw is most commonly used when fastening deck boards to joists. For deck framing, structural wood screws such as Simpson SDS 1.5” screws work with joist and stringer hangers, as well as post/beam brackets.

Can I use a nail gun for decking?

Use a nail gun primarily for affixing the decking and trim (or fascia) boards, with stainless-steel-finish nails to avoid rusting. For adequate penetration, nails should be one-and-a-half inches longer than the boards.

How do you fix a squeaky deck board?

One of the simplest ways to fix a creak is to tighten the board that is squeaking. For deck boards that are nailed or screwed down from the top, add additional screws or nails where the creak is occurring. This will help hold the board more firmly in place on top of the joists.

Do you need to countersink deck screws?

A good countersink bit is necessary to fasten the wood decking. Tapered bits are preferable. They provide a good “slip hole” through the high-density hardwood decking and a smaller tapered hole in the deck joist or framing. Stainless steel deck screws are the only choice for fastening tropical hardwood decking.

Where do you start laying deck boards?

In most cases, it’s best to start with a full board on the outside edge of the deck and work toward the house so the odd board is less visible. Then measure when you’re 4 to 5 ft. away from the house and adjust the gap sizes to be sure the last board is a consistent width.

What's the difference between wood screws and deck screws?

Deck screws are stronger than wood screws and are often made from copper or stainless steel. Their corrosion-resistant properties make them ideal for outdoor use. On the other hand, wood screws are mostly made from steel and have a flat head as well as an unthreaded shank that make strong joints.

Can you put deck boards tight together?

Keep the butt ends as tight as possible when installing wood decking. This rule does NOT apply to composite or PVC boards which can have a large thermal expansion; enough to create a serious roller coaster effect down the length of the PVC or composite boards if you DON’T leave room for thermal expansion.

How far should posts be on a deck?

Layout and Footing Locations In general, posts should be spaced no more than 8 feet apart. Some builders position them every 4 feet for a completely rigid frame. The maximum distance between footings is determined by the size of your joist material.

How far should a screw penetrate wood?

This pilot hole should be deep enough so that it penetrates the wood a distance of about one-half to two-thirds of the screw’s threaded length. If you are planning to countersink the screw head, a third hole, equal to the diameter of the head, will be needed at the surface.

What does GRK screws stand for?

oK – stupid question – whats GRK stand for? Green River Killer. BUIC Sep 01, 2007 02:55pm #16. GRK is a brand of high quality screws.

What size screws 2x2?

2×2’s are actually 1.5″ x 1.5″, so the screw should be shorter than that distance plus the thickness of board you are using (1/2″ or 3/4″), taking into account how far countersunk the screw is.

Should you gap pressure treated decking?

Proper deck board spacing should have a 1/8-inch gap after the decking has dried out. If you install your decking using wet boards, pressure-treated decking that has not yet dried out, then you should install them with no gap as a gap will be created as they dry and shrink.

How do decking screws work?

Each hole drilled in the deck boards is counter-sunk into the wood. The screw is then installed below the surface of the wood. Once the screw is fully installed a small wood plug, that’s the same diameter as the hole drilled, is glued into the hole. This hides the fastener completely.

Which side of deck board should face up?

Lay deck boards so that the best-looking face is facing up! Wood is stable when its moisture content is held above 30%(fiber saturation point). As wood dries below 30% it shrinks. Wood shrinks and swells twice as much in the direction parallel to the growth rings as it does perpendicular to the growth rings.

Should deck boards be bark side up or down?

“Bark side down” orients the board so the end grain growth rings curve upward. This creates a crowning warp when wet. As a result, water is shed from the board, as opposed to pooling on it. Also, the exposed board face is heartwood (closer to the tree’s center) versus sapwood, and heartwood is more decay-resistant.

Should deck be Leveld or sloped?

What slope should a deck have? The answer is it depends if the deck is solid or not. A solid deck needs to be sloped between a 1/8″ (3mm) and ¼” (6mm) per foot to encourage water drainage. Decks with properly gapped decking boards require no slope as rain will naturally run off the boards even when level.
