Step 1: Jack up the trailer. Begin by chocking the trailer wheels and jacking up one side of your trailer. … Step 2: Remove the brake access cover. … Step 3: Tighten the adjustment wheel. … Step 4: Stop when the tire begins to drag. … Step 5: Torque and repeat on the other side.

How do you put electric brakes on a trailer?

1. Step 1: Jack up the trailer. Begin by chocking the trailer wheels and jacking up one side of your trailer. …
2. Step 2: Remove the brake access cover. …
3. Step 3: Tighten the adjustment wheel. …
4. Step 4: Stop when the tire begins to drag. …
5. Step 5: Torque and repeat on the other side.

Does a 7 pin trailer plug control brakes?

What is difference between a 4 pin and 7 pin trailer connector? … A 7-Way has these functions and a 12 volt circuit, a circuit for electric trailer brakes (requires a brake controller in the vehicle), and a reverse light or auxiliary power circuit. There are other types of connectors as well.

Can brakes be added to a utility trailer?

You will need several items to add electric brakes to your Carry-On Utility trailer. Starting with the trailer you will need a hub and drum that matches the bearings and seal on your trailer spindle and your wheel bolt pattern. … To finish the trailer you will need wiring and a 7-Way connector.

How much can you tow without trailer brakes?

As a general rule, it is not safe to tow a trailer without trailer brakes that is over 50 feet and 4,000. Whether you can pull a trailer safely without trailer brakes will depend on the size and weight of the trailer and the size of the tow vehicle.

Which axle should trailer brakes be on?

Typically trailers will carry more of their weight on the front of the trailer, so you would want to put the brakes on the front axle as it will most likely carry more weight while braking. Also, when braking, weight will shift forward from the inertia of the stop, so that would put more weight on the front axle.

Do I need brakes on both axles of my trailer?

With all of this in mind, we always recommend adding brakes to both axles of a tandem axle trailer. … When just one axle of a tandem axle trailer is equipped with brakes your tow vehicle is going to be doing a lot of the work when applying the brakes.

What weight do you need trailer brakes?

In California, brakes are required on any trailer coach or camp trailer having a gross weight of 1500 lbs. or more. Usually the braking capacity on tow vehicles is good; however, it may not be good enough to safely stop the several hundred to several thousand additional pounds that your trailer weighs.

Can I tow a trailer without a brake controller?

No, you cannot tow a trailer with electric brakes without a brake controller. A brake controller is an electronic device through which the driver of the towing vehicle can control the braking power of the trailer from inside the vehicle.

Do you need a trailer brake controller?

The answer is, no. Electric trailer brakes do not work without a brake controller. … These are a hydraulic braking system that uses the trailer’s own weight and momentum to actuate the brakes. Unlike electric trailer brakes, they do not require a brake controller or even an electrical connection to the vehicle.

Article first time published on

Can you put brakes on single axle trailer?

Generally, the single axle trailers are wired with a 4 pin plug with no provision for brakes. Talk to a dealer (maybe more than one) to see if you can get a custom built trailer with the brakes you want.

Can a single axle trailer have brakes?

Not only are tandem trailers required to have brakes whereas in most states single axle trailers are not required to have brakes, you have brakes on four wheels instead of two.

What weight trailer do you need electric brakes?

Fitting a suitable brake controller and connection: all trailers of 750kg gross trailer mass (GTM) or more must be fitted with brakes. Electric brakes are the most commonly used and require a brake controller, with appropriate connections to the trailer, to be fitted in the tow vehicle.

Do I need a trailer brake controller if I have a 7 pin connector?

Expert Reply: A factory 7-way trailer connector isn’t all you need to power a trailer’s electric brakes. You still need a brake controller. Some Ford F-150s are equipped with a factory integrated brake controller, which you may have.

How do you know if a trailer has brakes?

To tell if your pop-up camper has brakes just check the tongue of your camper. If your pop-up has brakes, there will be a looped cable coming from a box on the side of the tongue. This looped cable is the brake switch that connects to the towing vehicle and that activates in case of braking.

Do you need electric brakes to tow a car trailer?

For a trailer, caravan or camper that has a weight from 2000kg up to 4500kg, the requirement is to have brakes fitted on all wheels. These are most commonly electric brakes which must have an electric brake controller.

Can I tow without electric brakes?

Can I tow a trailer with electric brakes without an electric brake controller? No. Without an electric brake controller the electric brakes on your trailer will remain inactive.

Do car haulers have brakes?

Every motor vehicle, trailer, or semitrailer must be equipped with brakes that have a braking system arranged so that 1 control device can be used to operate all service brakes. Every trailer of 3,000 lbs. GVWR or more must be equipped with brakes on all wheels.

Can you add brakes to a tandem axle trailer?

Brakes can be installed on only one axle of a tandem axle trailer, however you should first check your state laws to see how many brakes are required for the gross vehicle weight rating (GVWR) of your tandem axle trailer. Some states require a specific number of brakes based on the maximum weight capacity of a trailer.

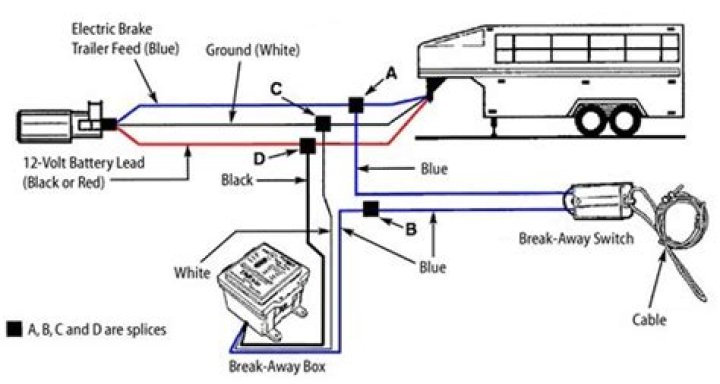

What is the battery for on a trailer with brakes?

They are the ultimate emergency brake. It does this by activating the electric brakes on the trailer. The only catch is, for this to happen you must have fully operational electric brakes. The 12-volt battery must be charged and the switch cable attached to the vehicle for the system to operate properly.

How does a trailer breakaway work?

Your breakaway cable attaches to the brake system on your trailer and then attaches to the back of your tow vehicle. If the trailer ever becomes detached from your vehicle while towing, this cable pulls out the pin attached to the trailer brake, causing them to engage and safely stop your trailer.

Do I need a breakaway cable on an unbraked trailer?

Unbraked Trailer Secondary Coupling Breakaway Cable – MP4987B. This tends to be fixed under one of the bolts that hold your unbraked coupling to the drawbar or a-frame of your trailer. … This is a legal requirement on all unbraked trailers. This must NOT be fitted to a braked trailer.

How do I know what axles my trailer has?

If you bought a company-made trailer (as opposed to building one yourself from a kit) there should be a tag with the VIN, weight and capacities all there for you. You should find it on the driver’s side of the trailer. A second way to determine the size axle you need is to measure the diameter of your existing axle.

What is a torsion axle?

Torsion axles are made up of thick rubber cords concealed in the axle’s tubing. As each wheel moves up and down, the rubber cords compress offering an even wheel suspension for a smooth ride. Each wheel acts independently, moving and absorbing shocks.

What are the basic parts of a drum brake?

• Backing Plate. The backing plate is one of the drum brake components in the form of a metal-based band which is relatively thin and is placed on the back of the drum brake system. …
• Wheel Cylinders. …
• Brake Shoes and Pads. …
• Return Spring. …
• Brake Shoe Holder. …
• Brake Shoe Adjuster. …
• Parking Brake Lever. …
• Drum Brake.

Are tow dollies required to have brakes?

In order to become compliant when driving with a tow dolly, you will need a dolly with brakes. … If you are going to tow anything at or over 3,000 GVWR, you will be required to have brakes on your tow dolly in all 50 states, the District of Columbia, and Canada.

Do you need brakes when flat towing?

By law most states now require supplemental braking in the vehicle being flat towed. … It may not seem like the weight of the vehicle would affect the braking but in an emergency situation where inches matter you’ll need all the help you can get.

How do I know if my truck has a brake controller?

How Do I Know If My Truck Has a Brake Controller? Most trucks come with a brake controller installed by the manufacture (OEM). The brake controller usually has an image of a trailer and you would see a dial and two small knobs.

How does a brake controller know if a trailer is connected?

Aftermarket brake controllers send a small amount of voltage along the brake output wire, if a trailer is connected, the magnets in the brake assemblies will create a power draw. This power draw tells the controller that a trailer is connected.

What is the difference between a single axle and a tandem axle?

The number of axles mounted underneath a trailer determines whether it is a single axle or double axle. A single axle trailer has a one set of wheels; a tandem axle has two sets of wheels.
