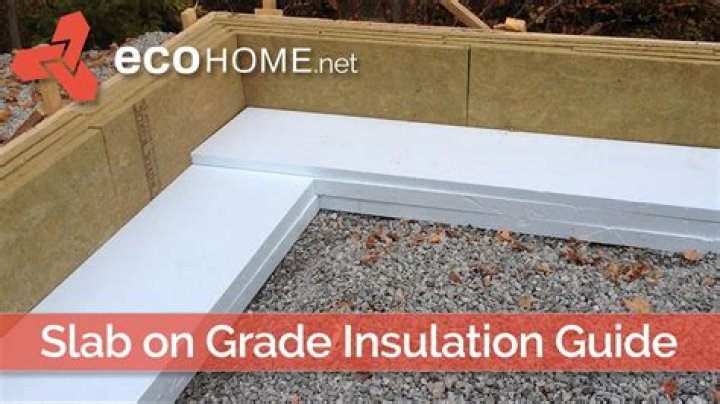

Slab-on-grade insulation should extend downward from the top of the slab on either the outside or inside of the foundation wall. When a slab is independent from a perimeter foundation wall, insulation may be installed either on the exterior of the foundation wall or between the foundation wall and the slab.

Should slab on grade be insulated?

A properly designed insulated, slab-on-grade foundation has been proven to provide trouble-free, comfortable construction for a variety of residential and non-residential buildings. … The action of frost, soil pressures and hydrostatic water pressures can all result in water leakage into conventional foundations.

When might you require insulation beneath a slab on grade?

The reason we build basements and stay 4 to 5 feet below grade is to avoid frost heave, using dirt to insulate. With a slab-on-grade, the difference is you use ‘insulation’ to insulate, rather than dirt. This effectively moves the frost line from 4 feet down to just 6 inches, problem solved.

How do you insulate an exterior concrete slab?

Best practice is to install a semi-horizontal piece of rigid insulation on an angle around the perimeter of the building below the topsoil. This “wing” helps maintain the heat buildup under the insulation and essentially makes the frost go around the wing, and the foundation wall is that much more protected.

How do you insulate a concrete slab floor?

There are two ways to handle insulating concrete floors. You can attach wood sleepers to the floor, fill the gaps with rigid-foam insulation, and then apply a subfloor and finish flooring. Or, as demonstrated here, you can cover the slab with rigid-foam insulation, add two layers of plywood, and then add the.

What type of insulation goes under concrete slab?

Thick rigid foam board is a suitable insulation to put under concrete slabs. Foam insulation has a higher R-value per inch than most other insulation materials, including fiberglass and cellulose. Even 1- or 2-inch-thick foam board will provide good insulation.

How thick should slab insulation be?

Standard industry practice has been to install 1.5-inch (38 mm) R-7.5 insulation.

Is slab on grade good?

There are good reasons for building or buying a house on a slab, such as cost savings and less risk of damage in certain instances. The disadvantages include that heating and cooling units may have to be installed on the ground floor, which takes up living space. There is also a potential for cracks.

How do you insulate an existing slab foundation?

Clean the exposed slab edge and apply damp proofing as a capillary break. Install non-moisture-sensitive rigid foam board insulation (such as extruded polystyrene [XPS] or mineral wool) along the edge of the slab of a slab-on-grade foundation to meet or exceed the insulation R-value required by code.

How do I keep my concrete floor from getting cold?

When installing insulation on top of the concrete floor, the most common method of installation is as follows. Lay the damp proof membrane onto the concrete, followed by the insulation. Then lay moisture-resistant chipboard, or a concrete screed to the top, which can then be covered by the flooring to finish.

Article first time published on

How do you insulate before pouring concrete?

1. Excavate the area under the slab to 12 inches below the planned level of the top of the slab. …
2. Place 4 inches of gravel in the excavation. …
3. Lay a layer of 6 mm plastic across the floor. …
4. Place 2-inch thick pieces of rigid Styrofoam insulation on top of the plastic sheeting.

Is it worth insulating a concrete floor?

Generally speaking, you only need to insulate the ground floor. If you’re on an upper floor, you don’t usually need to insulate your floor space. However, you should consider insulating any floors that are above unheated spaces such as garages, as you could be losing a lot of heat through those.

How do you protect slab edge insulation?

Another technique is to use fiber-reinforced cement board with a stucco coating and metal flashing under the wall. An EPDM membrane is a durable alternative for slab-edge insulation protection.

How much foam goes under a slab?

ASTM standards dictate a minimum of 10 PSI for under slab rigid insulation, and 15 is the most common.

How much does slab insulation cost?

SLAB-ON-GRADE FLOORS In climates with mild winters, slab insulation in a typical 1,800 square-foot home would save $50 to $60 annually. R-10 slab insulation for an 1,800 square-foot home would typically cost $300 to $600 to install.

Is it worth putting foam under concrete?

Concrete contractors learned that a layer of poly helps to keep a slab dry, because it stops upward vapor diffusion from the soil. … The foam layer isolates the room-temperature slab from the cold soil under the slab.

How thick should concrete floor insulation be?

A 50mm thick layer of proprietary floor slab insulation (e.g. 50mm Kingspan, Celotex or similar) is usually enough to reach and maintain the target U value but this should be checked with an architect first. Insulation sheets should be laid tightly together with the joints staggered to avoid movement.

Do you need a vapor barrier under concrete?

The concrete foundation of your building may feel rock-solid. Concrete, however, is, in fact, a porous material. … That’s why nearly every expert in the concrete industry recommends a below-slab vapor barrier to stop the vapor drive of water upward and into your building envelope.

Are slab foundations cold?

That’s because concrete slabs would crack if continually exposed to temperatures below 0 (and certainly as low low as -15 or -30 degrees.) … Geography and weather conditions dictate the type of foundation that is best for you. Because of area weather, they often have issues that require solutions.

Can water pipes freeze in a slab foundation?

Yes, the pipes underneath your house can freeze if the house is built on a slab foundation. Unlike basement-type or crawlspace-type foundations, a slab foundation makes accessing utilities difficult because the utilities will be encased in concrete.

Are homes built on slabs bad?

Disadvantages of a concrete slab Slab-built homes are sometimes considered cheap and can negatively impact the resale value of the house. It can also be difficult to access heating, air conditioning and other systems with a slab. If repairs are needed underneath the house, it can be a challenge to gain access.

Is slab-on-grade cheaper than basement?

Slab foundations on average are about $10,000 cheaper than most crawl spaces. Slabs are much cheaper if a crawl space or basement must be carved out of solid rock, which can be very expensive. Slab foundations make it less likely that radon gas will leak into the house.

How do I keep my feet warm on concrete?

1. Good Flooring Finish.
2. Insulate Before You Lay.
3. Off Cut Carpet.
4. Add A Rug Or Mat.
5. Raised Floor.
6. Heated Floors.
7. Thicker Socks & Footwear.
8. Perception.

What can you put on a concrete floor to make it warmer?

In short, the way to heat up a concrete garage is through smart insulation. Insulation the walls, door, and ceiling are the most important (heat rises). Covering a concrete garage floor with a more thermally conductive material (epoxy/rubber/carpet) can also help greatly.

What is the best floor insulation?

EPS sheets, fully known as expanded polystyrene sheets, are one of the best floor insulation materials. They are easy to install and they have a high insulation value. Insulation boards have to be fixed on an even ground and they are pressure-resistant, so the floor won’t crack or collapse.

How do you insulate a garage slab?

Steps to Insulate a Garage Floor Start by covering the floor with a vapor barrier. Then, go for polyethylene which is a great moisture barrier. Then lay the sheet of rigid foam insulation over the vapor barrier. Using compression-grade rigid foam panels is preferable.

Why is styrofoam used in concrete slab?

EPS is a cellular material, and is essentially 98 per cent air, creating a versatile building material with many advantages including being light weight, strong, durable and economical. … This is to stabilise the slab beneath the building.
