You can cut a slight angle at the bottom of the posts, or shim the top of the pier with concrete to make a level surface. Just make sure the posts are “perfectly plumb.” Adding patching concrete to the tops of the piers is one option.

How do you align concrete piers?

You can cut a slight angle at the bottom of the posts, or shim the top of the pier with concrete to make a level surface. Just make sure the posts are “perfectly plumb.” Adding patching concrete to the tops of the piers is one option.

How deep should concrete piers be?

Thickness. The minimum thickness for a pier is 8 inches. The minimum thickness for pier footings is 8 inches or 1-1/2 times the length of the footing projection from the pier, whichever is greater.

What is pier footing?

Piers and footings are terms used to describe parts of the concrete foundation built under a structure to support the weight of the building. When a home, commercial building or deck is constructed, the structure must rest on a concrete foundation to prevent the weight of the building from causing the ground to shift.

What is the 3 4 5 rule for squaring corners?

To get a perfectly square corner, you want to aim for a measurement ratio of 3:4:5. In other words, you want a three-foot length on your straight line, a four-foot length on your perpendicular line, and a five-foot length across. If all three measurements are correct, you’ll have a perfectly square corner.

Do you need rebar in concrete piers?

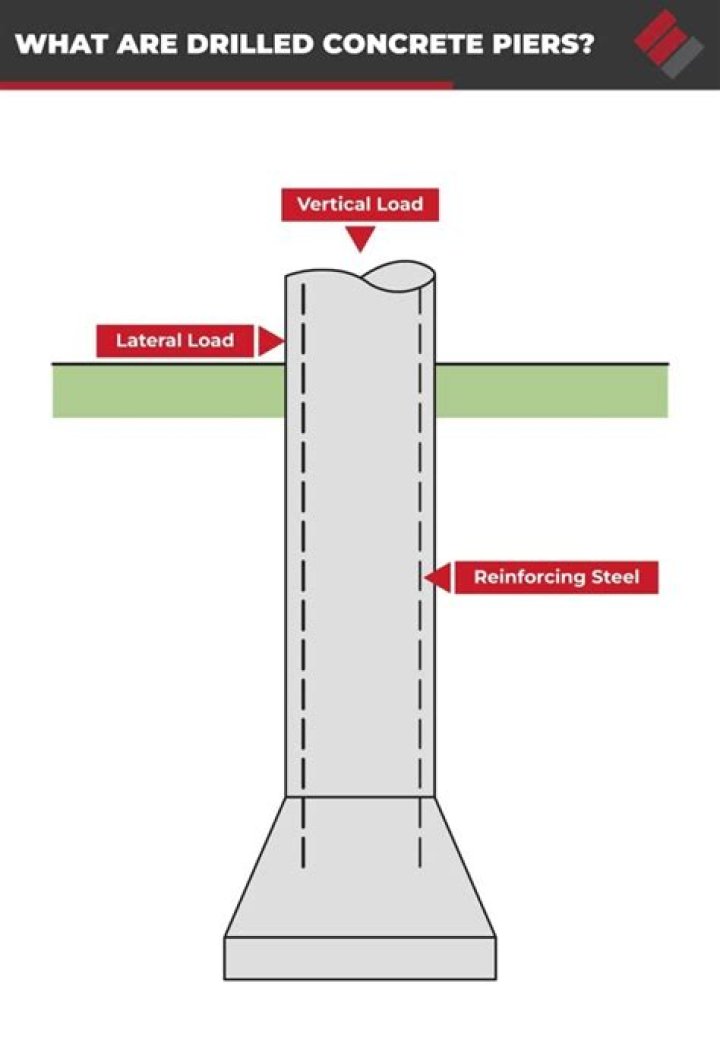

We usually recommend that a minimum of two pieces of #4 rebar be placed vertically in an 8-inch-diameter concrete pier supporting a structure. … The rebar provides the tensile strength needed to resist lateral stresses that can be applied to a concrete pier by ground movement, freeze cycles, and wind loads.

How do you know if a foundation is square?

If the corners of your foundation stray too far from right angles, then beams, joists, and other structural supports will fit together only loosely—or not at all. A corner with a right angle is known as perfectly “square.”

What is the difference between a pier and a pile?

Pier foundation consists of cylindrical columns to support and transfer large superimposed loads to firm strata. Piles are driven through the overburden soils into the load-bearing strata.

What is the purpose of a sonotube?

Sonotube concrete forms stand strong as the most economical way to create round columns for buildings, entryways, structural columns, light posts and other commercial and residential structures.

What is a concrete pier foundation?

Concrete piers are pressed, dense concrete pillars that are solid enough when doing foundation repair to maintain the structure level. … While piers made of concrete are not inexpensive, they cost less than others and work just as well. That’s one of the key reasons they are used by homeowners.

Article first time published on

How long do concrete piers last?

Push piers, helical piers, and polyurethane work magic together. In conclusion – the foundation repair will last as long as the structure, over 150 years – well beyond your lifetime.

How many concrete piers do I need?

An 8 ft x 12 ft shed will need 6 piers, 3 per long side. What is this? Typically, the span between two piers is based on the dimensions of the beams and the joists. A double 2×8 beam should be supported every 4 to 6 feet.

How tall can a concrete pier be?

Piers between 36 and 80 inches (914 and 2032 mm) in height and all corner piers greater than 24 inches (610 mm) in height shall be at least 16 inches by 16 inches (406 mm by 406 mm) consisting of interlocking masonry units and shall be fully capped with minimum 4-inch (102 mm) solid masonry units or equivalent.

How do you dig holes quickly?

1. Preparation. If you want to avoid unnecessary exertion and time wasting, try to avoid digging in hard rocky and sandy soils if possible. …
2. Using a shovel. …
3. Using a manual post hole digger. …
4. Using a powered post hole digger. …
5. Using a mini excavator or skid steer. …
6. Post hole digger hire.

Can you pour a footing without forms?

The section on footings in Formwork for Concrete (ACI SP-4) says that when fabricated forms are omitted entirely and concrete is cast directly against the excavation, larger tolerances may apply.

How do you set up a pier and beam foundation?

1. Sink pier. Sink a wooden pier – usually cedar – into the ground until it hits solid rock.
2. Add base. Add a concrete base to the pier to prevent it from moving.
3. Add beams. Extend beams from each pier, connecting to the joists of the home.
4. Set floor.

How much does a foundation pier cost?

FOUNDATION REPAIR COST BREAKDOWN Hydraulic piers are a long-term solution for stabilizing foundations that have shifted. Each pier costs around $1,340 and repairs for an average-size home require 8 to 10 piers. This puts the cost for this method between $10,720 and $13,400.

How much weight can concrete piers hold?

The number and size of the piers depends on how much weight the underlying soil can hold. The standard design load in the International Residential Code assumes a 40-pound live load; dead load is commonly calculated at between 10 and 15 pounds per square foot, depending on the materials used for construction.

How deep should pier pilings be?

While a 4-6ft deep hole is enough for sandy bottoms, boat lift pilings need a 6-8ft hole.

What can I use for dock posts?

• Pilings (Round & Square)
• Pile Caps.
• Piling Protection & Repair.
• Stringers.
• Timber Braces.
• Decking.
• Marine Hardware for Docks.
• Poly Coated Wood Components.

How do you set a pier post in water?

The process is done by placing the posts on the lake bed bottom and pound them down with a sledge hammer to a depth of at least 2 feet. Aim the jet at the bottom of the post to jet out the sand and water. As the sand is removed, the post will sink deeper. Use heavy-duty PVC pipe to form concrete posts.

Does 12 16 and 20 make a right triangle?

First note that 12 16 and 20 are all all multiples of th the 3 4 5 triangle. Thus we know that 12²+16²=20². This is a right angle triangle.

How does the 9 12 15 method of squaring a foundation work?

You can increase the accuracy of your square by using longer lines and measure using 6-8-10 or 9-12-15. The rule is a basic rule of geometry called the Pythagorean Theorem. A squared plus B squared equals C squared, thus 3*3 + 4*4 = 5*5 (9+16=25).

How do you square up concrete forms?

Measure one side of your form and make a mark exactly 3 feet from the corner. Measure the opposing side of the same corner and make a mark exactly 4 feet from the corner. Measure the diagonal distance between the two marks. If the distance is exactly 5 feet, then the corner is square.

How do I make sure my deck footings are square?

1. Mark the wall. For accuracy, use a 6, 8, 10 triangle. Mark the wall at 8 ft. from the string.
2. Mark the string. Being careful not to stretch it, mark the string at 6 ft. from the wall.
3. Verify a square corner. Pull a tape from the 8-ft. mark on the foundation to the 6-ft. mark on the string.

What is a pier block?

Above-ground deck piers are precast, tapered concrete blocks with a wide base that are intended to rest directly on the ground or a concrete base. When constructing a deck in an area that receives minor amounts to no frost, these piers often serve as suitable deck footings.

How much does a concrete pier block weight?

Block weight around 50 pounds each and are notched at the top to accommodate floor joist. Easy to level with gravel underneath them.
