As the minimum width required for chimneys is at 30 inches, the cricket— in this case— must be 7.5 inches tall.

How tall should a chimney cricket be?

As the minimum width required for chimneys is at 30 inches, the cricket— in this case— must be 7.5 inches tall.

Are chimney crickets code?

ROOF SLOPEH3:121/8 of W

What size chimney needs a cricket?

Starting in 2012, the IBC (International Building Code) made it a code that chimneys over 30 inches wide must have a cricket installed perpendicular to the slope of the roof. If you have an older roof, you might not have a cricket installed.

How much does it cost to install a chimney cricket?

How much does it cost to install a roof cricket on a chimney? Installation costs for crickets typically range from $3000-$6000. The price will vary depending on the chimney size, roof materials, accessibility, and labor costs.

What is counter flashing on a roof?

Counterflashing – Formed metal or elastomeric sheeting secured on or into a wall, curb, pipe, rooftop unit, or other surface to cover and protect the upper edge of a base flashing and its associated fasteners.

Do all chimneys need a cricket?

Not every chimney needs a cricket. If your chimney is 30 inches or more wide, the NFPA 211 Standards and the International Residential Code state that a cricket must be constructed to certain specifications. A properly-constructed cricket keeps water away from the chimney by directing it down the sides of the roof.

How big should a roof cricket be?

A roof with a 12:12 roof slope should have a cricket that is at least half as tall as the width of the chimney or other protrusion. For a roof slope of 3:12, the cricket needs to be 1/8 the width of the protrusion.

What slope should a roof cricket be?

Typically, the cricket slope is double the primary slope whether a sloped deck or a tapered system. This means that a sloped deck at 1/4″ foot will have 1/2″ foot sloped crickets. This has been the industry norm and is considered good roofing practice.

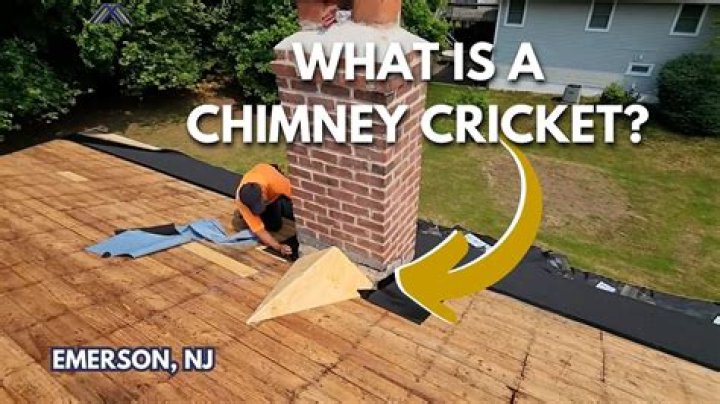

What is a chimney cricket?

According to the National Association of Certified Home Inspectors (NACHI), a chimney cricket is a small peaked roof which is installed on the back side of your chimney to deflect water and debris from your chimney.

Article first time published on

How do you divert water out of a chimney?

What is a chimney cricket? A cricket is a tent-shaped piece of metal, but it is often covered in roofing material and sealed with additional flashing that is placed at the high side of your chimney. The cricket helps to divert water away from your chimney’s base and down the sides of your roof.

What's the difference between flashing and counter flashing?

In contrast to step flashing, the next layer is installed in a continuous strip. It sits on top of the finished roof and covers the step flashing. This final layer is called counter, cover or cap flashing and commonly consists of aluminum, galvanized steel, copper, tin or even plastic.

What is chimney flashing?

Chimney flashing is a type of roof flashing that creates a waterproof seal to protect your chimney and roof from water damage and penetration. … Counter or cap flashing is also an L-shaped metal piece, but it is designed to cover the step flashing and embedded into a groove cut in the chimney brickwork.

Why are they called Crickets?

Derivation of the name of “cricket” In the earliest definite reference, it was spelled creckett. The name may have been derived from the Middle Dutch krick(-e), meaning a stick; or the Old English cricc or cryce meaning a crutch or staff, or the French word criquet meaning a wooden post.

What is a cricket in framing?

The term “cricket” originates from the construction industry. It describes a wooden, framed-out, triangular structure that’s installed over top of the already existing flat or pitched roof. It’s designed to direct water away from areas of the roof that are susceptible to leaks because of their sharp change of angles.

Does chimney flashing go over or under shingles?

Flashing should overlap the roof-covering material, but on asphalt shingle roofs, for aesthetic reasons, the part of the headwall flashing that extends down over asphalt shingles is often covered with a course of shingle tabs.

What is drip edge?

Drip edge is metal flashing installed at the edges of the roof to keep water away from your fascia and from getting underneath your roofing components. If your roof doesn’t have drip edge, water gets behind your gutters and rots out both your fascia board and roof decking.

Does a chimney need counter flashing?

On a chimney, flashing is required at the bottom, the sides and the top. Each of these ideally would have a base (step if it’s on the sides) flashing and a cap (counter) flashing; however, bottom flashings and top flashings (where there is no saddle) often are one piece.

How should a chimney be built?

When building the chimney you should always work from the ground upward, which usually means you will start the project on top of the fireplace, if the chimney’s purpose is venting a fireplace. Make sure you are building the chimney on a reinforced concrete pad.

How do you calculate the slope of a cricket roof?

1. Cricket Valley Slope =
2. Rise is the roof surface slope x 1/2 the cricket width (C to E)
3. Run is the length of cricket valley (C to A)
4. Roof Surface Slope.
5. Cricket Width.
6. Cricket Length.
7. Cricket Panel Slope.
8. Cricket Valley Slope.

What is a cricket drain?

Crickets, also known as saddles, are structures built between roof drainage points to move water laterally across the roof, diverting it to the drainage points. Properly designed, they virtually eliminate ponding (see Photo 1). … If the drainage points are next to a wall, the configuration shown would be used.

What are roof crickets made of?

Normally, it is in the same pitch as the roof but not all the time. Crickets are usually made out of metal flashing, however, larger ones are made out of stainless steel, shingles, or even aluminum so it can serve the purpose of reflecting back heat, or even being extra resistant to the effects of rusting.

Are roof crickets bad?

Improper cricket design can result in a structure that is too small or without the proper slope, resulting in poor water diversion, contributing to water pooling and ice dam creation, which in turn create leaks and damage to the roof surface and underlying structure.

What is the difference between a saddle and a cricket?

According to Wikipedia “A cricket or saddle is a ridge structure designed to divert water on a roof around the high side of a chimney or the transition from one roof area to another, the cricket is normally the same pitch as the rest of the roof, but not always.” This solution acts like a mini roof on the side of the …

Do all roof valleys need flashing?

Closed valleys aren’t required to have metal flashing, but they should have additional underlayment lining the valley, preferably a couple layers of roll roofing. You can usually see whether this has been done by looking carefully at the bottom edge of the valley.

How do I protect my chimney from weather?

Invest in a Chimney Cap A chimney cap is an affordable investment in your chimney that you’ll benefit from for years. The primary purpose of a chimney cap is to prevent rain, sleet, and snow from falling down the chimney. It acts like an umbrella, covering the chimney’s opening.
