Create a mortar mix of three parts sand to one part cement and water. The mix should be of a “wet” workable consistency. Add enough mortar to the area so that, when compacted, it allows enough room for the depth of your granite setts (15-30mm).

What is the mix for laying granite setts?

Create a mortar mix of three parts sand to one part cement and water. The mix should be of a “wet” workable consistency. Add enough mortar to the area so that, when compacted, it allows enough room for the depth of your granite setts (15-30mm).

How do you mix cement for cobblestones?

Mix together one part of sand with one part of cement, to create a smooth, wet consistency that’s easy to work with. Use this mixture in the joints and gaps between the cobble setts, and compress it using your pointing tool.

Can granite setts be cut?

A coursed pattern is very simple to lay. The newly-quarried and sawn stone sett paving now widely available, is cut to accurate rectangles and is ideally suited to being laid in courses.

Can I laying granite setts on sand?

Granite in mainland Europe is generally laid on sand, this is much cheaper than laying in cement but setts may shift over time and occasional maintenance is required. Sand laid granite is also susceptible to ruts if driven over.

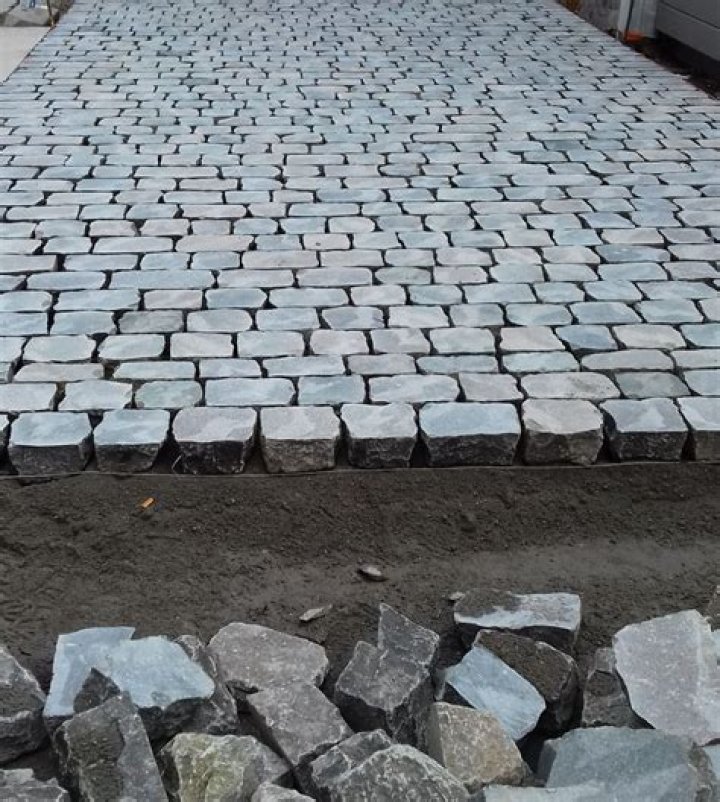

What are granite setts?

A granite sett is also known as a granite block. It is also sometimes known as a Belgian block or a Sampietrini (although this term are refers exclusively to a specific black basalt). Broadly speaking, a granite sett is a square or rectangular quarried stone that is commonly used in paving roads and walkways.

Can I lay setts on sand?

Laying Setts Whether using a dry sand or a wet mortar mix the setts need positioning and individually setting to the required final level. Care should be taken to maintain the correct falls and/or cambers. The most common layout would be a coursed layout.

What is the ratio of sand to cement for paving?

Paving slabs are bedded in a mortar mix with four parts sharp sand to one part cement. Measure your quantities using a shovel or a bucket – for example, four buckets of sand for every one bucket of cement.

How many setts do I need?

Dimensions of sett (mm)How many setts do I need per m²?200 x 10043100 x 10083

What is the mix of sand and cement for pointing?

Standard mix for wall pointing: 5 parts building sand, 1 part cement, add plasticiser to manufacturers instructions. Use maximum amount when mixing by hand. Patio slabs or exposed brickwork, you may need a stronger mix. For example – 3:1 sand / cement.

Article first time published on

What is a strong mortar mix?

Strong Mortar 1:4 mix Used for exposed brickwork. Mix one part cement to 4 parts soft sand. Again, add a small amount of lime or plasticizer to increase the workability.

What is pitch jointing?

The traditional process of pitch jointing is very simple. Once the paving elements have been laid and checked for level/alignment, the joints are partially filled by sweeping-in a suitable clean gravel (no fines), usually 6mm or 10mm, to within around 25mm of the head of the setts or pavement surface.

How do you lay cobble setts?

1. Introduction.
2. Preparation.
3. Sub-grade.
4. Sub-base Course.
5. Base Course.
6. Bedding layer.
7. Alignment.
8. Laying.

How do you lay a cobblestone path?

1. Outline the pathway using either spray paint or a garden hose.
2. Remove landscaping materials or grass inside the path area.
3. Dig out the soil in the pathway to a depth of 6 inches plus the height of the cobblestones. …
4. Fill the pathway with 3 inches of crushed gravel.

How many granite setts are in a tonne?

Approximately 200 setts to a tonne.

How much do granite cobblestones cost?

Granite Cobble CostsZip CodeSq. ft.BasicBetterGranite Cobble – Material Prices$690.00 – $740.00$765.00 – $890.00Granite Cobble – Installation Cost$425.00 – $435.00$450.00 – $465.00Granite Cobble – Total$1115.00 – $1175.00$1215.00 – $1355.00

What are cobbles made of?

Cobbles are large pebbles which have often been rounded by flowing water. They are found on the bed streams where they are gathered. While many stones are quarried and shaped the cobblestone is naturally formed and shaped. The stone usually has dimensions of 2.5-10 inches.

What mix should I use to lay Indian sandstone?

The most widely used technique for installing concrete paving has always been a 10 parts sharp sand: 1 part cement dry mix. Techniques for laying Indian sandstone paving are different, the thickness variation of Indian Sandstone requires it to be laid on a 4 parts sharp sand: 1 part cement semi dry mix.

How thick should mortar be under slabs?

Add a mortar bed The mortar should be damp, not runny. Spread it out and level it with a trowel. The mortar bed needs to be 30-40mm thick and should enable the slabs, when positioned, to sit 6-10mm high.

How can I fix my loose Indian stone?

The only sure-fire fix for wobbly or loose flags is to lift the affected flag(s), break out the bed, put in a new full mortar bed , apply a bond bridge to the underside of the flag to be re-laid, and then put it into place. This method works, every time, no risk of it failing.

Are granite setts porous?

Trident Permeapave is a patented Permeable Block Paving with the same finish and texture as the popular Trident Paviors, designed to manage heavy rainfall with ease.

Are granite setts slippery?

Granite setts have excellent slip characteristics and, due to surface and joint variations, slow up vehicles.

What is the difference between a cobble and a set?

Whilst people often confuse setts and cobbles, the main way in which cobbles differ is that they are rounded as opposed to the square shape of a Sett. … Anyone who has walked on a cobbled beach or a cobblestone path will know that natural cobbles are extremely difficult to walk on.

What is builder sand?

Builders Sand is a coarse washed sand most commonly used as a base for under flagstone or pavers. It will drain very well, but won’t pack in. It also works well for mixing concrete or pipe bedding. It is commonly known as C-33 sand.

Is sharp sand the same as builders sand?

Also known as ‘grit sand’ or ‘concrete sand’, sharp sand is coarser than builders sand thanks to its larger particles. Having a larger grain size means sharp sand is slightly heavier, giving the mortar more strength yet making it less flexible to work with.

Is sharp sand the same as grit sand?

What is sharp sand? Also known as ‘grit sand’ or ‘concrete sand‘, washed sharp sand is more coarse and has larger particles than other construction sands such as builder’s sand, which consists of finer grains. … For example, it is ideal for mixing concrete and is commonly used for floor screeds and laying paving courses.

What type of cement is used for pointing?

A typical mortar mix for Repointing purposes, for use in an area subject to normal weather conditions, would comprise 1 part Portland Cement, 1 part Lime and 5½ parts Sand.

What is the best mortar mix for pointing?

Mortar Mix for Pointing The preferable mortar mix ratio for pointing is 1-part mortar and either 4 or 5 parts building sand. The ratio will vary depending on what exactly is being pointed. For bricklaying, you will usually want a 1:4 ratio with plasticiser added to the mixture.

How do you make mortar from scratch?

Mix mortar from scratch by blending one part Portland cement to three parts sand. If you use a ready mortar mix, the dry ingredients are already combined. Add one part water to three or four parts mix, depending on the type of job. Stir until mortar is smooth, typically 5-10 minutes.

Does adding more cement make concrete stronger?

To make the concrete stronger, add more cement or less sand. The closer you bring the ratio to an even one-to-one of sand to cement, the stronger the rating becomes.

What happens if you put too much cement in mortar?

Since major force transfer in a concrete/mortar matrix is from sand-sand interaction, excess cement will turn the mortar very brittle since cement particles cannot transfer normal contact force – they are good at providing shear strength.
