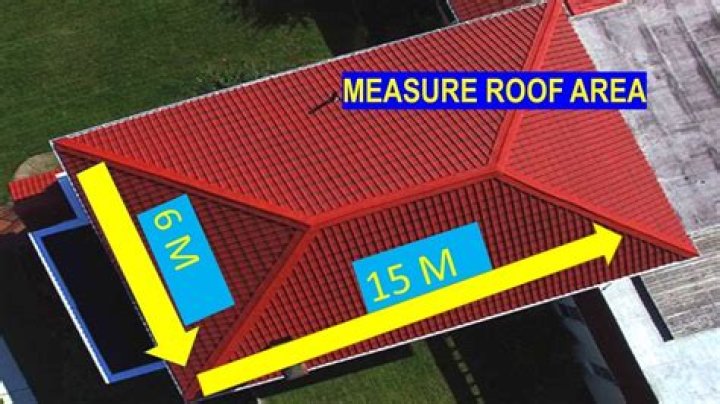

Don’t measure each face if the hip roof is square; just measure one face and multiply the area by 4 to find the measurement of the entire roof. For parallelogram-shaped faces, measure one face of each size and multiply the areas of each by 2 to find the total measurement.

What is the angle of a hip rafter?

King Commons and Ridge The last common rafters that support the ridge are called king commons (see illustration). … The hip rafter intersects this 90° angle at a 45° angle and runs diagonally down to the building corner.

How do you measure your hip pitch?

Hip and Valley Factor Formula For a roof slope expressed as “X-in-12” (rise-in-run), the hip and valley factor is determined by finding the square root of ((rise/run)² + 2) for the slope of the adjacent roof sections. Divide the rise by the run (the run is 12). Square the result.

What is a hip backing bevel?

The dihedral angle triangle for the hip/valley rafter backing angles is perpendicular to the hip/valley rafter in elevation. … You only use the hip rafter backing angle to edge bevel hip/valley rafters. Hip/Valley Rafters are backed out to align with the roof planes.

What is the purpose of backing a hip rafter?

To lay out the cheek cut, you must then add and subtract “A” perpendicular to the true length plumb line. “Backing,” or beveling, the rafter ensures that the roof sheathing will rest flush on the hip. Use the framing square and the hip rafter pitch to determine the line of backing, as shown.

What are hip rafters?

Definition of hip rafter : the rafter extending from the wall plate to the ridge and forming the angle of a hip roof.

What Is Hip backing?

Backing and dropping are to allow the hip to “plane in” with the common rafters on each side.

Is a valley rafter the same as a hip rafter?

A hip rafter is called for only when framing a hip roof, but a valley rafter is needed on both hip and gable roofs whenever roof planes intersect. … The total rise of hip and valley rafters is the same as that of common rafters. They are also the same thickness as common rafters.

How do I figure out the size of my roof?

Square Footage of Your Roof: So a trick to estimate your roof size is to multiply the square footage of your house by 1.5 (ex: A 2,000 square foot house will have a roof that is approximately 3,000 square feet).

What is a bevel in roofing?

The angle at which the notch is cut is called the seat cut. The top angle or bevel is called the plumb cut. Once the bevels have been determined, a sliding bevel can be set to the angle required or in some cases, a piece of plywood can be cut to each bevel and used as a template for all the other rafters.

Article first time published on

What is a hip roof vs a gable roof?

The main difference between a hip and gable roof are the slopes on its sides. On a hipped roof, all sides slope downward to the home’s walls. Gable roofs only have two triangle-shaped slopes that extend from the bottom of the roof’s eaves to the peak of its ridge.

How do you measure a rafter?

Note that rafter length is measured from the tip of a plumb cut at the top end of the rafter (ridge cut) to the building line (shown as a dotted red line in the Section/Elevation below). Rafter length does not include the rafter overhang.

What is my roof pitch?

The angle, or pitch, of a roof is calculated by the number of inches it rises vertically for every 12 inches it extends horizontally. For example, a roof that rises 6 inches for every 12 inches of horizontal run has a 6-in-12 pitch.

What is standard roof pitch?

Conventional slope roofs are most common with residential roofs. This means the slope has a pitch between 4/12 and 9/12 on most homes. Roofs with a pitch exceeding 9/12 are called steep slope roofs.

How many squares does it take to roof a 2000 square foot home?

If your roof is 2,000 sq. feet, then you will have 20 squares. (2,000 / 100 = 20).
