Brake chamber size can be determined by measuring the diameter of the clamp used to hold it together or by locating the size markings on the brake chamber. The most common brake chamber size is 30. However, there are vehicles using both smaller and larger sizes.

How can you tell if your brake chamber is a long or short stroke?

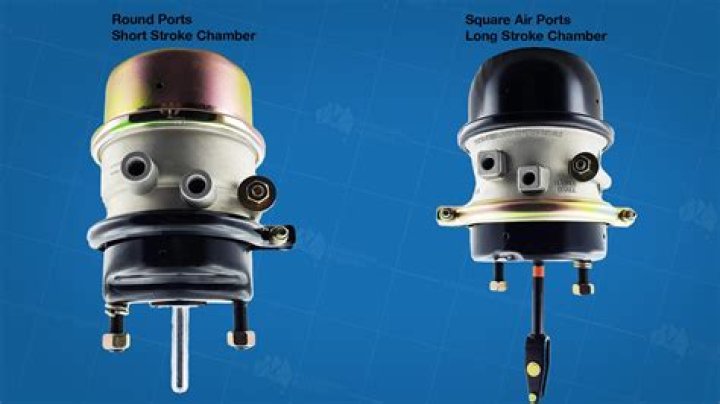

The type of brake chamber, in terms of its size, for all brake chambers is determined by using a caliper or a tool (chambermate) to measure the outside diameter. The type of brake chamber, in terms of its stroke, is determined by looking for visual identifiers that indicate it is a long stroke chamber.

What is the acceptable stroke length regardless of chamber size?

3. Measure the distance between the chalk mark and the face of the brake chamber. The distance between the mark on the pushrod and the face of the brake chamber is called the free stroke (½ to ¾ of an inch — 12 to 20 mm is a good range). If this distance is more than ¾ of an inch (20 mm), the brakes need adjustment.

What is a 30/30 brake chamber?

A 30/30 Brake Chamber, also known as an 8 inch brake chamber, is the most common of brake chambers. The top of the chamber is the service side, which will activate when the tractor brake pedal is stepped on. … This holds the brakes.

Can you use a long stroke brake chamber?

long-stroke chambers should never be installed on the same axle. the chamber as it moves closer to its maximum travel position of 2.5 inches. … Therefore, when servicing any truck or trailer equipped with either 2.5-inch-stroke or 3-inch long-stroke chambers, it is crucial that the chambers be replaced “like for like”.

How do brake chambers work?

Air brake chambers are round metal containers, located at each wheel, where compressed air is converted into mechanical force to apply the brakes and stop the vehicle. … The motion of the slack adjuster transfers to the brake assembly, causing the brake shoes or pads to make contact with the brake drum or disc.

What is the minimum brake lining thickness allowed without the truck being put out of service?

An air braked commercial motor vehicle shall not be operated with brake lining/pad thickness less than 6.4 mm (1⁄4 inch) or to the wear indicator if the lining is so marked (measured at the shoe center for drum brakes); or less than 3.2 mm (1⁄8 inch) for disc brakes.

How do trucks check their brakes?

At the brake check area, drivers physically check each of the various components of the air brake system for wear, leaks, or damage. This check includes the air compressor, air drier, brake lines, trailer supply and emergency air hoses, and especially the brake drums and shoes.

When inspecting the brake chambers The driver must look for?

When inspecting the foundation brake components, the driver must check for any that are damaged, missing or malfunctioning; cracked, loose, missing or contaminated brake linings; improper drum contact; and linings that are less than the required thickness.

Which is better short stroke or long stroke?

For any given cubic capacity, an over square engine has to move lesser as it has a wider bore. These engines also have lesser inertial stress which allows them to be equipped with faster valve timing. This lends a short stroke engine, in general, the ability to rev higher than its long stroke counterparts.

Article first time published on

How many brake chambers are there on a tractor and trailer?

An 18-wheeler is usually equipped with 10 brake chambers, 5 axles with a brake chamber on each side.

What is caging a brake chamber?

Caging brakes is only done when an air brake system failure has happened and you need to get your unit to a safe haven only, not normal operation. This procedure releases the spring tension within the brake chamber and will render that wheel with no brakes when completed.

How do you manually release air disc brakes?

Using a 10 mm socket wrench or a ratcheting box wrench on the adapter, turn the adjuster counterclockwise – a clicking noise indicates that the tappets are “backing off,” or loosening the pads’ grip on the brake rotor – until it stops. A chain connects the pair of tappets to extend and retract them simultaneously.

What should the torque be on a brake chamber clamping ring?

MGM Brakes recommends 30-35 Lbs-Ft. torque on clamp hex nuts. Completely exhaust air from both of the chambers when complete.

How do you measure brake shoe lining?

Measure each by placing the flat base of the tire tread depth gauge onto the brake lining and then pushing down on the sliding ruler. Compare the measurements of each rivet in 1/32 inches to determine even or uneven brake shoe wear. For bonded shoe measurements, use a brake lining gauge.

How do you check the brake lining thickness on a heavy vehicle?

1 Apply the parking brake. 2 Move the inspection cover to one side and lift out and pull away the cover at the other end. 3 Brake lining thickness must not be below 8 mm (10 mm for oversize linings). 4 Check the thickness against the indicator line.

When a brake chamber uses only a single chamber it is called a?

– Some 3″ stroke chambers called long stroke. chambers. – Service chamber: when brake chamber uses. only a single chamber. – Dual brake chambers contain spring brake.

How does spring brake chamber work?

A brake chamber that includes both service brake and spring brake sections is called a spring brake chamber. Spring brake chambers apply the brakes by means of a large coil spring that provides enough force to hold the brakes in the applied position, instead of using air to apply the brakes.

What can you check to make sure the spring brakes will come on automatically?

What can you check to see if the spring brakes come on automatically? Step on and off the brake, with the engine off, the parking brake knob should pop out when air pressure falls between 20-40 psi. Get under the vehicle and pull on the spring brakes.

Should brake adjustment be checked often CDL?

20. Should brake adjustment be checked often? Yes, because can get out of adjustment when they are used a lot.
